High Wear Resistant Polyurethane Silk Screen Printing Squeegee

Certification
Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

High Wear Resistant Polyurethane Silk Screen Printing Squeegee

China High Wear Resistant Polyurethane Silk Screen Printing Squeegee supplier
High Wear Resistant Polyurethane Silk Screen Printing Squeegee supplier High Wear Resistant Polyurethane Silk Screen Printing Squeegee supplier High Wear Resistant Polyurethane Silk Screen Printing Squeegee supplier High Wear Resistant Polyurethane Silk Screen Printing Squeegee supplier High Wear Resistant Polyurethane Silk Screen Printing Squeegee supplier

Large Image :  High Wear Resistant Polyurethane Silk Screen Printing Squeegee

Product Details:

Place of Origin: Shanghai China
Brand Name: SPRING
Certification: ISO,CE,ROHS
Model Number: PU

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: www.silk-screen-mesh.com
Packaging Details: 1. in roll with plastic 2.in wooden case or carton 3.as your requirement
Delivery Time: 3-7 Days
Payment Terms: TT/LC/Western Union/paypal/others
Supply Ability: 5000000m/month
Minimum Order Quantity: 1M
Contact Now
Detailed Product Description
Material: PU Feature: Anti-solvent Resistance, Abrasion Resistance
Edge Shape: Straight Square Edge,Double Bevel ,Single Bevel ,Round Printing Type: Screen Printing Machine
Handle: Wooden Handle Main Application: Bottle,canvas,CD / DVD,Printed Circuit Board
Packaging Details: 1. In Roll With Plastic 2.in Wooden Case Or Carton Delivery Time: 3-7Days
Length /Roll: 4 Meter Hardness: 55 Shore A~95 Shore A
Size: Standard And Customized Free Sample: Accepted
Color: Any Color

High Wear Resistant Polyurethane Silk Screen Printing Squeegee

Squeegees are an essential tool for screen printing, probably the most important piece of equipment besides the actual screen! Shanghai SRING cooperated factory is established in 1988, with nearly 20 years experience, our factory imported the advance equipment, raw material from Europe and United states. With more than 300 skilled workers, the squeegees are well established in the world market.

A brief description of polyurethane squeegee blade/PU squeegee blade for silk screen printing

Polyurethane squeegee blade/pu squeegee blade for silk screen printing is used to force the inks through the screen and help achieve an even print, it is important factors in getting sharp, clear Prints.

Polyurethane squeegee blade/pu squeegee blade for silk screen printing will control ink flow through fine, detaile stencils increasing resolution and overall print quality.

A blunt or rounded blade edge will cause the ink to smear because it generally pushes more ink through the mesh.

Some high quality polyurethane squeegee blade/pu squeegee blade for silk screen printing for screen printing are actually made round or 'bull nosed'. For most standard textile screen printing applications a rectangular cut edge squeegee is best.

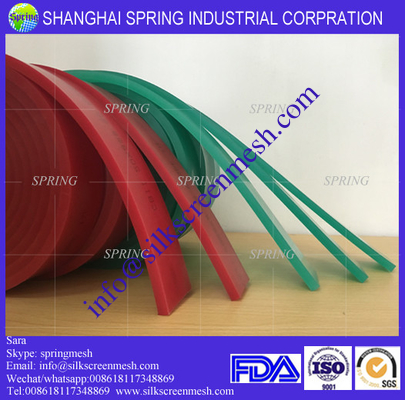

 High Wear Resistant Red Polyurethane Squeegee  High Wear Resistant Polyurethane Squeegee

Hardness scope & Color

Grade Shore Color Common Color Sample
PU1 45-50 Transparent
PU2 50-55 Light Yellow
PU3 55-60 Light Red
PU4 60-65 Red
PU5 65-70 Light Green
PU6 70-75 Green
PU7 75-80 Blue
PU8 80-85 Coffee
PU9 85-90 Light Brown
PU10 90-95 Pink

Hardness Selections

Red, Soft
PU1-PU4
Suitable for low viscosity ink printing, low density or tough surface printing.
Green, Medium
PU5-PU6
High pressure resistance. Suitable for high or low viscosity ink or high density surface printing. Could easily control the ink amount and assure the precision of the printing.
Blue, Hard
PU7-PU10
Highest pressure and strongest ink solvent resistance. Could easily control the ink amount and get the highest quality printing.

Size Selections

Length Width Thickness
2450mm100” 9.5mm-320mm 1mm-30mm
3200mm126”
3660mm144”
4000mm157”

Edge Selection:


Squeegee for Screen Printing Specification:

Material TDI, MDI, PPG, PTMG,PUetc.
Color as requested
Hardness 50-95(Shore A)
Density 1.12-1.25g/cm3
Tensile Strength 25-55Mpa
Tear Strength 85-155KN/M
Elongation 450-650%
Impact Elasticity >20-30%
Tolerance 0.1-0.3mm
Working Temperature 120°C(max)
Surface Finish One side or both

Packages:

1)Printing on the squeegees under request

2)Rolled in plastic bag

3)Small carton box for each roll

4)10 small cartons put into a big carton

5)Put into carton box

6)Special demand can be produced under request

Why us:

1.We believe in providing quality not just first time, but every time.

2.High customer’s satisfaction.

3.Focus on screen printing mesh and filtration cloth since 1983

4.Factory price, Best quality, excellent service( before or after sale)

5.One-stop service can be provided under request to save your time and cost.

6.At least 3-4times inspections before goods shipping out, the sales as the directly person with customers will check the goods not fixed time and goods.

7.Professional and highly motivated staffs.
