Ultrasonic Spot Welding Machine

China Ultrasonic Spot Welding Machine supplier
Ultrasonic Spot Welding Machine supplier Ultrasonic Spot Welding Machine supplier Ultrasonic Spot Welding Machine supplier Ultrasonic Spot Welding Machine supplier Ultrasonic Spot Welding Machine supplier

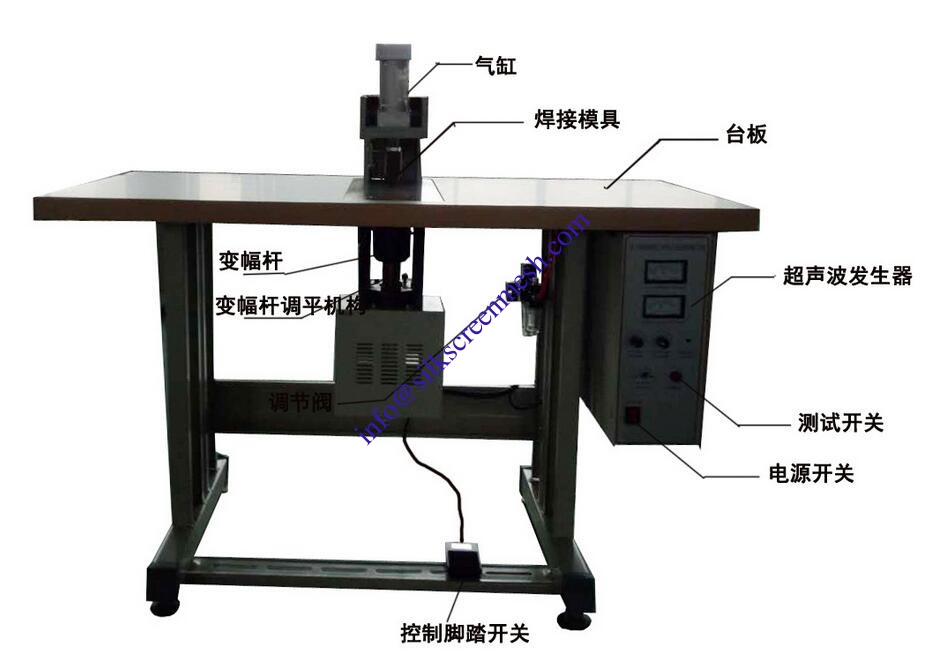

Large Image :  Ultrasonic Spot Welding Machine

Product Details:

Place of Origin: Shanghai
Brand Name: SPRING

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 5-7days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100000
Contact Now
Detailed Product Description

Ultrasonic Spot Welding Machine

The use of ultrasonic welding non-woven principle does not require any auxiliary welding materials, the use of start-up foot switch device control up and down the mold, the welding point beautiful, accurate location, strong and solid.Different patterns also could be designed according to customer needs,width adjustable ,boot to work and run without preheat.

Ultrasonic Spot Welding Machine

Parameters

Commodity Ultrasonic spot welding machine
Model WSD-Down set
Output (W) 1000W
Frequency(KHz) 20KHz
Voltage(V) 220V, 50/60Hz
Roller size Max 4cm*4cm
Working Speed: 1-2seconds one time welding (adjustable)
Air compressor 0.2MPA
Diamension of Packing 127cm*64cm*128cm
Weight: 100Kg



Features:
1. Using high-quality electrical components, reliable quality, long service life. At the same time, reduceing power consumption and saving electricity.
2. The latest machine head design, small and beautiful. Operation good line of sight, suitable for ergonomic.
3 new ultrasonic generator design, automatic tracking, intelligent protection, stable performance.
4.ReasonableThe circuit structure ,the chassis adopts the heat-dissipating circuit layout, the transformer and the heat-radiating components are separated to provide the heat-dissipating efficiency and ensure the continuous operation of the machine for a long time, and the temperature is not lowered by stopping machine due to the too high temperature, improving production efficiency.
5 thick platen to make stitching machine more stable, the machine frame made of high-quality steel material from Shanghai Baosteel, strong load-bearing, solid framework.
6. Foot switch design, more user-friendly control of the machine, easy to operate, easy to learn.
7. The machine uses the international standard mold interface, common mold models in the market can be used to facilitate customer adjustment and replacement of mold and use.
8 using the domestic high-tech ultrasound system, ultrasonic system is stable and durable, strong output, easy maintenance. Ultrasonic frequency 20KHZ, the noise is very small.

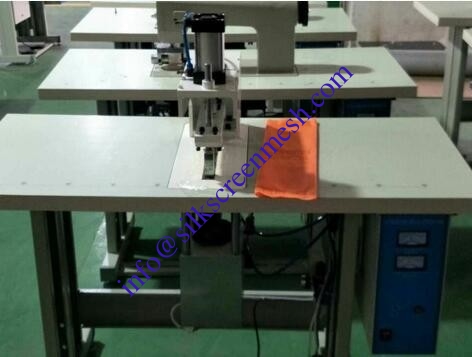

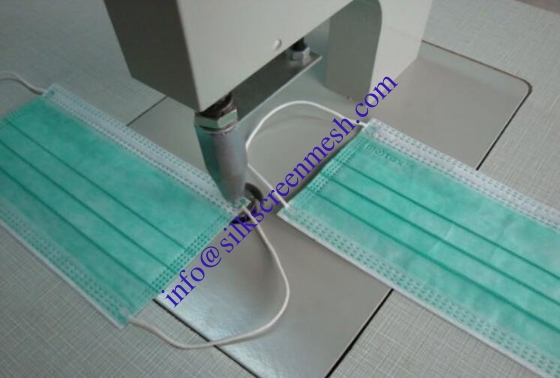

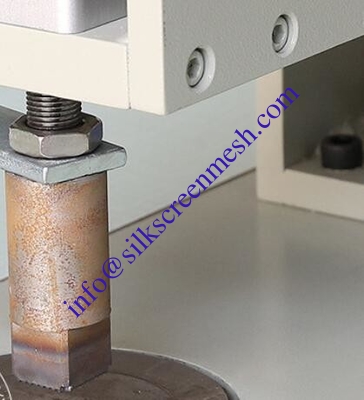

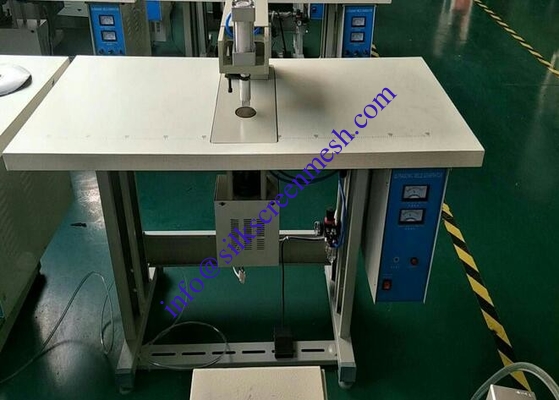

Ultrasonic Spot Welding Machine

Ultrasonic Spot Welding Machine

Ultrasonic Spot Welding Machine

Ultrasonic Spot Welding Machine

Ultrasonic Spot Welding Machine

Ultrasonic Spot Welding Machine
