PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001
Model Number DPP
Minimum Order Quantity 30m
Price www.springscreenmesh.com
Packaging Details Paper tube, plastic bag, carton box, sailcloth
Delivery Time 3-5 Days
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability 500000m/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 100%Polyester Type Efficient
Use Screen Printing Screen Applicable Objects Silk Screen Supplies
Weave Pattern Plain Weave Mesh Number 40-420 (mesh / Inch)
Leave a Message
Product Description

PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing





[net mesh number]

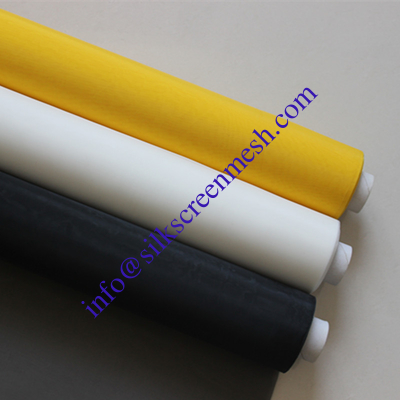

Our company mainly sells 30 mesh to 420 mesh yellow/white screen printing mesh to meet the needs of different customers.

Please rest assured: our products are guaranteed to be standard meshes, we will never take 250 mesh as 300 mesh, 300 mesh as 350 mesh, and then profit. Use a density mirror to measure the mesh. Our products support your testing! I wish you a happy shopping!



★- Normal silk screen printing water-based glue selection 80 mesh -120 mesh mesh yarn also has special glue to choose 40 mesh-60 mesh yarn
★Used water-based ink printing to select 150 mesh-250 mesh mesh
★Using oily ink screen printing, it is necessary to select a mesh with a higher mesh size, and generally choose 200 mesh-300 mesh mesh. If the pattern is particularly precise, choose a higher mesh number.
★ When choosing the mesh, it is mainly related to the pattern and the used slurry. If the high mesh is selected, it is not suitable for the glue.



[Screen Features]

The product uses high-quality polyester filament as raw material, and uses the monofilament silk screen mesh produced by Swiss Sulzer's roving weaving machine. The product has high precision, good stability, complete specifications and affordable price.

The mesh surface is even and flat, the mesh is accurate, can withstand high tension, and the ink is good in the screen printing process. Polyester material, non-toxic and odorless, strong anti-wrinkle, good elasticity, stable size under tension, not easy to deform, resistant to sunlight and friction. It is not moldy, has good electrical insulation, good chemical resistance, weak acid and alkali resistance, can resist strong acid at room temperature, and is not resistant to strong alkali.

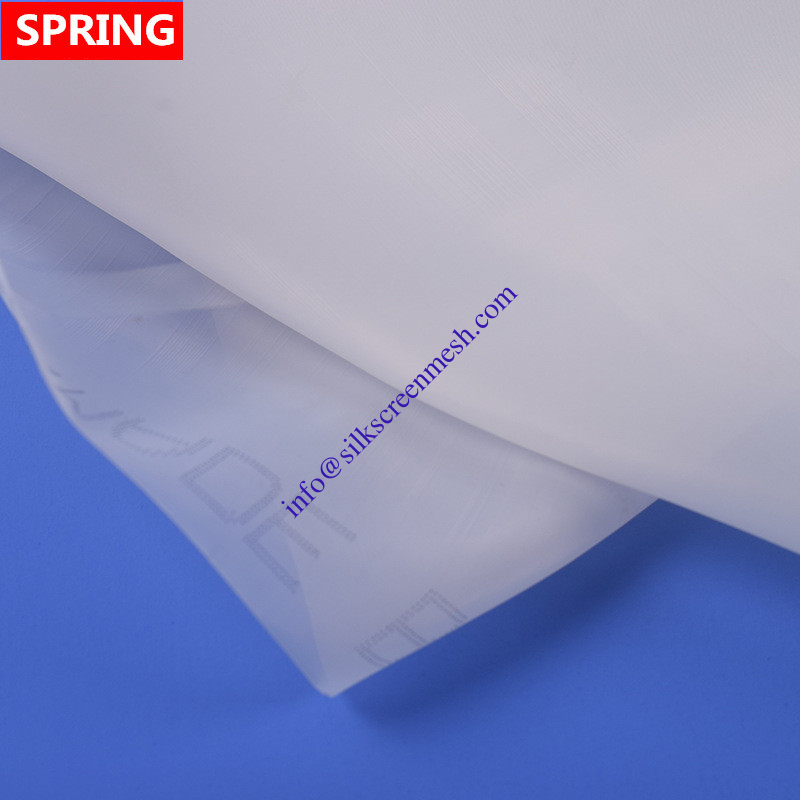

PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing 0

-------------------------------------------------- -------------------------------------------------- -------------------------------------------------- ------------

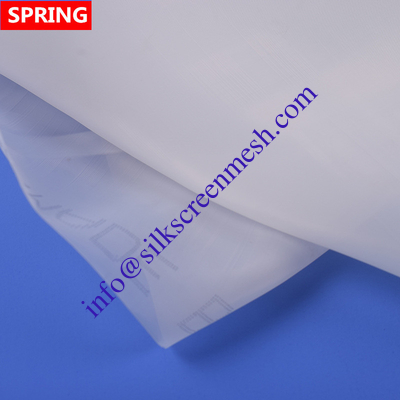

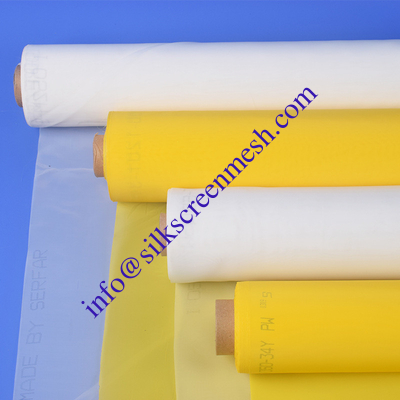

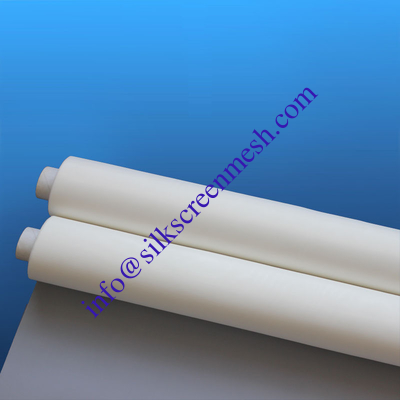

PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing 1PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing 2PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing 3

[Composition of wire mesh]

Wire mesh is a large class of silk fabrics, also known as screens. He is a product made of chemical fiber, silk, wire, etc. through certain textile methods. Screen applications are found in industry, agriculture, technology, and defense. Up to the cutting-edge of science and technology, high-tech industries, down to clothing, food and shelter, cultural life, and the development of the national economy, and the national economy and people's livelihood.

-------------------------------------------------- -------------------------------------------------- -------------------------------------------------- ------------

[Application of wire mesh]

Products are widely used in textile and garment printing, ceramic glass printing, electronic circuit boards, plastic screen printing, metal screen printing, large billboards, silk chemical fiber, industrial filtration, screen printing and other industries. It can not only adapt to general flat printing, but also successfully applied to the surface of curved or molded articles.

Aviation, aerospace, printing, printing and dyeing, electronics, mining, pharmaceutical, food, food processing, chemical.

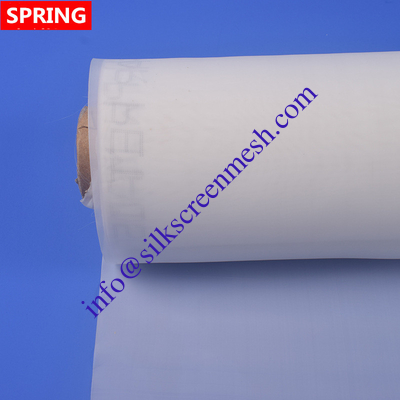

PCB Silk Screen Printing Mesh 100 Mesh - 420 Mesh Plain Weave Screen Printing 4

Polyester specification

100% Polyester Monofilament Mesh
Type Weave Mesh/CM Mesh/inch Wire Dia.
(um)
Mesh Opening(um) Open Area
(%)
Thickness
(um)
PET-7/1080 PW 7 18 350 1080 57 640
PET-8/950 PW 8 20 300 950 58 550
PET-10/800 PW 10 25 200 800 64 380
PET-10/750 PW 10 25 250 750 56 480
PET-12/633 PW 12 30 200 633 58 390
PET-12/583 PW 12 30 250 583 49 480
PET-16/425 PW 16 40 200 425 46 400
PET-20/420 PW 20 50 80 420 71 140
PET-20/400 PW 20 50 100 400 64 185
PET-20/380 PW 20 50 120 380 58 230
PET-20/350 PW 20 50 150 350 49 290
PET-24/337 PW 24 60 80 337 65 150
PET-24/317 PW 24 60 100 317 58 190
PET-24/297 PW 24 60 120 297 51 235
PET-24/267 PW 24 60 150 267 41 295
PET-29/225 PW 29 74 120 225 43 238
PET-32/249 PW 32 80 64 249 63 115
PET-32/233 PW 32 80 80 233 55 150
PET-32/213 PW 32 80 100 213 46 180
PET-34/194 PW 34 86 100 194 44 185
PET-36/178 PW 36 90 100 178 41 190
PET-39/201 PW 39 99 55 201 62 90
PET-39/176 PW 39 99 80 176 47 150
PET-39/156 PW 39 99 100 156 37 195
PET-43/153 PW 43 110 80 153 43 155
PET-47/158 PW 47 120 55 158 55 95
PET-47/142 PW 47 120 71 142 44 130
PET-53/134 PW 53 135 55 134 50 98
PET-53/125 PW 53 135 64 125 44 115
PET-53/118 PW 53 135 71 118 39 133
PET-59/114 PW 59 150 55 114 46 100
PET-59/105 PW 59 150 64 105 39 118
PET-64/101 PW 64 163 55 101 42 102
PET-64/92 PW 64 163 64 92 35 120
PET-72/91 PW 72 183 48 91 43 75
PET-72/84 PW 72 183 55 84 37 105
PET-77/75 PW 77 195 55 75 33 108
PET-80/77 PW 80 203 48 77 38 77
PET-90/63 PW 90 230 48 63 32 80
PET-100/60 PW 100 254 40 60 36 65
PET-110/51 PW 110 280 40 51 31 70
PET-120/48 PW 120 305 34 48 35 63
PET-120/43 PW 120 305 40 43 27 75
PET-140/37 PW 140 355 34 37 27 65
PET-140/36 PW 150 380 31 36 29 52
PET-150/33 PW 150 380 34 33 24 56
PET-165/34 PW 165 420 27 34 31 50
PET-165/30 PW 165 420 31 30 24 58
