Food grade 10-74GG 3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001,ISO14001,FDA,SGS
Model Number JPP
Minimum Order Quantity 30m
Price 1.5-18$/m
Packaging Details Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.210cm*25cm*25cm,185cm*33cm*33cm,55cm*45cm*45cm.
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nylon Type Initial Effect
Use Flour Filtration Applicable Object Flour
Opening Ratio 20-70 (%) Weave Pattern Plain Weave
Monofilament Diameter 0.035-0.55 (mm)
Leave a Message
Product Description

Food grade 10-74GG 3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn

Product information

Name Flour screen
Material Nylon, polyester
Specifications XXX 3-17XXX
Wire diameter XXX 60-140 microns
Mesh XXX 81-300 μm
Specifications GG 10-74GG
Wire diameter GG 120-550 microns
Mesh GG 200-2000 micron
Conventional roll width 42'' 50'' 65'' 68'' 72'' 80'', customizable
Conventional roll length 30-70 meters

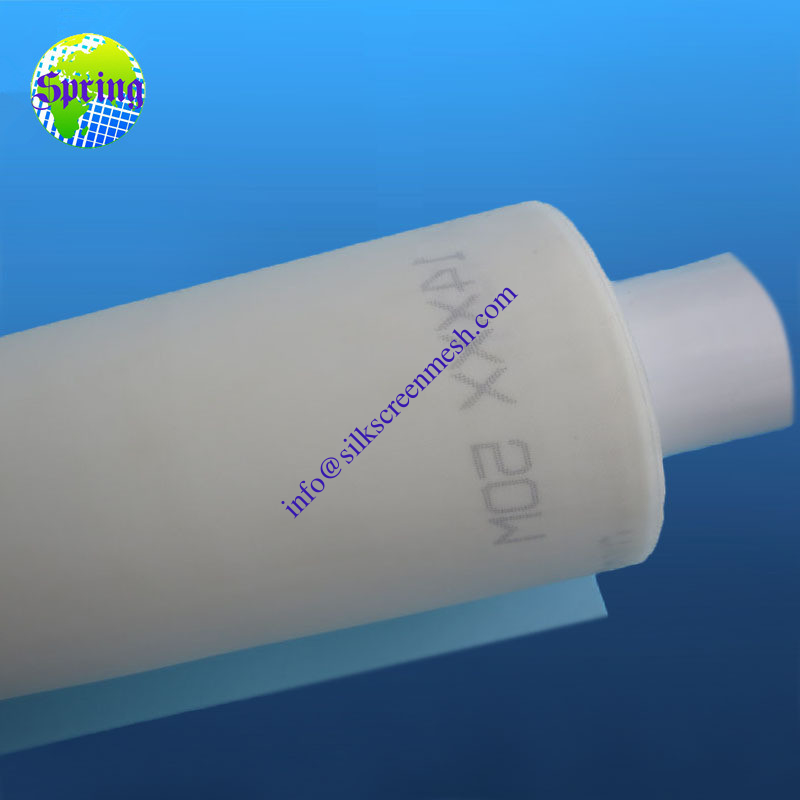

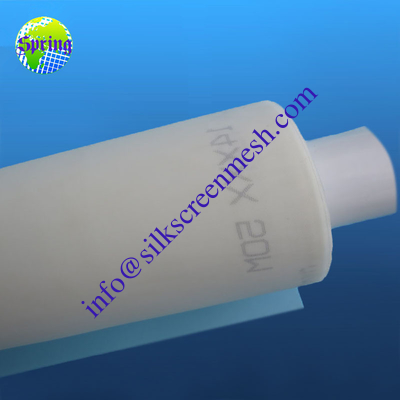

Products real shot

XXX series

Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 0Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 1

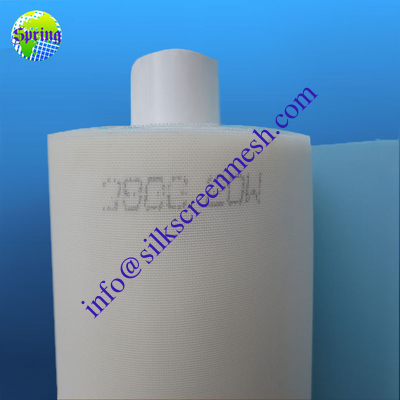

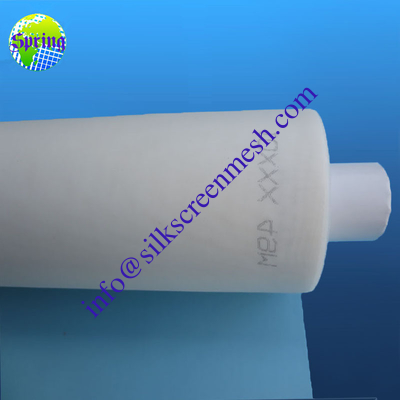

GG series

Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 2Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 3

Deep processing series: cutting, cutting

Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 4Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 5Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 6

Product specifications



Type Mesh Count
(/cm)
Mesh Count
(/inch)
Wire Diameter
(um)
Mesh Opening
(um)
Open Area
(%)
PA-10GG 4.25 11 500 1920 64
PA-12GG 4.5 11 500 1800 61
PA-14GG 5 13 450 1560 61
PA-15GG 5.5 14 400 1450 62
PA-16GG 6 15 400 1320 56
PA-18GG 6.5 17 400 1170 55
PA-19GG 7 17.8 350 1080 57
PA-20GG 7.5 19 325 1030 57
PA-22GG 8 20 300 950 58
PA-23GG 8.3 21 300 900 56
PA-24GG 9 23 280 830 55
PA-26GG 9.5 24 280 790 54
PA-27GG 10.5 27 250 730 55
PA-28GG 10.75 27 250 700 54
PA-30GG 11 28 250 660 52
PA-31GG 11.5 29 250 630 51
PA-32GG 12 30 250 600 50
PA-34GG 13 33 225 560 51
PA-36GG 13.5 34 225 530 49
PA-38GG 14 36 225 500 47
PA-40GG 15 38 195 475 49
PA-42GG 16 41 195 440 46
PA-44GG 16.5 42 195 420 46
PA-45GG 17 43 195 400 46
PA-47GG 18 46 180 375 43
PA-48GG 18 46 195 365 43
PA-50GG 20 51 150 355 51
PA-52GG 21 53 150 335 49
PA-54GG 22 56 150 310 47
PA-58GG 23 58 140 300 46
PA-60GG 24 61 140 280 43
PA-62GG 24 61 150 270 41
PA-64GG 26 66 120 265 47
PA-66GG 27 69 120 255 46
PA-68GG 27.5 70 120 245 43
PA-70GG 28 71 120 240 44
PA-72GG 29 74 120 225 42
PA-74GG 30 76 120 212 40
The above is theoretical data, for your reference only!
Type Mesh Count
(/cm)
Mesh Count
(/inch)
Wire Diameter
(um)
Mesh Opening (um) Open Area
(%)
PA-3XXX 23 58 140 300 46
PA-4XXX 24 61 140 280 43
PA-5XXX 27 69 120 255 46
PA-6XXX 30 76 120 212 40
PA-7XXX 31 79 120 200 39
PA-8XXX 36 91 100 180 43
PA-8.5XXX 38 97 100 160 37
PA-9XXX 41 104 90 155 39
PA-9.5XXX 43 109 90 140 36
PA-10XXX 46 117 80 135 39
PA-10.5XXX 49 124 80 125 38
PA-11XXX 51 130 80 115 35
PA-12XXX 55 140 70 115 37
PA-12.5XXX 55 140 80 105 32
PA-13XXX 57 145 70 100 32
PA-14XXX 62 157 70 90 30
PA-14.5XXX 66 168 61 90 35
PA-17XXX 71 180 61 80 32
The above is theoretical data, for your reference only!



Type Mesh Count Wire Diameter Mesh opening Open Area
(/cm) (/inch) Warp(/um) Weft(/um) (um) (%)
PET-6XX 32/34 76/86 80+64*2 80 209 49
PET-7XX 33/36 84/91 80+64*2 80 199 47
PET-8XX 36/40 91/102 80+64*2 70 174 45
PET-9XX 43/48 109/22 70+48*2 64 150 45
PET-10XX 49/52 124/132 64+40*2 64 132 43
PET-11XX 53/60 135/152 64+40*2 48 117 44
PET-12XX 55/63 140/160 64+40*2 48 110 42
PET-13XX 58/68 147/173 64+40*2 48 100 39
PET-14XX 62/69 157/175 48+40*2 48 97 40
PET-15XX 65/74 165/188 48+40*2 48 90 38
The above is theoretical data, for your reference only!
