Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh

  • Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh
  • Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh
  • Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh
  • Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh
  • Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh
Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001
Model Number DPP
Minimum Order Quantity 30M
Price www.silk-screen-mesh.com
Packaging Details Paper tube, plastic bag, carton box, sailcloth or according to the customer's special requests
Delivery Time 3-5 Days
Payment Terms L/C, T/T, D/P, Western Union, Paypal, Money Gram
Supply Ability 500000m/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 100% Polyester Mesh Count 6T-165T Screen Printing Mesh
Color White/Yellow Width 0.6M-3.6M
Length 30-70m Per Roll Application Screen Printing
Roll Length 30-70m Printing Mesh
Leave a Message
Product Description
Single Yarn Polyester Mesh Applicable to general screen printing factory, garment printing factory, handbag silk screen, plexiglass, plastic panel and other silk screen printing. Polyester mesh is also made of chemical synthetic fibers and belongs to the polyester system. Polyester mesh has the advantages of solvent resistance, high temperature resistance, water resistance and chemical resistance. When the polyester mesh is subjected to external pressure, its physical properties are stable and the stretchability is small. The disadvantage is that the wear resistance is poor compared to nylon mesh. In addition to the advantages of nylon screen printing, polyester mesh is also suitable for printing printed circuit boards with high dimensional accuracy requirements.

The mesh surface is even and flat, the mesh is accurate, can withstand high tension, and the ink is good in the screen printing process. Polyester material, non-toxic and odorless, strong anti-wrinkle, good elasticity, stable size under tension, not easy to deform, resistant to sunlight and friction. It is not moldy, has good electrical insulation, good chemical resistance, weak acid and alkali resistance, can resist strong acid at room temperature, and is not resistant to strong alkali.

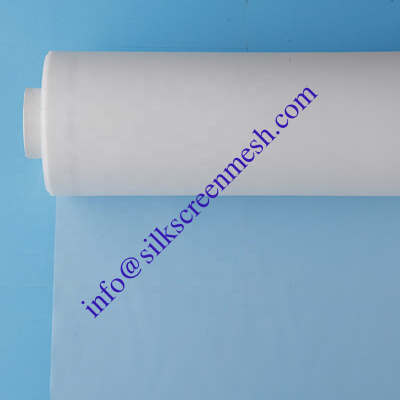

Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 0

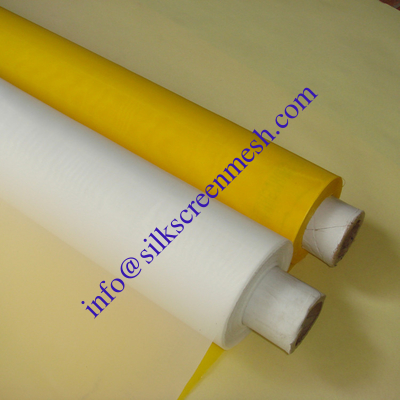

Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 1

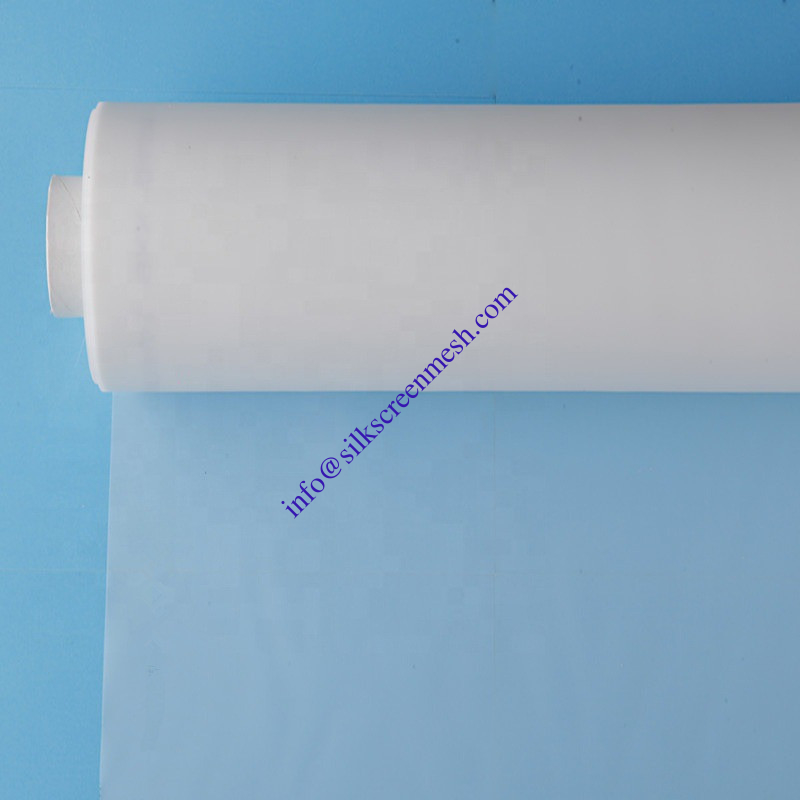

Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 2

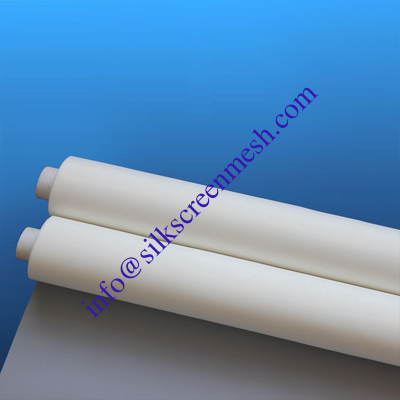

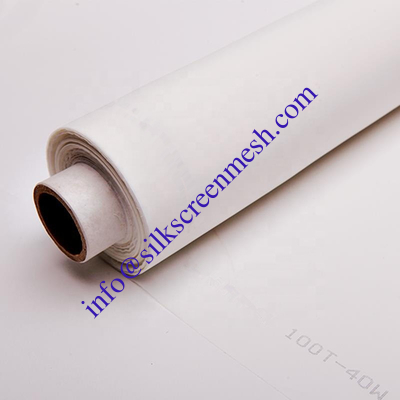

Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 3Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 4

T-shirt
General water-based ink for thicker screens (120 mesh - 180 mesh)
Dyeing generally uses 20T-53T (50-135)
A rough surface of the absorptive substrate, in order to achieve the best ink layer coverage, requires a larger amount of ink, so the use of coarser wire mesh
Nameplate advertisement
Solvent-based inks use medium mesh mesh (195-420 mesh) for printing advertisements, electrical appliances, etc.
Circuit board
Electronics (PCB) 91-355 mesh
Generally, the pigment particles of the ink are relatively fine, and the ink property is good, and the use of high mesh counts.
porcelain cup
Ceramics generally use 80-355 mesh
Such a non-absorbent substrate with a smooth surface requires less ink, so a high mesh screen is used.

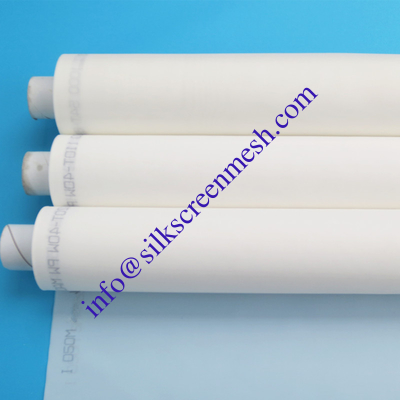

Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 5
Screen printing mesh 140T 350 mesh high tension polyester mesh polyester printing plate mesh 6
100% Polyester Monofilament Mesh
Type Weave Mesh/CM Mesh/inch Wire Dia.
(um)		 Mesh Opening(um) Open Area
(%)		 Thickness
(um)
PET-7/1080 PW 7 18 350 1080 57 640
PET-8/950 PW 8 20 300 950 58 550
PET-10/800 PW 10 25 200 800 64 380
PET-10/750 PW 10 25 250 750 56 480
PET-12/633 PW 12 30 200 633 58 390
PET-12/583 PW 12 30 250 583 49 480
PET-16/425 PW 16 40 200 425 46 400
PET-20/420 PW 20 50 80 420 71 140
PET-20/400 PW 20 50 100 400 64 185
PET-20/380 PW 20 50 120 380 58 230
PET-20/350 PW 20 50 150 350 49 290
PET-24/337 PW 24 60 80 337 65 150
PET-24/317 PW 24 60 100 317 58 190
PET-24/297 PW 24 60 120 297 51 235
PET-24/267 PW 24 60 150 267 41 295
PET-29/225 PW 29 74 120 225 43 238
PET-32/249 PW 32 80 64 249 63 115
PET-32/233 PW 32 80 80 233 55 150
PET-32/213 PW 32 80 100 213 46 180
PET-34/194 PW 34 86 100 194 44 185
PET-36/178 PW 36 90 100 178 41 190
PET-39/201 PW 39 99 55 201 62 90
PET-39/176 PW 39 99 80 176 47 150
PET-39/156 PW 39 99 100 156 37 195
PET-43/153 PW 43 110 80 153 43 155
PET-47/158 PW 47 120 55 158 55 95
PET-47/142 PW 47 120 71 142 44 130
PET-53/134 PW 53 135 55 134 50 98
PET-53/125 PW 53 135 64 125 44 115
PET-53/118 PW 53 135 71 118 39 133
PET-59/114 PW 59 150 55 114 46 100
PET-59/105 PW 59 150 64 105 39 118
PET-64/101 PW 64 163 55 101 42 102
PET-64/92 PW 64 163 64 92 35 120
PET-72/91 PW 72 183 48 91 43 75
PET-72/84 PW 72 183 55 84 37 105
PET-77/75 PW 77 195 55 75 33 108
PET-80/77 PW 80 203 48 77 38 77
PET-90/63 PW 90 230 48 63 32 80
PET-100/60 PW 100 254 40 60 36 65
PET-110/51 PW 110 280 40 51 31 70
PET-120/48 PW 120 305 34 48 35 63
PET-120/43 PW 120 305 40 43 27 75
PET-140/37 PW 140 355 34 37 27 65
PET-140/36 PW 150 380 31 36 29 52
PET-150/33 PW 150 380 34 33 24 56
PET-165/34 PW 165 420 27 34 31 50
PET-165/30 PW 165 420 31 30 24 58
