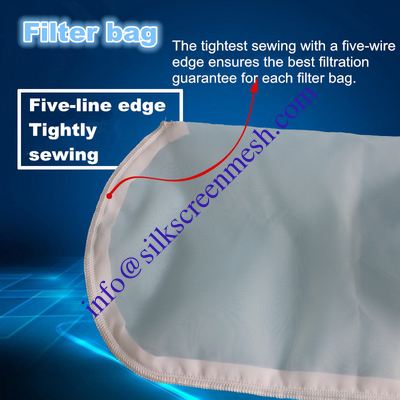

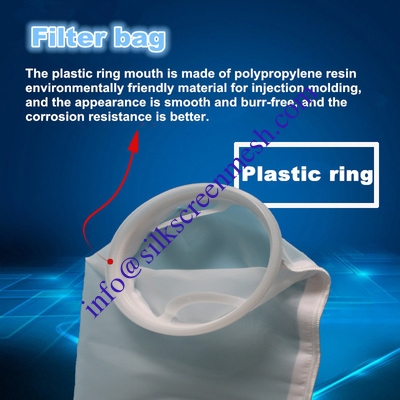

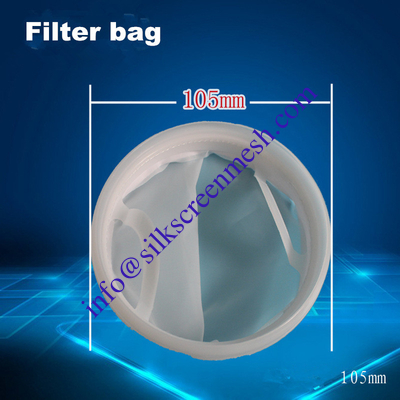

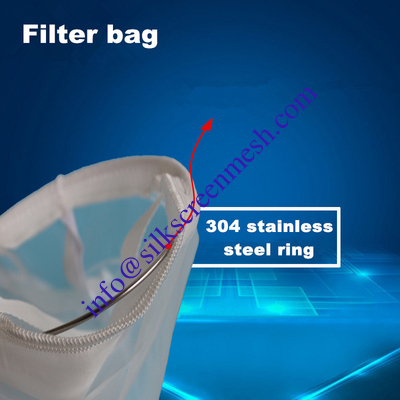

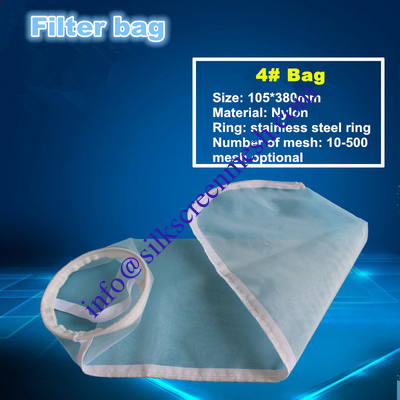

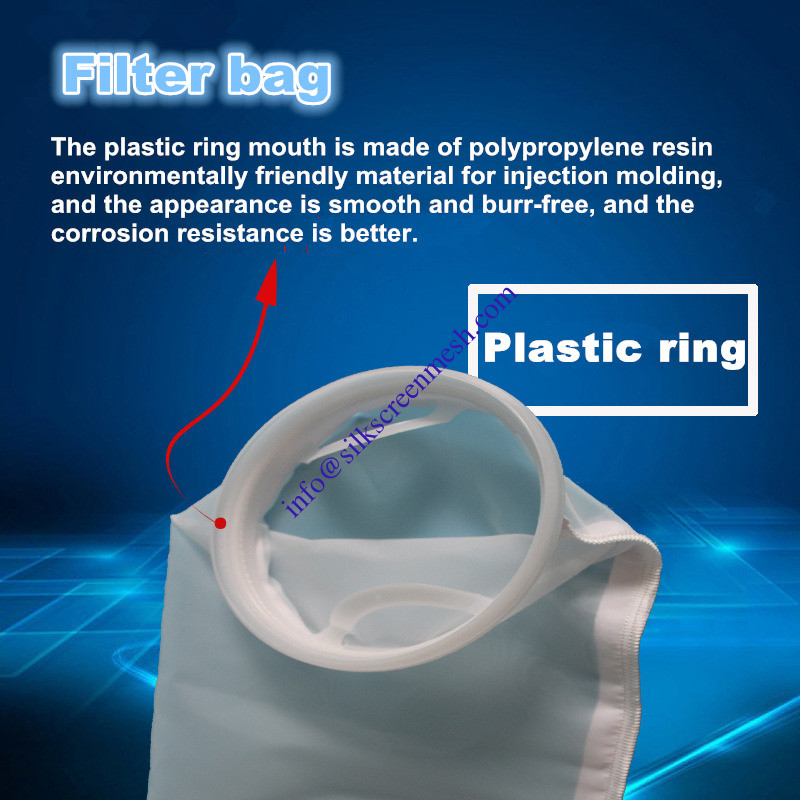

4#nylon filter bag manufacturer liquid filter bag screen paint coating filter bag nylon filter bag
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | SPRING |
| Certification | ISO9001 |
| Model Number | JPP |
| Minimum Order Quantity | 30m |
| Price | US $ 0.25 - 1.5 / m |
| Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
| Delivery Time | 2-5 Days |
| Payment Terms | TT/LC/Western Union/paypal/others |
| Supply Ability | 5500000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Nylon | Thickness | 53-1100um Nylon Filter Mesh |
|---|---|---|---|
| Width | 0.6m-3.65m Nylon Filter Mesh | Length | Customize Length |
| Color | White |
Product Description
Nylon mesh is also called nylon single mesh,
1. Nylon mesh size 4T-240T (10 mesh - 600 mesh) nylon mesh is white
2. Wide width: 0.5m - 3.90m (with side) Conventional specifications are 115, 127, 145, 158, 165, 220, 260, 310, 340, 360, 380 (cm) and other specifications.
Wire diameter: 30um--600um
Length: 30-70 meters / volume
Raw materials: Japanese imported silk, domestic silk.
All specifications can be customized, length and width can also be customized according to customer requirements.
The white nylon mesh is also called nylon blended. The material is food grade nylon 66, which is non-toxic and odorless. High strength, large elongation and excellent elasticity. Strong and wear-resistant, it is the first of all fibers. High temperature resistance, stagnation resistance, oil resistance, corrosion resistance, strong alkali resistance and weak acidity, and stable chemical properties. It has good electrical insulation, anti-vibration and sound absorption, and has certain flame retardancy. Nylon mesh is fine and transparent.
Widely used in marine aquaculture, flour processing, nylon screen printing, pharmaceutical, chemical, dyes, MSG, fisheries, food and other industrial sieve screens.
[Nylon mesh use]: liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, fishery, impurity filtration, food For industrial screens and filtration, the application range is very wide. Welcome to wholesale, zero buy, large favorably! ! !
[Nylon mesh features]: non-toxic, odorless, tasteless, high strength, large elongation, and excellent elasticity. It has the characteristics of high toughness, good elasticity, resistance to weak acid, oil, alkali, abrasion and temperature. It also has good insulation and low lubrication coefficient. Its application range is very wide.
The nylon mesh yarn produced by our company has many advantages such as strong structure, high mesh precision, good dimensional stability, good chemical resistance, good ink performance and easy jumping.
| Type | Weave | Mesh/CM | Mesh/inch | Wire Dia. (um) |
Mesh Opening(um) | Open Area (%) |
Thickness (um) |
| PA-4/1950 | PW | 4 | 10 | 550 | 1950 | 61 | 1096 |
| PA-5/1500 | PW | 5 | 13 | 500 | 1500 | 56 | 998 |
| PA-6/1267 | PW | 6 | 15 | 400 | 1267 | 58 | 796 |
| PA-7/1079 | PW | 7 | 18 | 350 | 1079 | 57 | 691 |
| PA-8/900 | PW | 8 | 20 | 350 | 900 | 52 | 697 |
| PA-9/861 | PW | 9 | 24 | 250 | 861 | 60 | 492 |
| PA-10/750 | PW | 10 | 25 | 250 | 750 | 56 | 494 |
| PA-12/533 | PW | 12 | 30 | 300 | 533 | 41 | 590 |
| PA-14/514 | PW | 14 | 35 | 200 | 514 | 52 | 391 |
| PA-16/425 | PW | 16 | 40 | 200 | 425 | 46 | 393 |
| PA-18/356 | PW | 18 | 45 | 200 | 356 | 41 | 395 |
| PA-20/300 | PW | 20 | 50 | 200 | 300 | 36 | 396 |
| PA-24/267 | PW | 24 | 60 | 150 | 267 | 41 | 292 |
| PA-28/207 | PW | 28 | 70 | 150 | 207 | 34 | 295 |
| PA-30/213 | PW | 30 | 76 | 120 | 213 | 41 | 230 |
| PA-32/213 | PW | 32 | 80 | 100 | 213 | 46 | 186 |
| PA-36/178 | PW | 36 | 90 | 100 | 178 | 41 | 189 |
| PA-40/150 | PW | 40 | 100 | 100 | 150 | 36 | 192 |
| PA-44/127 | PW | 44 | 110 | 100 | 127 | 31 | 195 |
| PA-48/128 | PW | 48 | 120 | 80 | 128 | 38 | 150 |
| PA-56/119 | PW | 56 | 142 | 60 | 119 | 44 | 96 |
| PA-59/109 | PW | 59 | 150 | 60 | 109 | 42 | 110 |
| PA-64/96 | PW | 64 | 163 | 60 | 96 | 38 | 116 |
| PA-72/89 | PW | 72 | 183 | 50 | 89 | 41 | 90 |
| PA-80/75 | PW | 80 | 203 | 50 | 75 | 36 | 93 |
| PA-88/71 | PW | 88 | 224 | 43 | 71 | 39 | 70 |
| PA-96/61 | PW | 96 | 244 | 43 | 61 | 34 | 74 |
| PA-100/57 | PW | 100 | 254 | 43 | 57 | 32 | 75 |
| PA-104/53 | PW | 104 | 264 | 43 | 53 | 31 | 76 |
| PA-110/48 | PW | 110 | 280 | 43 | 48 | 28 | 78 |
| PA-120/40 | PW | 120 | 305 | 43 | 40 | 23 | 80 |
| PA-130/34 | PW | 130 | 330 | 43 | 34 | 19 | 83 |
| PA-140/33 | PW | 140 | 355 | 38 | 33 | 22 | 73 |
| PA-150/28 | TW | 150 | 380 | 39 | 28 | 17 | 75 |
| PA-157/25 | TW | 157 | 400 | 39 | 25 | 15 | 76 |
| PA-165/30 | TW | 165 | 420 | 30 | 30 | 25 | 54 |
