Screen printing mesh yarn road board reinforced thickened high tension 18-420 mesh polyester printing mesh
Screen printing mesh specification: 18 mesh-420 mesh thin medium thick silk warp 30um-450um
Common widths 115 127 136 146 158 165 220 310 340 370

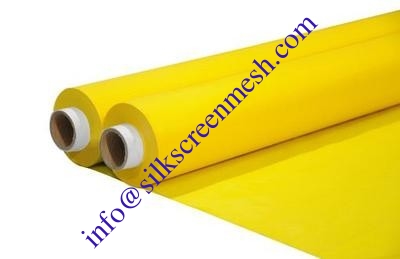

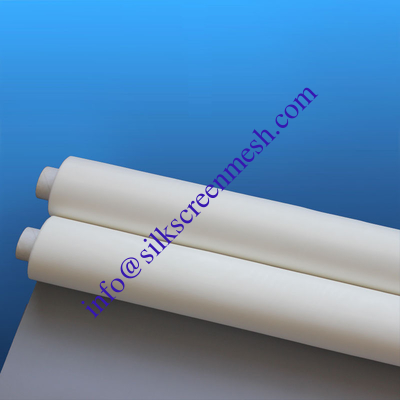

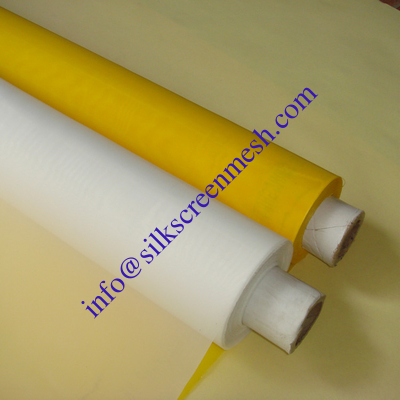

The colors are white black yellow orange.
Screen printing screen yarn features: smooth surface, 18-420 mesh, heat resistance, high temperature resistance, corrosion resistance, stable tension, low elongation, good screen printing performance, and many printing times.
Screen printing net yarn use: Mainly used in glass, printing, tile printing, electronics industry, advertising, arts and crafts, mobile phone speakers, speakers, silk chemical fiber, ceramic printing, printed circuit boards, printing plates, sign advertising, flower paper, filtration, Luggage, environmental protection and other industries
Application:
T-shirt: General water-based inks are suitable for absorbent substrates with rough screen surface. To achieve the best coverage of the ink layer, a larger amount of ink is required, so a thicker screen is used. (120-180 mesh)
Brand-name advertising: solvent-based inks are printed with medium mesh gauze when printing advertisements and electrical appliances. (195-420 mesh)
Circuit board: The pigment particles of general inks for electronic products are relatively fine, and the ink has good versatility. This kind of use has a high mesh number. (90-355 mesh)
Ceramic cups: ceramics generally have a high mesh count. Such smooth non-absorbent substrates require less ink, so a high mesh screen (80-355 mesh) is selected.

100% Polyester Monofilament Mesh |
Type |
Weave |
Mesh/CM |
Mesh/inch |
Wire Dia.
(um) |
Mesh Opening(um) |
Open Area
(%) |
Thickness
(um) |
PET-7/1080 |
PW |
7 |
18 |
350 |
1080 |
57 |
640 |
PET-8/950 |
PW |
8 |
20 |
300 |
950 |
58 |
550 |
PET-10/800 |
PW |
10 |
25 |
200 |
800 |
64 |
380 |
PET-10/750 |
PW |
10 |
25 |
250 |
750 |
56 |
480 |
PET-12/633 |
PW |
12 |
30 |
200 |
633 |
58 |
390 |
PET-12/583 |
PW |
12 |
30 |
250 |
583 |
49 |
480 |
PET-16/425 |
PW |
16 |
40 |
200 |
425 |
46 |
400 |
PET-20/420 |
PW |
20 |
50 |
80 |
420 |
71 |
140 |
PET-20/400 |
PW |
20 |
50 |
100 |
400 |
64 |
185 |
PET-20/380 |
PW |
20 |
50 |
120 |
380 |
58 |
230 |
PET-20/350 |
PW |
20 |
50 |
150 |
350 |
49 |
290 |
PET-24/337 |
PW |
24 |
60 |
80 |
337 |
65 |
150 |
PET-24/317 |
PW |
24 |
60 |
100 |
317 |
58 |
190 |
PET-24/297 |
PW |
24 |
60 |
120 |
297 |
51 |
235 |
PET-24/267 |
PW |
24 |
60 |
150 |
267 |
41 |
295 |
PET-29/225 |
PW |
29 |
74 |
120 |
225 |
43 |
238 |
PET-32/249 |
PW |
32 |
80 |
64 |
249 |
63 |
115 |
PET-32/233 |
PW |
32 |
80 |
80 |
233 |
55 |
150 |
PET-32/213 |
PW |
32 |
80 |
100 |
213 |
46 |
180 |
PET-34/194 |
PW |
34 |
86 |
100 |
194 |
44 |
185 |
PET-36/178 |
PW |
36 |
90 |
100 |
178 |
41 |
190 |
PET-39/201 |
PW |
39 |
99 |
55 |
201 |
62 |
90 |
PET-39/176 |
PW |
39 |
99 |
80 |
176 |
47 |
150 |
PET-39/156 |
PW |
39 |
99 |
100 |
156 |
37 |
195 |
PET-43/153 |
PW |
43 |
110 |
80 |
153 |
43 |
155 |
PET-47/158 |
PW |
47 |
120 |
55 |
158 |
55 |
95 |
PET-47/142 |
PW |
47 |
120 |
71 |
142 |
44 |
130 |
PET-53/134 |
PW |
53 |
135 |
55 |
134 |
50 |
98 |
PET-53/125 |
PW |
53 |
135 |
64 |
125 |
44 |
115 |
PET-53/118 |
PW |
53 |
135 |
71 |
118 |
39 |
133 |
PET-59/114 |
PW |
59 |
150 |
55 |
114 |
46 |
100 |
PET-59/105 |
PW |
59 |
150 |
64 |
105 |
39 |
118 |
PET-64/101 |
PW |
64 |
163 |
55 |
101 |
42 |
102 |
PET-64/92 |
PW |
64 |
163 |
64 |
92 |
35 |
120 |
PET-72/91 |
PW |
72 |
183 |
48 |
91 |
43 |
75 |
PET-72/84 |
PW |
72 |
183 |
55 |
84 |
37 |
105 |
PET-77/75 |
PW |
77 |
195 |
55 |
75 |
33 |
108 |
PET-80/77 |
PW |
80 |
203 |
48 |
77 |
38 |
77 |
PET-90/63 |
PW |
90 |
230 |
48 |
63 |
32 |
80 |
PET-100/60 |
PW |
100 |
254 |
40 |
60 |
36 |
65 |
PET-110/51 |
PW |
110 |
280 |
40 |
51 |
31 |
70 |
PET-120/48 |
PW |
120 |
305 |
34 |
48 |
35 |
63 |
PET-120/43 |
PW |
120 |
305 |
40 |
43 |
27 |
75 |
PET-140/37 |
PW |
140 |
355 |
34 |
37 |
27 |
65 |
PET-140/36 |
PW |
150 |
380 |
31 |
36 |
29 |
52 |
PET-150/33 |
PW |
150 |
380 |
34 |
33 |
24 |
56 |
PET-165/34 |
PW |
165 |
420 |
27 |
34 |
31 |
50 |
PET-165/30 |
PW |
165 |
420 |
31 |
30 |
24 |
58
|
