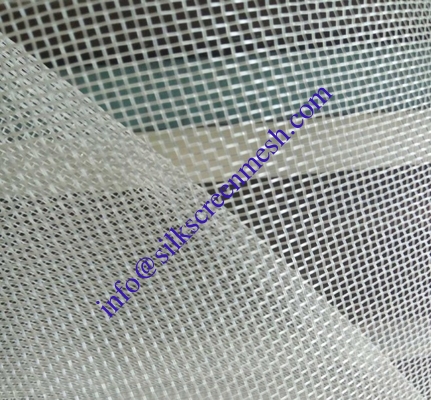

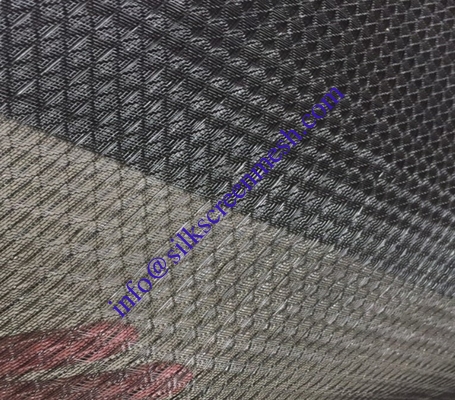

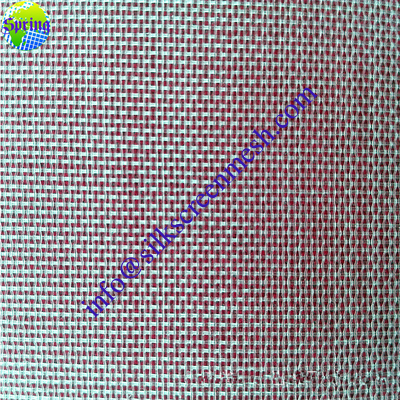

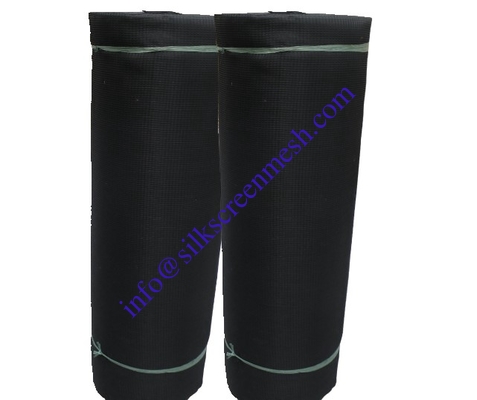

Air-conditioning special nylon net Air-conditioning dust filter Central air-conditioning filter (black / white)
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Material | PA PP PE PET | Type | Efficient |
---|---|---|---|
Uses | Dust And Dust Removal, Air Filtration | Applicable Object | Dust |
Weaving Method | Twill Plain | Mesh Number | 60 ~ 150 (mesh / Inch) |
Wide | 1.2 ~ 1.75 (m) | Density | 12 * 13 13 * 15 15 * 16.5 (root / 10cm) |
Performance | High Temperature Resistance, Low Temperature Resistance, Waterproof | Scope Of Application | Air Conditioner, Washing Machine, Air Purifier, Vacuum Cleaner, Filter |
Product Description
Nylon air conditioner filter air conditioner filter dust filter air filter
Features:
♦ Ventilation volume, low resistance
♦ High temperature resistance and moisture resistance
♦ Acid and alkali resistance
♦ Dust-proof, dust-proof, dust-removal
♦ Easy to use, easy to clean and replace
Product Usage:
♦ Air purifiers, home air conditioners, central air conditioners, air fresheners, range hoods, heaters, air conditioning fans, vacuum cleaners, and air duct filters for special purposes;
♦ Coarse dust filtering is generally used in places where fresh air units, tuyeres, etc. come into contact with the outside air, indoor air handlers, etc. that require large air volume filtering equipment, and are suitable for ventilation filtering in special acid, alkali or high temperature places;

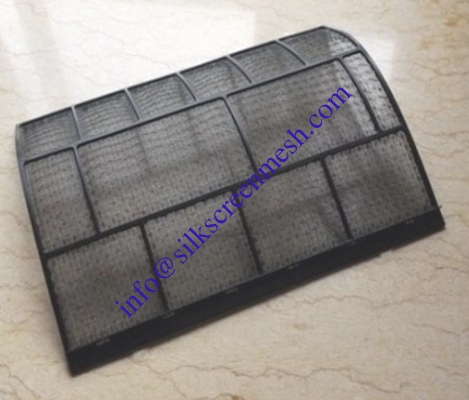

♦ It can be used for primary filtering of home air-conditioning, central air-conditioning system, primary filtering of return air in clean room, etc.
Specifications | Mesh number (/ cm) | Mesh (/ inch) | Wire diameter (um) | Hole width (um) | Opening rate (%) | Thickness (um) | Weight (g / ㎡) |
NL4/1931 | 4 | 10 | 550 | 1931 | 60 | 1100 | 251 |
NL5/1485 | 5 | 13 | 500 | 1485 | 55 | 1000 | 270 |
NL5/1535 | 5 | 13 | 450 | 1535 | 59 | 900 | 218 |
NL6/1254 | 6 | 15 | 400 | 1254 | 57 | 800 | 199 |
NL7/1068 | 7 | 18 | 350 | 1068 | 56 | 700 | 183 |
NL8/891 | 8 | 20 | 350 | 891 | 51 | 700 | 203 |
NL8/990 | 8 | 20 | 250 | 990 | 63 | 500 | 104 |
NL9/853 | 9 | 24 | 250 | 853 | 59 | 500 | 125 |
NL10/743 | 10 | 25 | 250 | 743 | 55 | 500 | 130 |
NL10/693 | 10 | 25 | 300 | 693 | 48 | 600 | 187 |
NL12/578 | 12 | 30 | 250 | 578 | 48 | 500 | 156 |
NL12/528 | 12 | 30 | 300 | 528 | 40 | 600 | 224 |
NL14/410 | 14 | 35 | 300 | 410 | 33 | 510 | 261 |
NL14/509 | 14 | 35 | 200 | 509 | 51 | 340 | 116 |
NL16/421 | 16 | 41 | 200 | 421 | 45 | 340 | 136 |
NL16/371 | 16 | 41 | 250 | 371 | 35 | 425 | 213 |
NL17/384 | 17 | 42 | 200 | 384 | 43 | 340 | 139 |
NL18/332 | 18 | 45 | 220 | 332 | 36 | 374 | 181 |
NL20/347 | 20 | 50 | 150 | 347 | 48 | 255 | 93 |
NL20/297 | 20 | 50 | 200 | 297 | 35 | 340 | 166 |
NL24/264 | 24 | 60 | 150 | 264 | 40 | 255 | 112 |
NL28/235 | 28 | 70 | 120 | 235 | 43 | 204 | 84 |
NL28/205 | 28 | 70 | 150 | 205 | 33 | 255 | 131 |
NL30/211 | 30 | 76 | 120 | 211 | 40 | 204 | 91 |
NL32/210 | 32 | 80 | 100 | 210 | 45 | 170 | 66 |
NL36/176 | 36 | 90 | 100 | 176 | 40 | 170 | 75 |
NL40/149 | 40 | 100 | 100 | 149 | 35 | 170 | 83 |
NL44/126 | 44 | 110 | 100 | 126 | 31 | 170 | 91 |
NL43/151 | 43 | 110 | 80 | 151 | 42 | 136 | 58 |
NL48/127 | 48 | 120 | 80 | 127 | 37 | 136 | 64 |
NL56/117 | 56 | 142 | 60 | 117 | 43 | 102 | 42 |
NL59/108 | 59 | 150 | 60 | 108 | 41 | 102 | 45 |
NL64/95 | 64 | 163 | 60 | 95 | 37 | 102 | 49 |
NL72/88 | 72 | 183 | 50 | 88 | 40 | 85 | 38 |
NL76/79 | 76 | 193 | 52 | 79 | 36 | 88 | 43 |
NL80/74 | 80 | 203 | 50 | 74 | 35 | 85 | 42 |
NL88/71 | 88 | 224 | 42 | 71 | 39 | 71 | 33 |
NL96/62 | 96 | 244 | 42 | 62 | 35 | 76 | 36 |
NL100/55 | 100 | 254 | 42 | 55 | 31 | 80 | 37 |
NL104/51 | 104 | 264 | 42 | 51 | 29 | 71 | 39 |
NL110/46 | 110 | 279 | 42 | 46 | 25 | 76 | 41 |
NL120/39 | 120 | 305 | 42 | 39 | 21 | 80 | 45 |
NL120/43 | 120 | 305 | 38 | 43 | 25 | 65 | 37 |
NL120/46 | 120 | 305 | 35 | 46 | 29 | 60 | 31 |
NL130/32 | 130 | 330 | 43 | 32 | 17 | 73 | 51 |
NL130/40 | 130 | 330 | 35 | 40 | 25 | 60 | 34 |
NL140/35 | 140 | 356 | 35 | 35 | 22 | 60 | 36 |
NL140/34 | 150 | 381 | 31 | 34 | 25 | 53 | 30 |
