Nylon mesh for filter JPP80 White nylon mesh nylon filter fabric

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001
Model Number JPP
Minimum Order Quantity 30m
Price 0.8-2.6$/m
Packaging Details Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.210cm*25cm*25cm,185cm*33cm*33cm,55cm*45cm*45cm
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Nylon Color White
Width 0.1m-3.8m
Leave a Message
Product Description

Nylon mesh for filter JPP80 White nylon mesh

Filtration rates can be from 27% to 78%. Such as food industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk etc.

filter mesh Mesh opening:25micron-2000micron

The Filtration Division of SPRING not only designs and produces precision woven fabrics but has the ability to engineer them into finished or partly finished products. Our specially designed processing equipment together with our experience and expertise enables us to provide fabrics cut to size and high quality custom fabricated parts, in almost any requested shape.

Nylon mesh for filter JPP80 White nylon mesh nylon filter fabric 0

Filteration: Widely used in areas as filtration and separation industry,the industries of petroleum, chemical, metallurgy, cement, environmental dedusting and mine. filter mesh.

Some examples of our fabrication capabilities are:

Ultrasonic Plotting, Stamping and Shaping – These processes are ideal for low volume, high tolerance parts that require completely sealed edges.

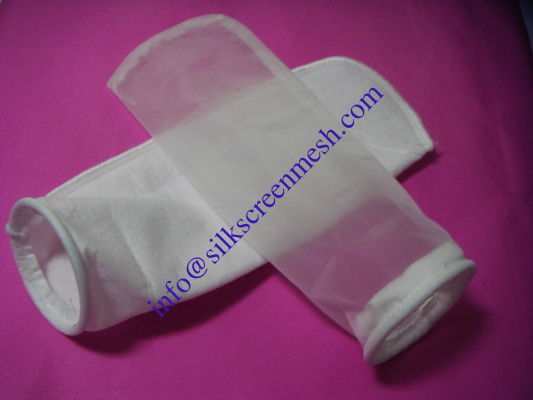

Sewing – We can supply a wide range of sewn products (bags, sleeves and belts) and many edging, joining and reinforcing solutions.

Ultrasonic sealing

Pleating

Heat slitting – single or multi-layer ribbons are slit with heat to provide an even sealed edge.

Ultrasonic slitting – fabrics can be slit into ribbons or welded into single or doubled seamed tubes.

Tubing – tubes can be cut to length and sealed to close one end.

Cold stamping – high volume parts can be cut to any size or shape.

Filter Mesh,nylon mesh,filter cloth,Nylon Filter Mesh,Nylon Fabric.

Nylon mesh for filter JPP80 White nylon mesh nylon filter fabric 1

Nylon mesh for filter JPP80 White nylon mesh

Type Mesh Count (/cm) Mesh Count (/inch) Thread Diameter(um) Mesh Opening(um) Open Area(%) Thickness (um)
JPP 4 4 10 550 1950 61 1020
JPP 5 5 13 400 1600 64 760
JPP 5 5 13 500 1500 56 940
JPP 6 6 15 350 1317 62 680
JPP 6 6 15 400 1267 58 780
JPP 7 7 18 350 1079 57 675
JPP 8 8 20 300 950 58 585
JPP 8 8 20 350 900 52 685
JPP 9 9 24 250 861 60 465
JPP 10 10 25 300 700 49 576
JPP 12 12 30 250 583 49 470
JPP 12 12 30 300 533 41 585
JPP 14 14 35 200 514 52 375
JPP 16 16 40 200 425 46 380
JPP 18 18 45 200 356 41 385
JPP 20 20 50 150 350 49 375
JPP 20 20 50 200 300 36 385
JPP 24 24 60 150 267 41 285
JPP 28 28 70 120 237 44 215
JPP 30 30 76 120 213 41 225
JPP 32 32 80 100 213 46 170
JPP 36 36 90 100 178 41 180
JPP 40 40 100 100 150 36 190
JPP 43 43 110 80 153 43 135
JPP 48 48 120 80 128 38 145
JPP 56 56 142 60 119 44 96
JPP 59 59 150 60 109 42 102
JPP 64 64 163 60 96 38 108
JPP 72 72 183 50 89 41 88
JPP 80 80 203 50 75 36 92
JPP 90 90 230 43 68 38 70
JPP 100 100 254 43 57 32 72
JPP 110 110 280 43 48 28 76
JPP 120 120 305 43 40 23 78
JPP 130 130 330 43 34 19 80
JPP 140 140 355 38 33 22 75
Remark: These are theoretical data for reference only.
Mesh Opening & Open Area only slight error according to actual data.
