plastic diamond extruded netting/extruded polypropylene mesh

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001,ISO14001,FDA,SGS
Model Number PP
Minimum Order Quantity 30m
Price 0.75-5.68$/m
Packaging Details nude packing, or customer request package available.
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materil 100%HDPE(polyethylene), PP Colour White,green,black,white,gray,orange Etc
Width 1m,1.2m,1.5m,1.8m,2.0m,2.4m Etc Opening 2mm To 50mm
Thickness 3mm-8mm Structure Diamond, Hexagonal
Weight 600g/m2-1600/m2 Free Sample Accepted
Roll Length 30m,50m Etc
Leave a Message
Product Description

Product Description

Plastic Diamond Extruded Netting/Extruded Polypropylene Mesh

Product information

Plastic flat mesh (aka plastic breeding net) is heated molten plastic material in the extruder, the screw extruder has entered a number of small holes inside and outside special rotating die head, molten plastic flows through the die pore the formation of two shares melt wire, because the head rotation, two stocks converge at one point interrupted silk material, thereby forming a network, and then cooling stereotypes into the net.

We choose the best HDPE material available in China,the high quality & reasonable price product is from the right material.

High-density polyethylene (HDPE) or polyethylene high-density (PEHD) is a polyethylene thermoplastic made from petroleum. Known for its large strength to density ratio, HDPE is commonly used in the production of plastic bottles, corrosion-resistant piping, geomembranes, and plastic lumber. HDPE is commonly recycled, and has the number "2" as its resin identification code (formerly known as recycling symbol).

Types we can made

  • Anit-Bird Net
  • Chicken or animals Breeding mesh
  • Lawn protective mesh
  • Climbing plants net
  • Rock shield mesh
  • Mesh tube
  • Agriculture net
  • Fence application

Polyethylene ( PE )

Polypropylene ( PP )

High-Density Polyethylene Plastics ( HDPE )

Low-Density Polyethylene Plastics ( LDPE )

Color: black, white, blue, green, yellow, red, gray

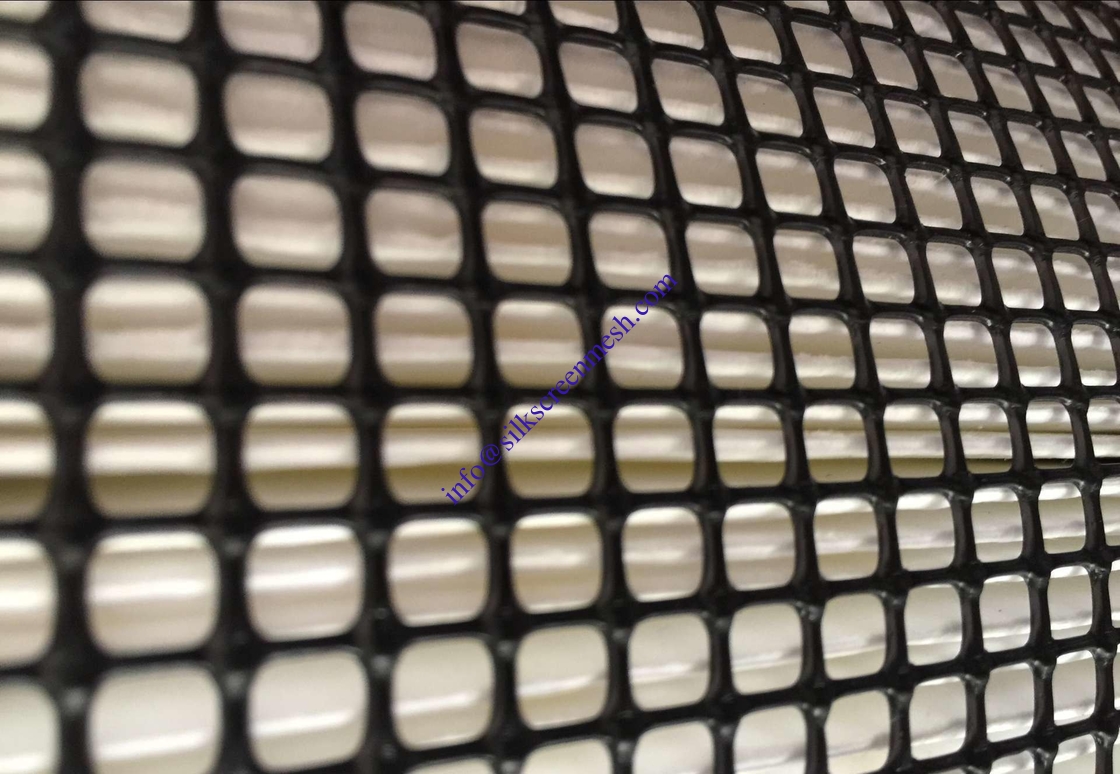

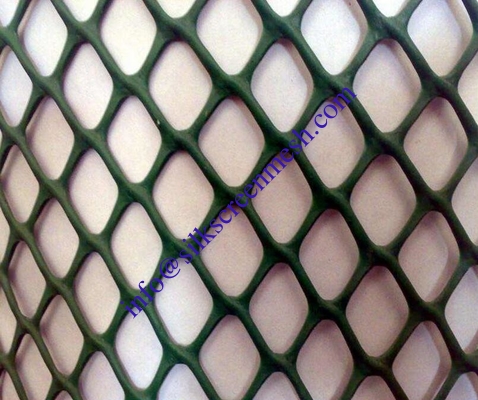

plastic diamond extruded netting/extruded polypropylene mesh 0 plastic diamond extruded netting/extruded polypropylene mesh 1

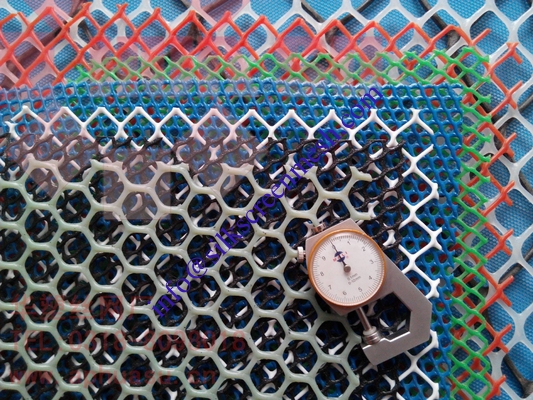

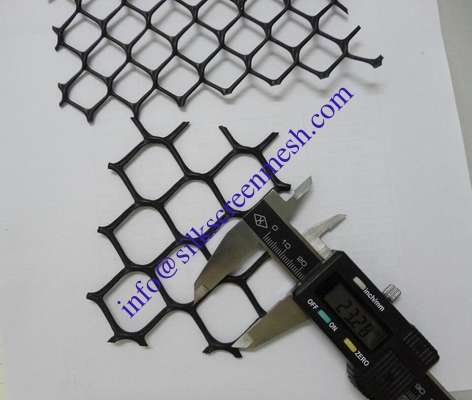

plastic diamond extruded netting/extruded polypropylene mesh 2 plastic diamond extruded netting/extruded polypropylene mesh 3

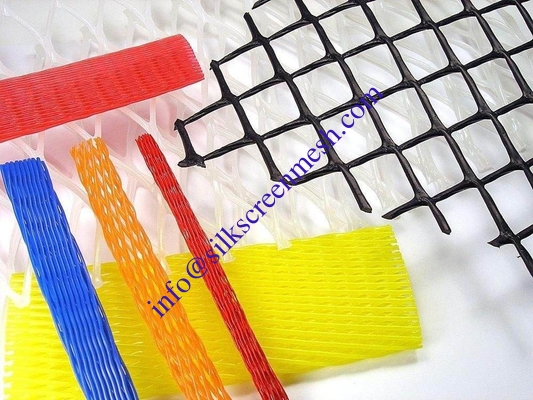

plastic diamond extruded netting/extruded polypropylene mesh 4 plastic diamond extruded netting/extruded polypropylene mesh 5

Diamond Mesh Plastic Netting is extruded using counter-rotating dies. Joints are formed when two strands intersect or overlay each other forming a diamond pattern. Two distinct planes (known as flow channels in some applications) are created when the opposing strands overlap. The overall thickness of the product is essentially twice the thickness of each strand.



Extruded plastic netting is created in a continuous process in which plastic resin pellets are melted and pushed through a die in "meat-grinder" fashion to form a continuous mesh.



Square Mesh Plastic Netting is extruded using a circular oscillating die plate. Longitudinal strands are determined by the size of the holes around the circumference of the die plate. Cross strands are created when the die plate opens, creating an integral joint structure along the x and y plane.

Use:

According to application, plastic extruded net also can be called rock shield mesh, grass protection mesh, ground reinforcement grids, deer fencing net, separator mesh, ground stabilization mesh, industrial netting, fine screening insect mesh, oyster mesh, hdpe fishing net, agriculture bird netting, breeding plastic net, roadbed net etc.

Weaving and characteristics: the thermal spraying, cold-processing from; with wear and corrosion resistance, toughness, and other major features, alternative metal wire.

Plastic Diamond Extruded Netting/Extruded Polypropylene Mesh

Plastic Extruded Net Specification
Mesh Size Weight(g/m2) Width
2mm 100g-400g 0.5m-2m
3mm 100g-400g 0.5m-2m
4mm 100g-800g 0.5m-2m
5mm 100g-800g 0.5m-2m
6mm 100g-1000g 0.5m-2m
7mm 100g-1000g 0.5m-2m
8mm 100g-1200g 0.5m-2m
9mm 100g-1200g 0.5m-2m
10mm 100g-1300g 0.5m-2m
11mm 100g-1300g 0.5m-2m
12mm 100g-1400g 0.5m-2m
13mm 100g-1400g 0.5m-2m
14mm 100g-1400g 0.5m-2m
15mm 100g-1400g 0.5m-2m
16mm 100g-1500g 0.5m-2m
17mm 100g-1500g 0.5m-2m
18mm 100g-1500g 0.5m-2m
19mm 100g-1500g 0.5m-2m
20mm 200g-1200g 0.5m-2m
21mm 200g-1200g 0.5m-2m
22mm 200g-1200g 0.5m-2m
23mm 200g-1200g 0.5m-2m
24mm 200g-1200g 0.5m-2m
25mm 200g-1300g 0.5m-2m
26mm-70mm 200g-1500g 0.5m-2m

Production Process



plastic diamond extruded netting/extruded polypropylene mesh 6

Factory Show

Shanghai SPRING Printing Mesh Manufacture Factory is one of the top manufacturers and exporters of screen printing mesh.Our company was connected with production of metal wire mesh since 1983 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1992, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D) and apparatus used in production process fully based on the high computer technology.

· Dedicated and experienced weavers.

· Consistent quality products.

· On-time delivery.

· We have 10 R&D technical staffs,with more than 15 years experience.

· 85% repeat customers.

· Reasonable claim refund system.

plastic diamond extruded netting/extruded polypropylene mesh 7



Package and Shipping

Package: nude packing, or customer request package available.
Payment:T/T,L/C, other payment terms can be negotiable.

plastic diamond extruded netting/extruded polypropylene mesh 8 plastic diamond extruded netting/extruded polypropylene mesh 9



plastic diamond extruded netting/extruded polypropylene mesh 10
