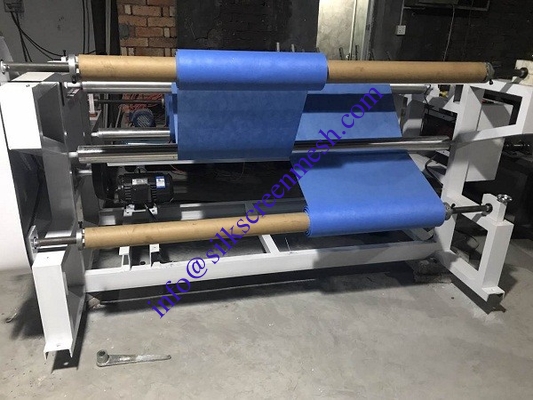

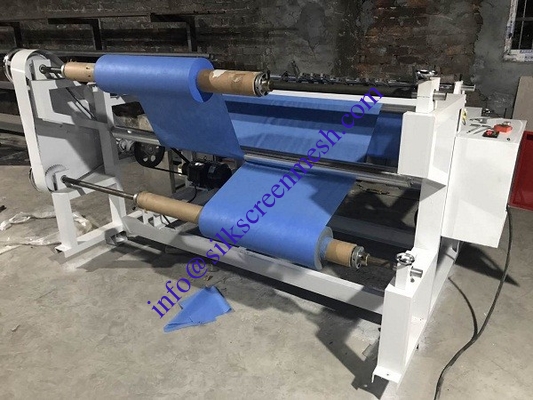

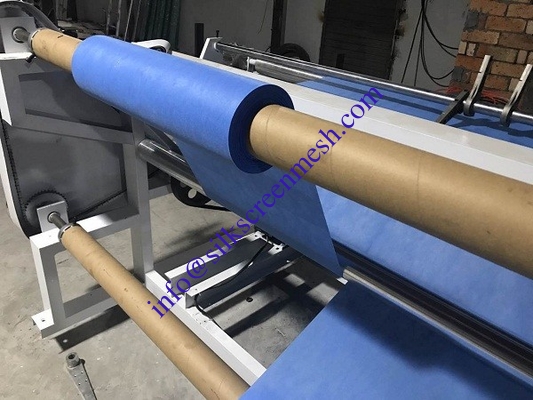

Non-woven simple slitting machine non-woven slitting machine

Place of Origin CHINA
Brand Name SPRING
Certification CE ISO
Model Number SP-SSM
Minimum Order Quantity 1set
Price FOB Shanghai USD 3000-5000/set
Packaging Details wooden case
Delivery Time 10 working days
Payment Terms Western Union, T/T, L/C, MoneyGram
Supply Ability 500sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Maximum Raw Material Width 1600mm Maximum Material Diameter 650mm
Max Unwind Diameter 450mm Slitting Speed 70(m/min)
Rewind Shaft Steel Rod Total Power 2.2(Kw)
Weight 1000kg
Leave a Message
Product Description

Non-woven slitting machine, also known as non-woven slitting machine, is in the production process according to different needs of the wide material trimming, slitting and other equipment. One of the non-woven slitting machine is mainly used for the wide slit into a variety of slivers for the production needs of a narrow web, slitting process, including unwinding and unwinding the two processes. The tension control of the unwinding material and the unwinding material is the key part of the slitting machine. The machine is based on the original electronic control system to increase the automatic edge control, to achieve the desired results, improve the performance of the machine, making the machine more stable operation at high speeds, winding volume, easy to operate, safe Reliable, durable.


Non-woven simple slitting machine non-woven slitting machine 0


Use and features

This machine can cut kraft paper, film, woven bags. Host inverter control. Stable performance, easy operation, good economic returns.


The company is located in:

1. Vertical structure, receiving and discharging before and after.

2. Channel welded structure.

3. Unwinding mechanical shaft, tapered sleeve fixed to meet the core deformation of the substrate.

4. Waste edge guide pipe combined with high-power fan, the waste side of the machine by blowing the right side.

5. Mainframe inverter control

6 release mechanical axis. Friction tension

7. Double receiving methods, mechanical axis. Friction tension


Technical Datas


Machine Model SP900 SP1300 SP1600
Maximum unwinding diameter 650mm 650mm 650mm
The largest winding diameter 450mm 450mm 450mm
Unwinding the maximum width 900mm 1300mm 1600mm
Paper core diamete 76mm 76mm 76mm
The most narrow cutting width 50mm 50mm 50mm
The highest sub-cutting speed 50m/min 50m/min 50m/min
Correction accuracy 0.3mm 0.3mm 0.3mm
Total installed power 3kw 3.8kw 5.5kw
Machine weight 500kg 700kg 1000kg
