Water Filter Screen Mesh 12 Micron mesh opening 630 mm width /filter mesh

Good quality Screen Printing Mesh for sales
Good quality Screen Printing Mesh for sales
I'm Online Chat Now

Water Filter Screen Mesh 12 Micron mesh opening 630 mm width /filter mesh

China Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh supplier
Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh supplier Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh supplier Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh supplier Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh supplier Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh supplier

Large Image :  Water Filter Screen Mesh 12 Micron mesh opening 630 mm width /filter mesh

Product Details:

Place of Origin: Shanghai China
Brand Name: SPRING
Certification: ISO9001,ISO14001,FDA,SGS
Model Number: DPP

Payment & Shipping Terms:

Minimum Order Quantity: 50m
Price: 18$/m
Packaging Details: Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10000m/day
Contact Now
Detailed Product Description
Materil: Polyester Width: 630mm
Weave Type: Plain Elasticity: Low
Mesh Count: 400-600 Mesh Roll Length: 30-70 M/roll
Free Sample: Accepted Usage: Water Filter
Type: Filter Elements Hole Shape: Square
HS Code: 5911200090

Water Filter Screen Mesh 12 Micron mesh opening /filter mesh
Water filter screen mesh is plain weaving, materials is polyester mesh,the mesh opening is 12um , good heat setting and washing, without silicon and heavy metal, quality can meet FDA standard.
The filter mesh widely used in water filter :
Mesh size : 630mm * 1200mm, 640mm * 950mm, 650mm * 900mm.
and all kinds of industrial filtration and separation, such as chemicals, pharmaceutical, agriculture, food, ect., which can be made into filter bags, insert plastic mould filter, ect.

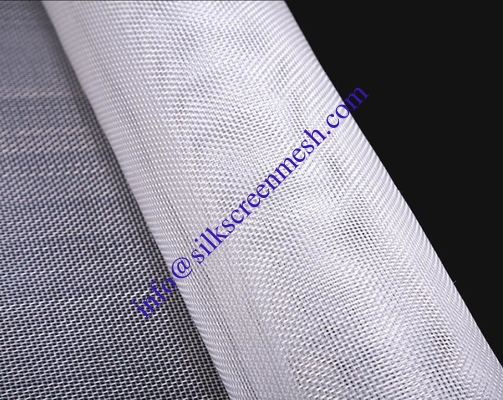

fine nylon mesh.jpg

Food grade polyester filter mesh
MaterialFDA passed food grade polyester filter mesh
Mesh opening12 micron
Weave StylePlain Weave
Thread Diameter21 micron
Monofilament StyleYes
Thickness39 micron
Hole Shapesquare
Roll length30-70 meters or customized
Roll width630mm 650mm 670mm or customized
Usagewater filter
Typewater filter mesh, filter cloth, filter disc, filter cylinder









( factory offer) PA and PE, XXX series gg micron flour mesh.jpg
Main Applications for Polyester filter Mesh

Water filter

Filter bags
Air and liquid Filtration
White Goods
Injection Moulding
Filter Belts
Rotational Filters
Advantages of the material:
Our filter products are ideal materials for sieving, straining or filtering most liquids, powders or sludges. The threads are perfectly round in section and are extruded to very precise and uniform diameters.
1.due to their uniformity they can be woven with great precision to give exact and regular apertures
2. the resulting material has a very smooth surface so that the filtered particles will easily separate from it
3.have great strength and elasticity.

nylon filter mesh

Production Process

We buy yarn from Jintong, Switzerland and Japan, we inspect the yarn when they unloaded in our factory. (tolerance, tensile strength, physics test etc.).
After that, we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving according to orders.
Initial survey will be done after weaving.Then start heat setting treatment and physical properties inspection, before we get tentative finished rolls(60-500 meters big rolls).
In the end, we’ll cut the small rolls(30m-70m) according to customer orders after a final inspection.

nylon mesh
Packing and shipping
Packed in rolls:                                                    Packed by folded:
Pack the mesh with paper and plastic pipe,        Fold the mesh into plastic bag ,then in carton
then in carton.Suitable for large quantity and      Suitable for small quantity and have no
the mesh has better surface then folding type.    requirement on the crease.
mesh filter bags.jpg    filter bag.jpg
1.For small quantity, shipped by courier;
2.For large quantity, shipped by air or by sea;
3.The tracking number will be emailed to you after the order has been shipped;
4.If you have the forwarder in China, we can send to your forwarder for free.
Delivery time:usually within 7 days ,according to client’s order quantity.
filter nylon mesh
Polyester filter mesh widely used in areas as filtration and separation industry such as food industry for milling filtering and flour milling, milling and other grains milling. Like glucose production, milk powder, soybean milk
It is used for filter materials,package materials,clothing materials,handicraft, the freezing equipment air conditioning products,air fresheners and air purification treatment equipment etc.
Polyester filter mesh is also applied to Liquid & Dust filtration such as filters, filter bags, dust filter bags.

flour strainer mesh (FDA Standard).jpg
Common mesh items and their usage area:
Wine impurities filtration generally use between 150-200 mesh, filtering soya-bean milk generally use between 120-150 mesh and paint filter using 150-300 commonly.
100 mesh: It is suitable for the tofu and soya-bean milk and other food and beverage home-made filtering.
It filters fast with good quality, it' s often used in shops& workshop, for their bulk production demands.
120 mesh: It' s suitable for the first time fermentation wine skin slag separation, compared with 200 mesh, it can improve the speed of initial filtering.
After beginning filtering, we can use 200 meshfor secondary fine filtration.
150 mesh: It is suitable for soybean milk, fruit juice and other homemade drinks filtering, it' s durable, easy to clean, non-toxic harmless.
If it' s too thick for you, you can also choose low mesh, such as 100 mesh.
200 mesh can serve as a filter for alcohol, tea and painting, it' s durable, easy to clean, non-toxic harmless.
250 mesh can be used as a tea filters, it' s non-toxic harmless, good and inexpensive.
Mesh aperture performs uniform and fine, it' s durable; The weight of it is light, and it' s not rust, easy to be used.
400 mesh can filter the boiling water scale, rust and other tiny impurities. It's flow is moderate, suitable for family use.
500 mesh is a good choice to filter drinking water scale, such as bleaching powder suspended solids. It' s cleaning is convenient, durable, non-toxic harmless.
Water Filter Screen Mesh 12 Micron mesh opening 630 mm width  /filter mesh
