White Nylon Filter Mesh Fabric / Paint Filter Screen Cloth 80 100 Mesh
Place of Origin | Shanghai China |
---|---|
Brand Name | SPRING |
Certification | ISO9001 |
Model Number | JPP |
Minimum Order Quantity | 30m |
Price | US $ 0.8 - 15 / m |
Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time | 2-5 Days |
Payment Terms | TT/LC/Western Union/paypal/others |
Supply Ability | 5500000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Nylon | Type | Initial Effect |
---|---|---|---|
Use | Water Filtration | Applicable | Water |
Opening Ratio | 20-70 (%) | Weave Pattern | Plain Weave |
Monofilament Diameter | 0.035-0.55 (mm) | Number Of Mesh | 10-600 (mesh / Inch) |
Radial Breaking Strength | 30-70 (N/cm) | Width | 1-3.65 Meters Customizable (m) |
Density | 4-240 (root/10cm) |
White Nylon Filter Mesh Fabric / Paint Filter Screen Cloth 80 100 Mesh
product information
|
|
Name | Filter mesh |
Material | Nylon |
Specifications | DPP4-240T |
Number of orders | 10-600 mesh |
Wire diameter | 31-550 microns |
Mesh | 5-2000 μm |
Thickness | 60-1100 microns |
Conventional roll width | 1-3.65 meters, can be customized |
Conventional roll length | 30-70 meters, can be customized |
Free sample | A4 size |

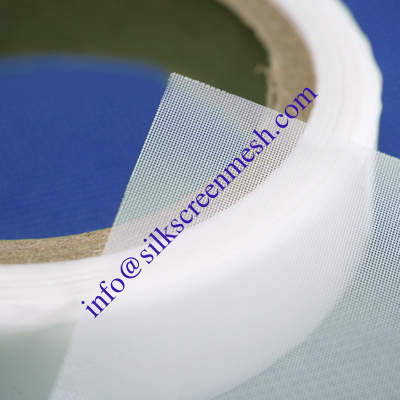

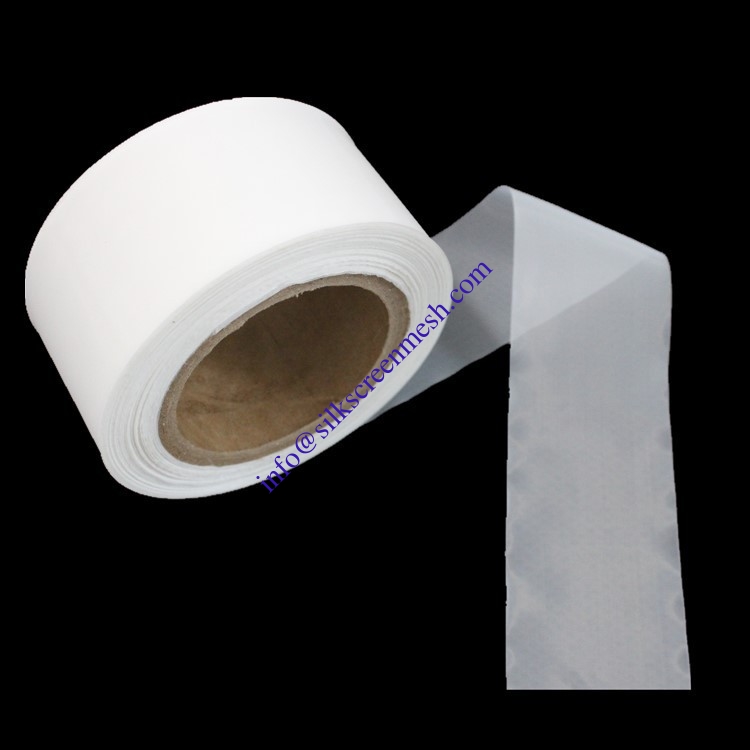

Products real shot
Deep processing series: cutting, cutting

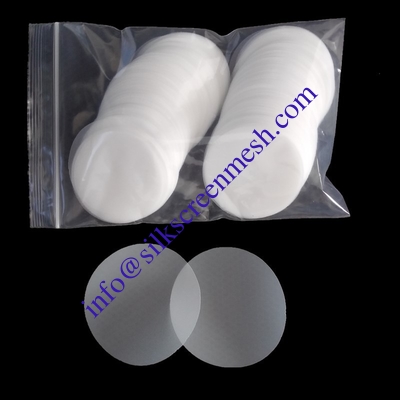

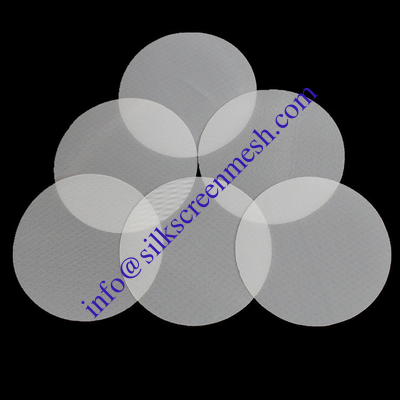

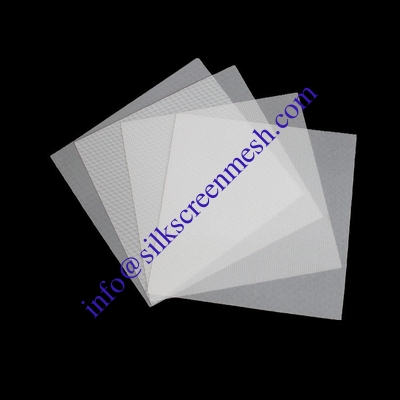

Laser cutting piece: round/square
Milk filter bag
Rosin filter bag
Weaving method: monofilament weave

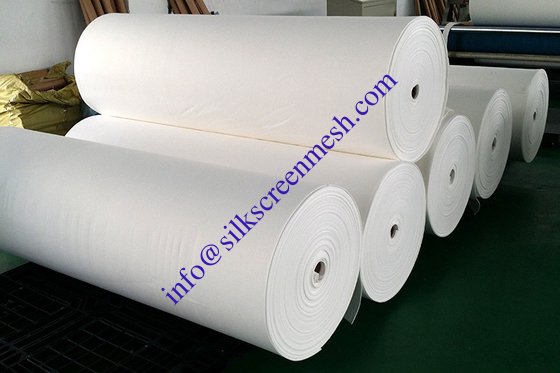

Workshop real shot
NYLON Filter Mesh
100% Nylon Mesh | |||||||
Type | Weave | Mesh/CM | Mesh/inch | Wire Dia. (um) |
Mesh Opening(um) | Open Area (%) |
Thickness (um) |
PA-4/1950 | PW | 4 | 10 | 550 | 1950 | 61 | 1096 |
PA-5/1500 | PW | 5 | 13 | 500 | 1500 | 56 | 998 |
PA-6/1267 | PW | 6 | 15 | 400 | 1267 | 58 | 796 |
PA-7/1079 | PW | 7 | 18 | 350 | 1079 | 57 | 691 |
PA-8/900 | PW | 8 | 20 | 350 | 900 | 52 | 697 |
PA-9/861 | PW | 9 | 24 | 250 | 861 | 60 | 492 |
PA-10/750 | PW | 10 | 25 | 250 | 750 | 56 | 494 |
PA-12/533 | PW | 12 | 30 | 300 | 533 | 41 | 590 |
PA-14/514 | PW | 14 | 35 | 200 | 514 | 52 | 391 |
PA-16/425 | PW | 16 | 40 | 200 | 425 | 46 | 393 |
PA-18/356 | PW | 18 | 45 | 200 | 356 | 41 | 395 |
PA-20/300 | PW | 20 | 50 | 200 | 300 | 36 | 396 |
PA-24/267 | PW | 24 | 60 | 150 | 267 | 41 | 292 |
PA-28/207 | PW | 28 | 70 | 150 | 207 | 34 | 295 |
PA-30/213 | PW | 30 | 76 | 120 | 213 | 41 | 230 |
PA-32/213 | PW | 32 | 80 | 100 | 213 | 46 | 186 |
PA-36/178 | PW | 36 | 90 | 100 | 178 | 41 | 189 |
PA-40/150 | PW | 40 | 100 | 100 | 150 | 36 | 192 |
PA-44/127 | PW | 44 | 110 | 100 | 127 | 31 | 195 |
PA-48/128 | PW | 48 | 120 | 80 | 128 | 38 | 150 |
PA-56/119 | PW | 56 | 142 | 60 | 119 | 44 | 96 |
PA-59/109 | PW | 59 | 150 | 60 | 109 | 42 | 110 |
PA-64/96 | PW | 64 | 163 | 60 | 96 | 38 | 116 |
PA-72/89 | PW | 72 | 183 | 50 | 89 | 41 | 90 |
PA-80/75 | PW | 80 | 203 | 50 | 75 | 36 | 93 |
PA-88/71 | PW | 88 | 224 | 43 | 71 | 39 | 70 |
PA-96/61 | PW | 96 | 244 | 43 | 61 | 34 | 74 |
PA-100/57 | PW | 100 | 254 | 43 | 57 | 32 | 75 |
PA-104/53 | PW | 104 | 264 | 43 | 53 | 31 | 76 |
PA-110/48 | PW | 110 | 280 | 43 | 48 | 28 | 78 |
PA-120/40 | PW | 120 | 305 | 43 | 40 | 23 | 80 |
PA-130/34 | PW | 130 | 330 | 43 | 34 | 19 | 83 |
PA-140/33 | PW | 140 | 355 | 38 | 33 | 22 | 73 |
PA-150/28 | TW | 150 | 380 | 39 | 28 | 17 | 75 |
PA-157/25 | TW | 157 | 400 | 39 | 25 | 15 | 76 |
PA-165/30 | TW | 165 | 420 | 30 | 30 | 25 | 54 |
PA-200/21 | TW | 200 | 500 | 30 | 21 | 17 | 56 |
Performance and use
1. Performance: acid and alkali resistance, good corrosion resistance. The resistance is low, it can be washed repeatedly, and the economy is extremely high. Filtration efficiency is not affected by cleaning. Good impact strength.
2. Uses: Refrigerated air conditioning product equipment, air purifiers and air purification treatment equipment and engineering dust-proof primary effect filtration.
