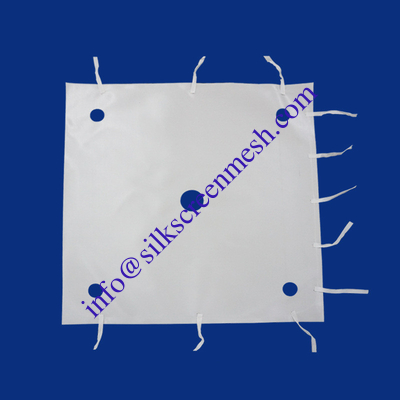

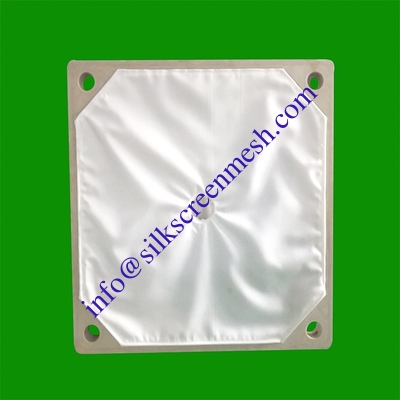

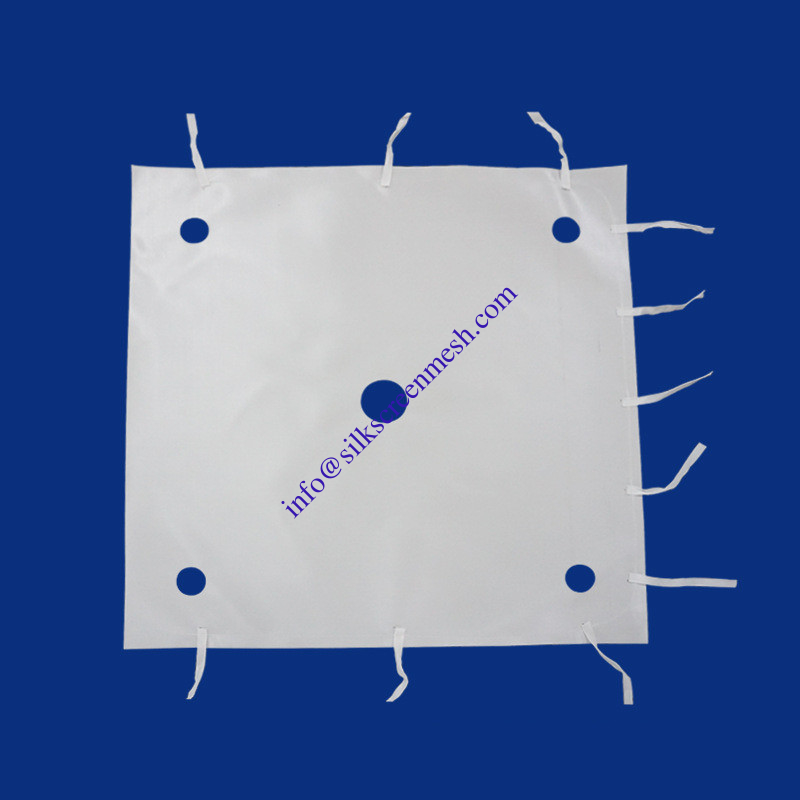

Product Name: Plate and frame filter press filter cloth
Material: polyester, polypropylene, nylon, etc.
Scope of application: solid-liquid separation application fields such as filter press, centrifuge, filter, etc.
Uses: filtration, pressing
Applicable objects: chemical, metallurgy, petroleum, printing and dyeing, ceramics, food, pharmaceutical, biological, building materials, environmental water treatment, coal washing, metal tailings, non-metallic minerals and other industries are widely used.
Specifications: a variety, support customization
Weaving method: plain, twill, satin
Filtration accuracy: Select the appropriate filtration accuracy according to the working conditions (high density up to 1 micron)
Performance: acid, alkali and temperature resistance.
Product characteristics and parameters
1. Our filter cloth is processed after calendering and heat setting, so that the filter cloth has stable performance during operation and is not easy to be deformed.

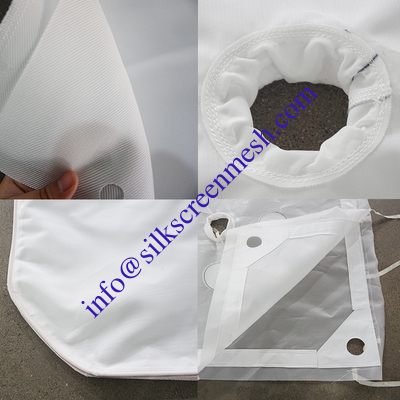

2. The filter bag process is good, the line is neat, the high-strength sewing thread is selected, and multiple stitches are used to prevent cracking.
3. The filter bag has good sealing performance, fast filtration speed and high dewatering rate of filter cake.
4. Filter bag unloading cake is easy, high strength, wear resistance, easy to clean, long service life
Main use: Widely used in steel, chemical, metallurgy, petrochemical, pharmaceutical, food, mineral, coal, ceramics, activated carbon filtration, dye factory,
In the fields of pigment factory, titanium dioxide factory, sewage treatment, etc., it is applicable to 315,420,500,630,650,800,810,870,920,
930, 1000, 1200, 1250, 1500, 1600, 2000 and other types of plate frame, box type, diaphragm filter press, the first choice of the major filter press factory, centrifuge factory supporting bags.
Filter press bag size (MM): 900x900, 1000x1000, 1100x1100, 1350x1350, 1600x1600.
Centrifuge bag regular size (MM): diameter 600,800,1000,1200.
Product application industry
