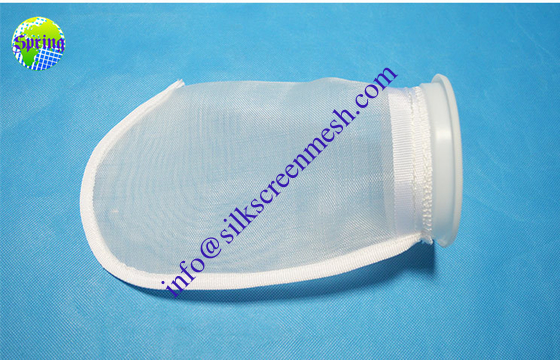

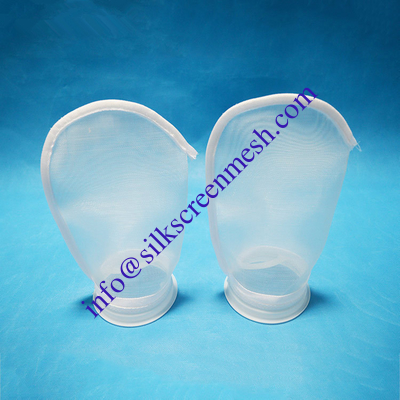

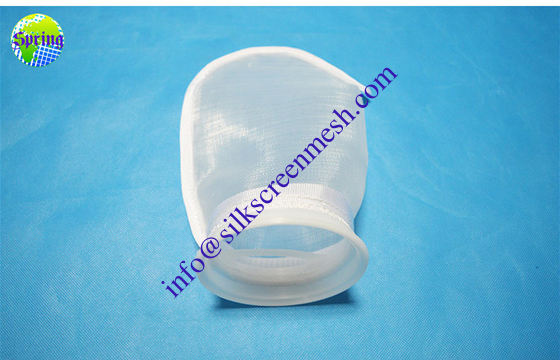

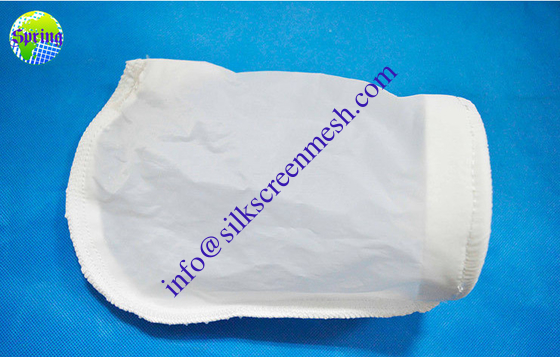

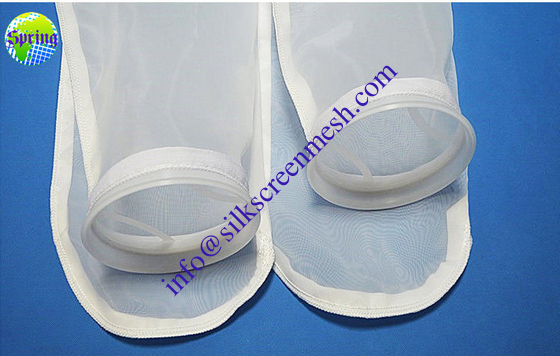

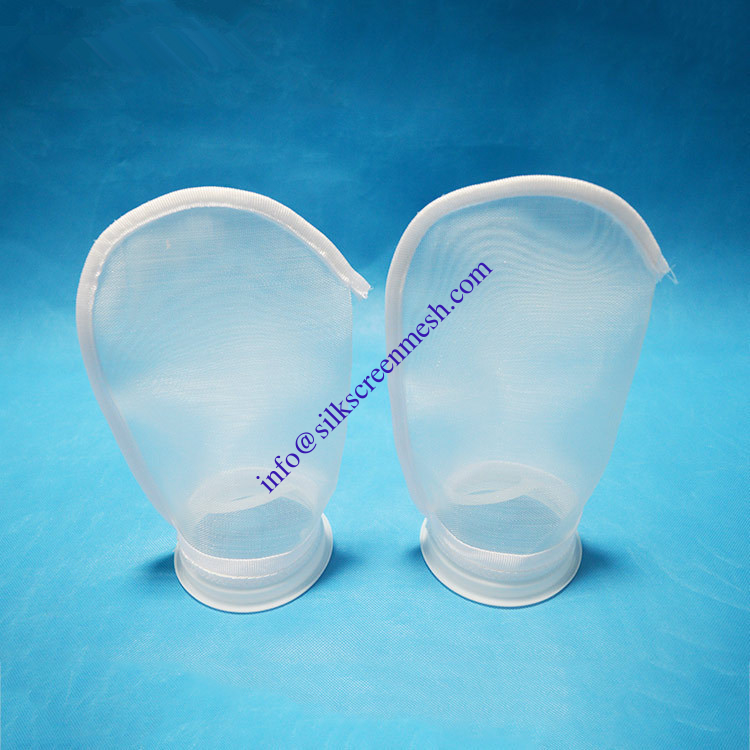

200 mesh nylon bag monofilament bag industrial filter bag liquid MO nylon filter bag
Place of Origin | SHANGHAI CHINA |
---|---|
Brand Name | SPRING |
Certification | ISO9001 |
Model Number | Nylon/JPP |
Minimum Order Quantity | 30M |
Price | US $ 0.5 - 3 / m |
Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time | 2-5 Days |
Payment Terms | TT/LC/Western Union/paypal/others |
Supply Ability | 1000000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Material | Nylon Mesh | Scope Of Application | Aquarium, Filter, Water Purifier |
---|---|---|---|
Use | Solid-liquid Separation | Type | Efficient |
Applicable Object | Water | Mesh | 10, 25, 50, 100, 150, 200, 250, 300, 350, 400, 500 (mesh / Inch) |
Weave Pattern | Plain Weave | Filtration Accuracy | 1,3,5,10,25,50,100,150,200,250,300,350,400,500 (μm) |
Filtration Area | By Specification (m2) | Performance | Waterproof, Low Temperature Resistant, High Temperature Resistant, Oil Resistant, Acid Resistant, Antistatic, Alkali Resistant |
Product Description
Nylon monofilament filter bag ring can have stainless steel ring mouth, PP ring mouth and PE plastic ring mouth, including a variety of different bag bottom, bag top design.
Nylon monofilament filter bag uses the principle of surface filtration to isolate the particles larger than its own mesh. The non-deformed monofilament wire is woven into a net according to the specific pattern. The intersection of the wire is welded to increase the strength, and the filter grade is achieved. Absolute accuracy for high precision applications in the paint, ink, resin and coating industries. The filter bag is further provided with a twill edge at the bottom and side joints to prevent the leakage of the nylon monofilament of the pinhole to be repeatedly cleaned, thereby saving the filtration cost.
Size Chart | |||||||
Filter bag model | 1# | 2# | 3# | 4# | 5# | 11# | 12# |
Filter bag size (mm) | 180*430 | 180*820 | 106*230 | 106*380 | 150*510 | 230*430 | 230*820 |
Dimensional tolerance (mm) | ≤0.3-0.8 | ||||||
Filtration area (㎡) | 0.25 | 0.5 | 0.056 | 0. 115 | 0.3 | 0.45 | 0.8 |
Impurity full amount (kg) | 2 | 3-4 | 0.5 | 1 | 3-4 | 5-6 | 8 |
Filtration accuracy (mesh) | 0.5,1,3,5,10,15,25,50,75,100,150,200 | ||||||
Replacement pressure difference(kg/cm²) | PE/PP*1.03-1.72,M01.03-2.41 | ||||||
Operating temperature(℃) | PE is 135, PP is 94, and M0 is 135. | ||||||
Note: In the precision change table, the larger the mesh number, the smaller the gap of the filter bag and the finer the precision of the filter; the smaller the mesh, the larger the gap of the filter bag and the coarser the filter. | |||||||
Type | Weave | Mesh Count (cm) |
Mesh Count (/inch) |
Wire Diameter (um) |
Mesh Opening(um) | Open Area (%) |
Thickness (um) |
PA-4/1950 | PW | 4 | 10 | 550 | 1950 | 61 | 1096 |
PA-5/1500 | PW | 5 | 13 | 500 | 1500 | 56 | 998 |
PA-6/1267 | PW | 6 | 15 | 400 | 1267 | 58 | 796 |
PA-7/1079 | PW | 7 | 18 | 350 | 1079 | 57 | 691 |
PA-8/900 | PW | 8 | 20 | 350 | 900 | 52 | 697 |
PA-9/861 | PW | 9 | 24 | 250 | 861 | 60 | 492 |
PA-10/750 | PW | 10 | 25 | 250 | 750 | 56 | 494 |
PA-12/533 | PW | 12 | 30 | 300 | 533 | 41 | 590 |
PA-14/514 | PW | 14 | 35 | 200 | 514 | 52 | 391 |
PA-16/425 | PW | 16 | 40 | 200 | 425 | 46 | 393 |
PA-18/356 | PW | 18 | 45 | 200 | 356 | 41 | 395 |
PA-20/300 | PW | 20 | 50 | 200 | 300 | 36 | 396 |
PA-24/267 | PW | 24 | 60 | 150 | 267 | 41 | 292 |
PA-28/207 | PW | 28 | 70 | 150 | 207 | 34 | 295 |
PA-30/213 | PW | 30 | 76 | 120 | 213 | 41 | 230 |
PA-32/213 | PW | 32 | 80 | 100 | 213 | 46 | 186 |
PA-36/178 | PW | 36 | 90 | 100 | 178 | 41 | 189 |
PA-40/150 | PW | 40 | 100 | 100 | 150 | 36 | 192 |
PA-44/127 | PW | 44 | 110 | 100 | 127 | 31 | 195 |
PA-48/128 | PW | 48 | 120 | 80 | 128 | 38 | 150 |
PA-56/119 | PW | 56 | 142 | 60 | 119 | 44 | 96 |
PA-59/109 | PW | 59 | 150 | 60 | 109 | 42 | 110 |
PA-64/96 | PW | 64 | 163 | 60 | 96 | 38 | 116 |
PA-72/89 | PW | 72 | 183 | 50 | 89 | 41 | 90 |
PA-80/75 | PW | 80 | 203 | 50 | 75 | 36 | 93 |
PA-88/71 | PW | 88 | 224 | 43 | 71 | 39 | 70 |
PA-96/61 | PW | 96 | 244 | 43 | 61 | 34 | 74 |
PA-100/57 | PW | 100 | 254 | 43 | 57 | 32 | 75 |
PA-104/53 | PW | 104 | 264 | 43 | 53 | 31 | 76 |
PA-110/48 | PW | 110 | 280 | 43 | 48 | 28 | 78 |
PA-120/40 | PW | 120 | 305 | 43 | 40 | 23 | 80 |
PA-130/34 | PW | 130 | 330 | 43 | 34 | 19 | 81 |
PA-140/33 | PW | 140 | 355 | 38 | 33 | 22 | 72 |
PA-150/28 | TW | 150 | 380 | 39 | 28 | 17 | 73 |
PA-157/25 | TW | 157 | 400 | 39 | 25 | 15 | 74 |
PA-165/30 | TW | 165 | 420 | 30 | 30 | 25 | 54 |
PA-200/21 | TW | 200 | 500 | 30 | 21 | 17 | 56 |
PA-212/8 | TW | 212 | 540 | 39 | 8 | 3 | 75 |
PA-240/3 | TW | 240 | 600 | 39 | 3 | 1 | 76 |
The above is theoretical data, for your reference only! |
