Ink Knife Stainless Steel / Plastic Ink Knife Color Matching Oil Adjuster Paint Adjuster Screen Printing Equipment

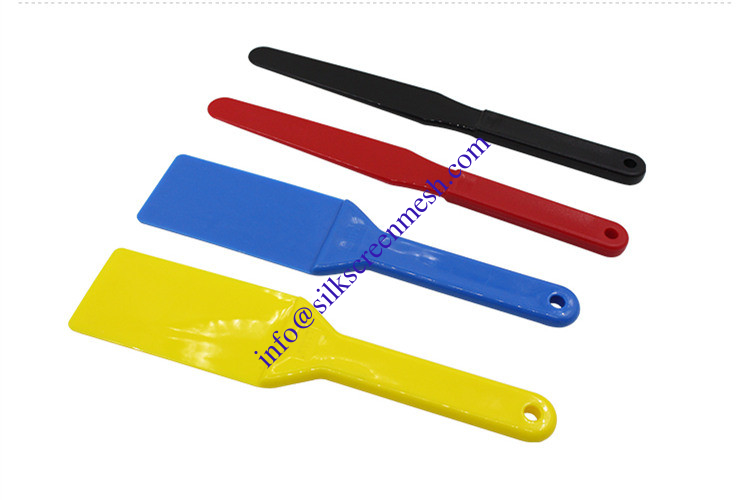

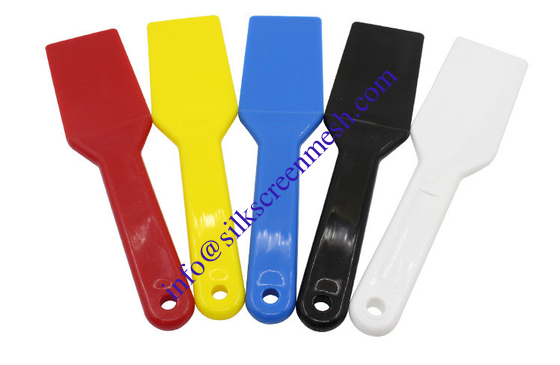

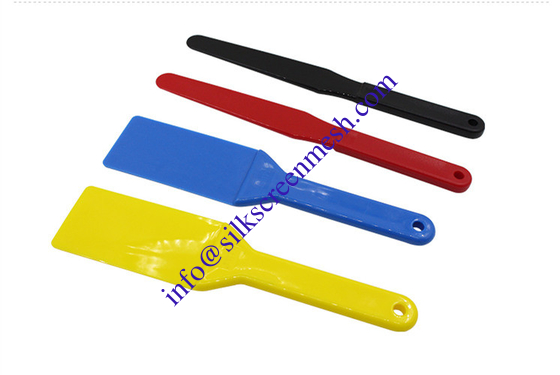

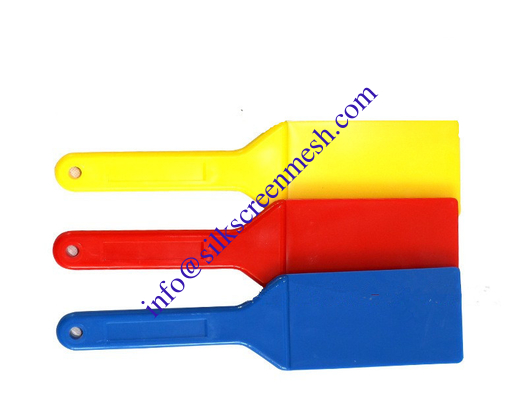

Plastic Ink Knife Product Introduction
Made of polypropylene, tough, moderately hard and resistant to corrosion.
The rounded design ensures that no part of the printing machine is worn.
The streamlined design and lightweight characteristics make this product extremely popular with printers.
Each box is packed in a set of four colors (one each for red, yellow, blue and black)
Four-color plastic ink shovel (red, yellow, blue, black)
Volume (length x width)
270 mm x 70 mm (10 3/4 "x 2 3/4")

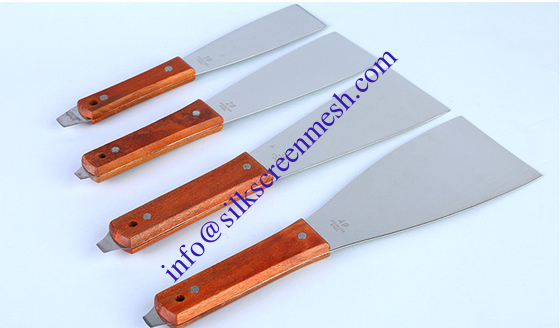

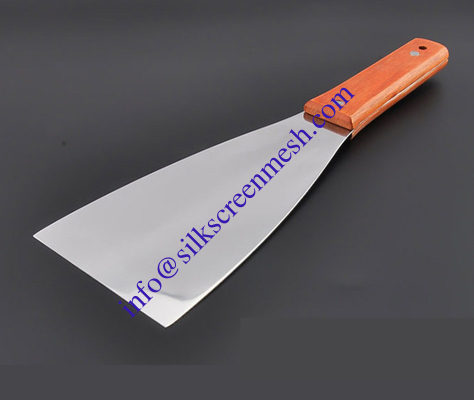

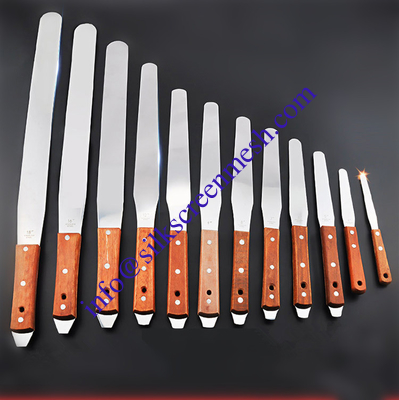

Stainless steel ink knife product description
Features:
1. Good mirror and flexibility
2. Light weight, does not damage the steel plate, printing machine blade, good flexibility, good coplanarity with the steel plate
3. Higher mechanical strength than ordinary materials, heat resistance, low friction coefficient, wear resistance, oil resistance, weak acid resistance, alkali resistance and general solvents, non-toxic
4. Stronger than ordinary plastic scrapers, not easy to break or deform
5. Does not generate static electricity and does not conduct electricity
Product Name |
Product Specification |
Product Use |
5" belt with oil adjustment knife (straight shape) |
Overall length: 260mm |
5" is suitable for proofing, cleaning online ink and opening cap |
Knife length: 135mm |
Knife width: 30mm |
6" belt with oil adjustment knife (straight shape) |
Overall length: 280mm |
6" is suitable for lKg proofing, cleaning online ink and opening |
Knife length: 150mm |
Knife width: 30mm |
7" belt with oil adjustment knife (straight shape) |
Overall length: 305rmn |
7" is suitable for lKg proofing, cleaning online ink and opening cover |
Knife length: 175mm |
Knife width: 32mm |
8" belt with oil adjustment knife (straight shape) |
Overall length: 330mm |
8" for 2Kg proofing, cleaning online ink and opening |
Knife length: 200mm |
Knife width: 32mm |
9" belt with oil adjustment knife (straight shape) |
Overall length: 360mm |
9" for 3Kg proofing, cleaning online ink and opening |
Knife length: 230mm |
Knife width: 33mm |
10" belt with oil adjustment knife (straight shape) |
Overall length: 380mm |
10" for 3Kg proofing, cleaning online ink and opening |
Knife length: 250mm |
Knife width: 35mm |
12" belt with oil adjustment knife (straight shape) |
Overall length: 430mm |
12" for 3Kg proofing, cleaning online ink and opening |
Knife length: 300mm |
Knife width: 38mm |
14" belt with oil adjustment knife (straight shape) |
Overall length: 482mm |
14" for 3Kg proofing, cleaning online ink and opening |
Knife length: 340mm |
Knife width: 40mm |
16" belt with oil adjustment knife (straight shape) |
Overall length: 530mm |
16" for 4Kg proofing, cleaning online ink and opening |
Knife length: 400mm |
Knife width: 45mm |
18" belt with oil adjustment knife (straight shape) |
Overall length: 580mm |
18" for 5Kg proofing, cleaning online ink and opening |
Knife length: 450mm |
Knife width: 45mm |
