Ultrasonic Welding filter bag, nylon or polyester mesh filters, filter mesh fabric -- Factory supply
Place of Origin | shanghai China |
---|---|
Brand Name | SPRING |
Certification | FDA, Silicone Oil Quantification |
Model Number | JPP, DPP |
Minimum Order Quantity | 30M |
Price | www.silkscreenmesh.com |
Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time | 2-5 Days |
Payment Terms | TT/LC/Western Union/paypal/others |
Supply Ability | 5500000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Nylon, Polyester | Purpose | Solid-liquid Separation |
---|---|---|---|
Type | Efficient | Applicable | Food |
Mesh | 80 (mesh / Inch) | Weave Pattern | Plain Weave |
Filtering Accuracy | 200 (μm) | Filtration Area | 0.1 (m2) |
Performance | High Temperature Resistance, Acid Resistance, Alkali Resistance, Food Grade |
Ultrasonic Welding filter bag, nylon or polyester mesh filters, filter mesh fabric -- Factory supply
Our company develops and produces various types of filter bags, environmental protection bags, non-woven filter bags, nylon mesh filter bags, paint filter bags, paint filter bags, dust bags, liquid filter bags, dust filter bags, liquid filter bags, dust removal Filter bags, water filter bags, coffee filter bags, air filter bags, centrifuge filter bags, vacuum cleaner filter bags, medium efficiency filter bags, polyester filter bags, filter press filter bags, anode filter bags, etc.

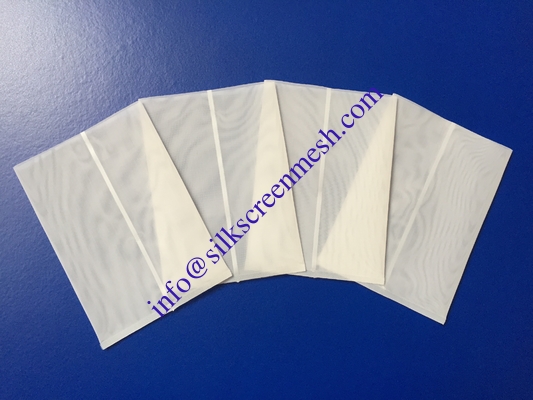

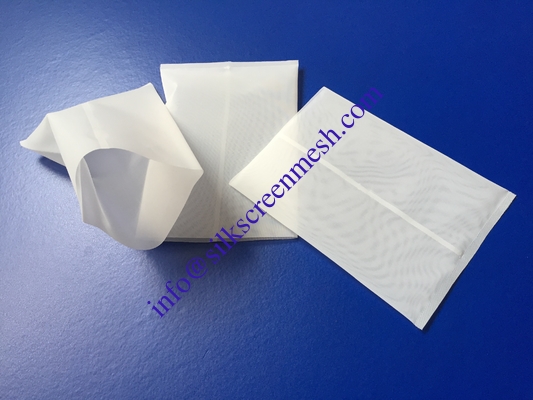

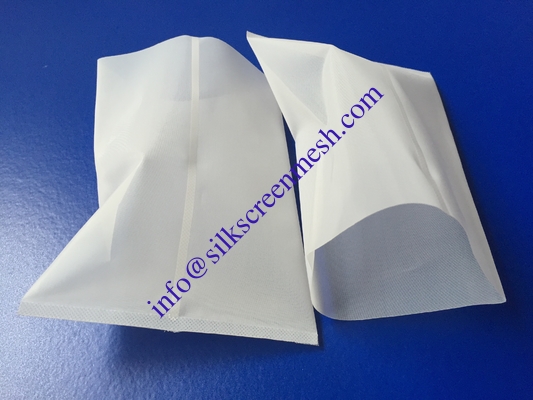

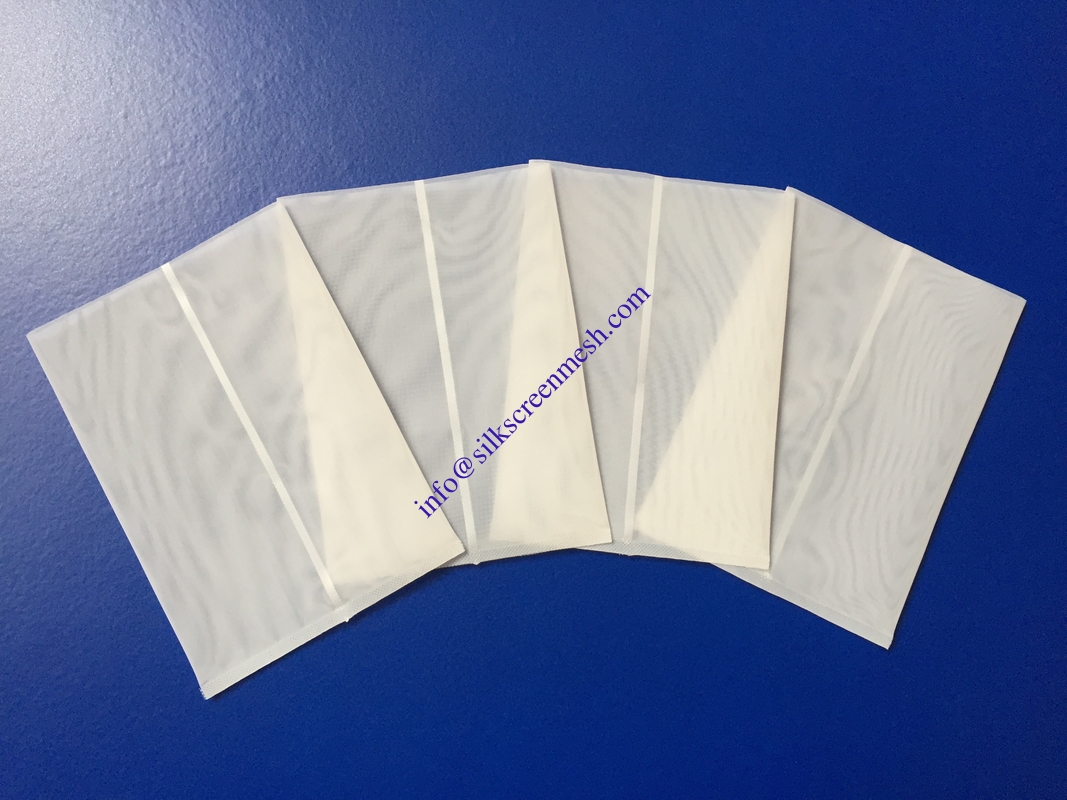

Our products have a variety of processing methods, the picture shows stitching processing, and there is also hemming processing, customers can choose, size, specifications, styles, labels can be customized. The mesh size can be selected. The mesh screen has a uniform filtering effect, which can be washed and used without deformation. Filtering milk, soy milk, coffee juice is the choice. Our products are produced in food-grade safe non-toxic and harmless filter bags. They are IS900 certified and FDA food certified. Exported to Europe, America and Southeast Asia.
Product characteristics and parameters
1. Operating temperature: 130 ℃ -150 ℃
2. Filtration accuracy: 20-840μm
3. Mesh number: 20-600 mesh
4. Food grade filter bag, a good choice for filtering milk, soy milk, coffee juice.
5. Imported production equipment imported from Tianma, Switzerland, with advanced production technology and uniform filtering effect on the mesh.
6. Residual ultra-dense filtration, can be repeatedly cleaned and used, economical.
7. The products are exported to Southeast Asia, Europe and America, and can be purchased and used with confidence.
The number of meshes is the number of holes, which is the number of holes per square inch. The larger the mesh size, the smaller the pore size. In general, the number of mesh x the pore diameter (micron) = 15000.
100% Nylon Mesh | |||||||
Type | Weave | Mesh/CM | Mesh/inch | Wire Dia. (um) |
Mesh Opening(um) | Open Area (%) |
Thickness (um) |
PA-4/1950 | PW | 4 | 10 | 550 | 1950 | 61 | 1096 |
PA-5/1500 | PW | 5 | 13 | 500 | 1500 | 56 | 998 |
PA-6/1267 | PW | 6 | 15 | 400 | 1267 | 58 | 796 |
PA-7/1079 | PW | 7 | 18 | 350 | 1079 | 57 | 691 |
PA-8/900 | PW | 8 | 20 | 350 | 900 | 52 | 697 |
PA-9/861 | PW | 9 | 24 | 250 | 861 | 60 | 492 |
PA-10/750 | PW | 10 | 25 | 250 | 750 | 56 | 494 |
PA-12/533 | PW | 12 | 30 | 300 | 533 | 41 | 590 |
PA-14/514 | PW | 14 | 35 | 200 | 514 | 52 | 391 |
PA-16/425 | PW | 16 | 40 | 200 | 425 | 46 | 393 |
PA-18/356 | PW | 18 | 45 | 200 | 356 | 41 | 395 |
PA-20/300 | PW | 20 | 50 | 200 | 300 | 36 | 396 |
PA-24/267 | PW | 24 | 60 | 150 | 267 | 41 | 292 |
PA-28/207 | PW | 28 | 70 | 150 | 207 | 34 | 295 |
PA-30/213 | PW | 30 | 76 | 120 | 213 | 41 | 230 |
PA-32/213 | PW | 32 | 80 | 100 | 213 | 46 | 186 |
PA-36/178 | PW | 36 | 90 | 100 | 178 | 41 | 189 |
PA-40/150 | PW | 40 | 100 | 100 | 150 | 36 | 192 |
PA-44/127 | PW | 44 | 110 | 100 | 127 | 31 | 195 |
PA-48/128 | PW | 48 | 120 | 80 | 128 | 38 | 150 |
PA-56/119 | PW | 56 | 142 | 60 | 119 | 44 | 96 |
PA-59/109 | PW | 59 | 150 | 60 | 109 | 42 | 110 |
PA-64/96 | PW | 64 | 163 | 60 | 96 | 38 | 116 |
PA-72/89 | PW | 72 | 183 | 50 | 89 | 41 | 90 |
PA-80/75 | PW | 80 | 203 | 50 | 75 | 36 | 93 |
PA-88/71 | PW | 88 | 224 | 43 | 71 | 39 | 70 |
PA-96/61 | PW | 96 | 244 | 43 | 61 | 34 | 74 |
PA-100/57 | PW | 100 | 254 | 43 | 57 | 32 | 75 |
PA-104/53 | PW | 104 | 264 | 43 | 53 | 31 | 76 |
PA-110/48 | PW | 110 | 280 | 43 | 48 | 28 | 78 |
PA-120/40 | PW | 120 | 305 | 43 | 40 | 23 | 80 |
PA-130/34 | PW | 130 | 330 | 43 | 34 | 19 | 83 |
PA-140/33 | PW | 140 | 355 | 38 | 33 | 22 | 73 |
PA-150/28 | TW | 150 | 380 | 39 | 28 | 17 | 75 |
PA-157/25 | TW | 157 | 400 | 39 | 25 | 15 | 76 |
PA-165/30 | TW | 165 | 420 | 30 | 30 | 25 | 54 |
PA-200/21 | TW | 200 | 500 | 30 | 21 | 17 | 56 |
PA-240/3 | TW | 240 | 600 | 39 | 3 | 0.5 | 68 |
Our company develops and produces various types of filter bags, environmental protection bags, non-woven filter bags, nylon mesh filter bags, paint filter bags, paint filter bags, dust bags, liquid filter bags, dust filter bags, liquid filter bags, dust removal Filter bags, water filter bags, coffee filter bags, air filter bags, centrifuge filter bags, vacuum cleaner filter bags, medium efficiency filter bags, polyester filter bags, filter press filter bags, anode filter bags, etc.
Our products have a variety of processing methods, the picture shows stitching processing, and there is also hemming processing, customers can choose, size, specifications, styles, labels can be customized. The mesh size can be selected. The mesh screen has a uniform filtering effect, which can be washed and used without deformation. Filtering milk, soy milk, coffee juice is the choice. Our products are produced in food-grade safe non-toxic and harmless filter bags. They are IS900 certified and FDA food certified. Exported to Europe, America and Southeast Asia.
Product characteristics and parameters
1. Operating temperature: 130 ℃ -150 ℃
2. Filtration accuracy: 20-840μm
3. Mesh number: 20-600 mesh
4. Food grade filter bag, a good choice for filtering milk, soy milk, coffee juice.
5. Imported production equipment imported from Tianma, Switzerland, with advanced production technology and uniform filtering effect on the mesh.
6. Residual ultra-dense filtration, can be repeatedly cleaned and used, economical.
7. The products are exported to Southeast Asia, Europe and America, and can be purchased and used with confidence.
The number of meshes is the number of holes, which is the number of holes per square inch. The larger the mesh size, the smaller the pore size. In general, the number of mesh x the pore diameter (micron) = 15000.
For any further news, just feel free to contact us.
