nylon filter mesh / bolting cloth 64T white nylon filter bags

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001,ISO14001,FDA,SGS
Model Number JPP
Minimum Order Quantity 30m
Price 1.5-9.8$/m
Packaging Details Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.210cm*25cm*25cm,185cm*33cm*33cm,55cm*45cm*45cm.
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materil Nylon Width 0.1m-3.7m
Weave Type Plain Elasticity Low
Mesh Count 18mesh-500mesh Roll Length 30-70 M/roll
Free Sample Accepted Usage Liquid Filter
Type Filter Elements Hole Shape Square
HS Code 5911200090
Leave a Message
Product Description

nylon filter mesh / bolting cloth 64T white nylon filter bags

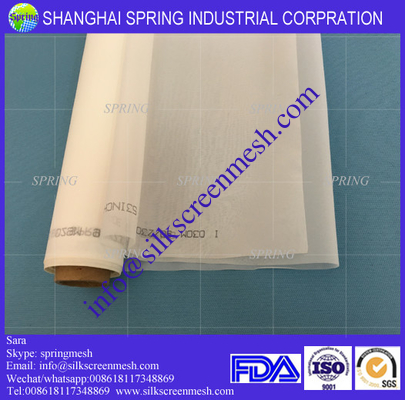

nylon filter mesh / bolting cloth 64T white nylon filter bags 0

Product name: nylon filter mesh / bolting cloth 64T white nylon filter bags

SPRING provide nylon filter mesh for liquid filtration, separation and sifting, with special-made processing machines and equipment, SPRING is capable of heat-slitting mesh into mesh ribbons without fraying edges.It is widely used in filteration (wather,flour, juices. soybean milk, oil, cheese, air purification, power coating filtering in industry etc. ), printing and dyeing, the industries of petroleum, chemical, metallurgy, cement, environmental dedusting etc.

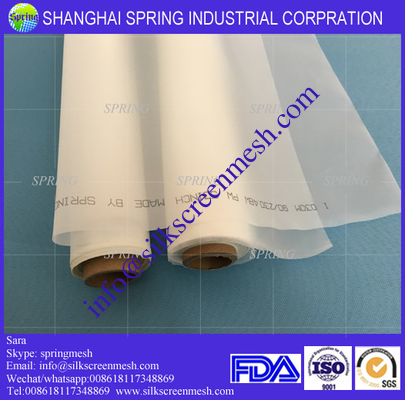

nylon filter mesh / bolting cloth 64T white nylon filter bags 1

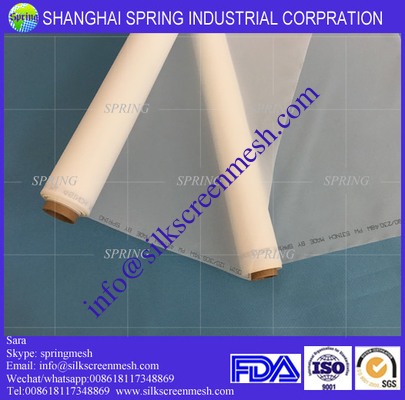

nylon filter mesh / bolting cloth 64T white nylon filter bags 2

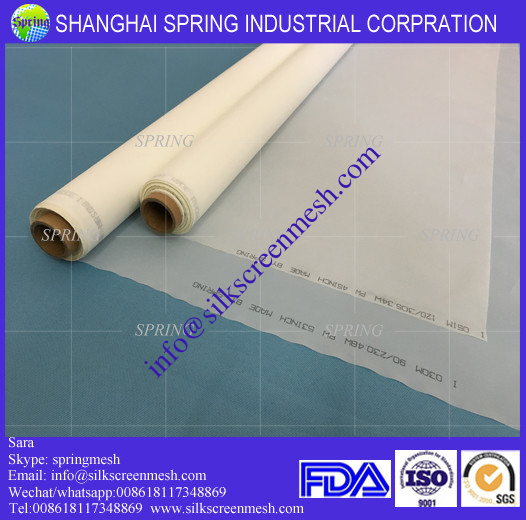

nylon filter mesh / bolting cloth 64T white nylon filter bags 3

nylon filter mesh / bolting cloth 64T white nylon filter bags 4

The quality of our products comes from the following aspects:

1.Material:We use two kinds of raw materials, one is the high quality raw materials --jintong wire, one is the import of high-quality Japanese wire.

nylon filter mesh / bolting cloth 64T white nylon filter bags 5

2.Equipment:Our equipment in 3 years ago were all updated, the new production line put into operation, after nearly six months of repeated debugging, accurate calibration, stable operation, the quality of the finished production of effective control and protection, and into the market, customers get a good feedback.

nylon filter mesh / bolting cloth 64T white nylon filter bags 6

3.Technical worker:Our technical workers are after strict operation and training, after passing the examination of practice, go to work, the operation technology is mature and stable, so as to ensure the quality of products. And constantly on new technology, new technology to learn, to enhance the skills of skilled workers.

nylon filter mesh / bolting cloth 64T white nylon filter bags 7

4.Operating technology: our operating technology is based on the performance parameters of the new equipment, and the different materials used, after the guidance of experts in the wire mesh industry, and through the actual production inspection and adjustment and development.

nylon filter mesh / bolting cloth 64T white nylon filter bags 8

5.Working environment: clean, neat and orderly work environment, is the factory should give a comfortable production staff work places, so as to ensure that employees feel comfortable, but also to ensure the efficient working condition and rigorous work habits, and ultimately ensure the quality of the products.

nylon filter mesh / bolting cloth 64T white nylon filter bags 9

Quality Control

· Mesh Count inspect

· Thickness inspect

· Thread diameter& Hole size inspect

· Tensile Strength inspect

· Surface Tension test

· Dedicated and experienced weavers

· Consistent quality products

· On-time delivery.Timely tracking of goods, and timely delivery of information to customers· We have 10 R&D technical staffs,with more than 18 years experience

· 86% repeat customers

· Improve after-sales service.

We ensure the normal operation of the above measures every day, in order to meet the needs of different customers with different needs, to meet customer demand for the quality of the stability of the product. We firmly believe that the provision of quality and stability of products for customers to win the market and increase the income of the best protection. Cooperation from now on, look forward to your arrival!

nylon filter mesh / bolting cloth 64T white nylon filter bags 10

nylon filter mesh / bolting cloth 64T white nylon filter bags

Monofilament synthetic fibers can be woven very precisely to produce industrial textiles having a narrow pore distribution. This precision weaving process produces a fine mesh woven fabric with holes as small as 50 microns with a strand and thickness tolerance of +/- 10%.

We have x-ray heating cutting machine, can according to your request, will nylon filter any shape and size. And can produce filter bags and other finished products.

nylon filter mesh / bolting cloth 64T white nylon filter bags 11

Material selection is the first working procedure for production, which is an important function of product quality. In order to ensure good quality, we give priority to material selection. It has not only introduced Japanese polyester filament, but also established a close and friendly cooperative relationship with domestic excellent polyester filament manufacturers. Meanwhile, in terms of every working procedure in production, The company arranges the person responsible, establishes the individual responsibility mechanism.every batch of products must pass strict tests before they are packed and stored. we have seven workshops: warping workshop, dragging and reeding workshop, inspection workshop, cleaning workshop, molding workshop and rolling workshop. every workshop complies with rigorous quality control and standard operation process; we seek greater perfection in every detail, strive to promote product competitiveness, and truly be responsible for every product and every customer.We adhere to the "integrity, innovation, responsibility" concept to provide customers with high quality products, perfect service. We have won favorable comments from old and new customers. We are glad to establish good relationship with more and more customers from all over the world.

nylon filter mesh / bolting cloth 64T white nylon filter bags 12

Our certification:

nylon filter mesh / bolting cloth 64T white nylon filter bags 13

nylon filter mesh / bolting cloth 64T white nylon filter bags

Nylon Mesh
Type

Mesh Count

(/cm)

Mesh Count

(/inch)

Thread Diameter

(/um)

Mesh Opening

(um)

Open Area

(%)

Thickness

(um)

JPP 4 4 10 550 1950 61 1020
JPP 5 5 13 400 1600 64 760
JPP 5 5 13 500 1500 56 940
JPP 6 6 15 350 1317 62 680
JPP 6 6 15 400 1267 58 780
JPP 7 7 18 350 1079 57 675
JPP 8 8 20 300 950 58 585
JPP 8 8 20 350 900 52 685
JPP 9 9 24 250 861 60 465
JPP 10 10 25 300 700 49 576
JPP 12 12 30 250 583 49 470
JPP 12 12 30 300 533 41 585
JPP 14 14 35 200 514 52 375
JPP 16 16 40 200 425 46 380
JPP 18 18 45 200 356 41 385
JPP 20 20 50 150 350 49 375
JPP 20 20 50 200 300 36 385
JPP 24 24 60 150 267 41 285
JPP 28 28 70 120 237 44 215
JPP 30 30 76 120 213 41 225
JPP 32 32 80 100 213 46 170
JPP 36 36 90 100 178 41 180
JPP 40 40 100 100 150 36 190
JPP 43 43 110 80 153 43 135
JPP 48 48 120 80 128 38 145
JPP 56 56 142 60 119 44 96
JPP 59 59 150 60 109 42 102
JPP 64 64 163 60 96 38 108
JPP 72 72 183 50 89 41 88
JPP 80 80 203 50 75 36 92
JPP 90 90 230 43 68 38 70
JPP 100 100 254 43 57 32 72
JPP 110 110 280 43 48 28 76
JPP 120 120 305 43 40 23 78
JPP 130 130 330 43 34 19 80
JPP 140 140 355 38 33 22 75

Remark: These are theoretical data for reference only.

Mesh Opening & Open Area only slight error according to actual data.
