68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001,ISO14001,FDA,SGS
Model Number DPP
Minimum Order Quantity 30m
Price 0.75-5.68$/m
Packaging Details Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materil Polyester Colour Yellow / White / Black / Orange
Width 0.1m-3.7m Weave Type Plain
Elasticity Low Mesh Count 18mesh-500mesh
Roll Length 30-70 M/roll Free Sample Accepted
HS Code 5911200090
Leave a Message
Product Description

Product Description

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh Product information

Materials: We use imported yarn from Switzerland and Japan. The material can be as customer's requirement.

Mesh count: 7T(18mesh/inch)-200T(500mesh/inch)

Color: Yellow / White / Black / Orange

Width: white color max width 370cm(145")

Characteristics: Good stability and finer printing effect
Used: Screen printing and filter

2meters of free sample available at customres requirement.

Package: 1.rolled the mesh with paper tube,then in PVC bag,then in carton.

          2.Folded the mesh,then in PVC bag,then in cartons

Shanghai SPRING has supported a wide range of Screen Printing areas such as Solar Cells and Touch Panel Displays. We continue to provide cutting-edge Screen Printing Technology information all over world, Cooperating with many company that produce Photovolta - PV and solar cells, PCB etc electronics manufacturers.

Our mainly market for high quality polyester silk screen printing mesh : North America (USA, Canada, Mexico), South America( Braizil, Chile, Argentina, Peru etc.), European country (Germany, France, Italy,Poland, etc.), Asia (UAE, Iraq, Iran, Thailand, Vietnam , Malaysia, Turkey, Bangladesh, Pakistan etc.



Detailed Images

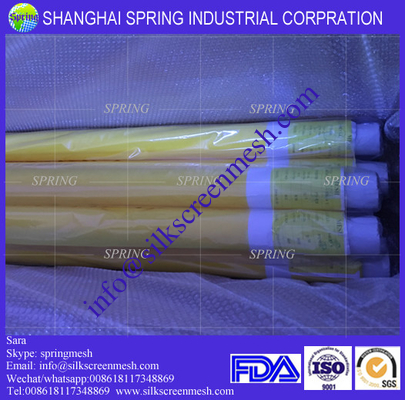

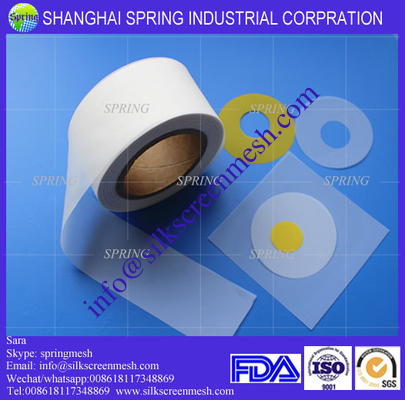

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 0 68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 1

Features and advanta

Features

· Low Elongation, High Tension

· Excellent Tear Resistance

· Very good Dimensional Stability

· Faster tensioning without damage to the threads

· Improved registration due to stable tension



Our advantages

-Dedicated and experienced weavers

-Consistent quality products

-On time delivery

-Reasonable claim refund system

industrial polyester fabric mesh specification

Production Process

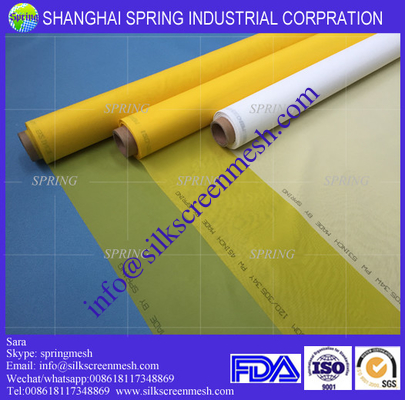

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 2

Factory Show

Shanghai SPRING Printing Mesh Manufacture Factory is one of the top manufacturers and exporters of screen printing mesh.Our company was connected with production of metal wire mesh since 1983 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1992, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D) and apparatus used in production process fully based on the high computer technology.

· Dedicated and experienced weavers.

· Consistent quality products.

· On-time delivery.

· We have 10 R&D technical staffs,with more than 15 years experience.

· 85% repeat customers.

· Reasonable claim refund system.

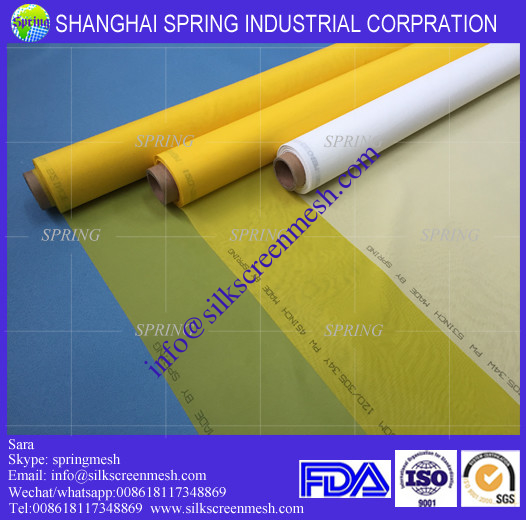

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 3



Package and Shipping

We have two kind of packing type:

1): Folding the mesh with pvc bag and then put into carton. Suit for little order quantity.

2): Rolling the mesh with paper tube and then put into carton. Suit for large order quantity.Suitable for large quantity and the mesh has better surface than folding type.Usually a carton can load 50-70kg.

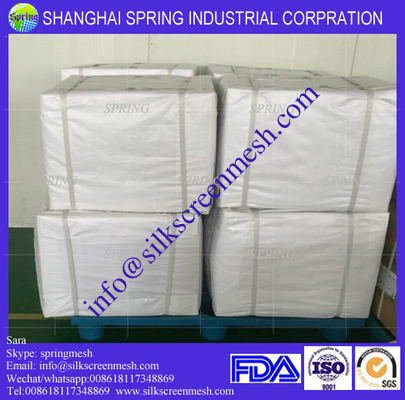

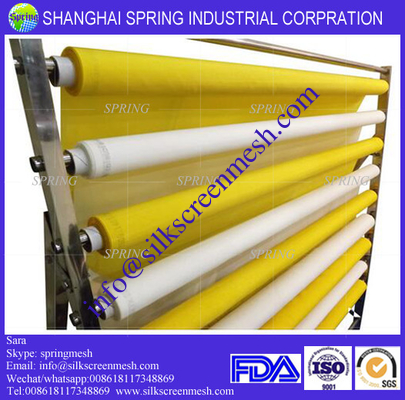

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 4 68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 5

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh 6

68T-64(173mesh) industrial polyester fabric mesh/screen printing mesh

Polyester Monofilament Mesh
Type

Mesh Count

(/cm)

Mesh Count

(/inch)

Thread Diameter

(/um)

Mesh Opening

(um)

Open Area

(%)

Thickness

(um)

DPP 7 7T 18 350 1079 57 640
DPP 8 8T 20 300 950 58 550
DPP 10 10T 25 250 750 56 445
DPP 12 12T 30 250 583 49 450
DPP 16 16T 40 200 425 46 400
DPP 20 20S 50 100 400 64 200
DPP 20 20T 50 150 350 49 260
DPP 20 20HD 50 180 320 41 338
DPP 24 24S 60 100 317 58 190
DPP 24 24T 60 120 297 51 220
DPP 27 27T 70 70 300 66 125
DPP 32 32S 80 80 233 55 140
DPP 32 32T 80 100 213 46 170
DPP 34 34T 86 100 194 44 170
DPP 36 36S 90 80 198 51 137
DPP 36 36T 90 100 178 41 198
DPP 39 39S 100 55 201 62 95
DPP 39 39T 100 80 176 47 141
DPP 39 39HD 100 100 156 37 185
DPP 43 43T 110 80 153 43 132
DPP 47 47S 120 55 158 55 95
DPP 47 47T 120 71 142 44 135
DPP 53 53S 135 55 134 50 95
DPP 53 53T 135 64 125 44 118
DPP 53 53HD 135 71 118 39 130
DPP 59 59S 150 55 114 46 88
DPP 59 59T 150 64 105 39 105
DPP 61 61T 155 55 109 44 84
DPP 62 62T 155 64 97 36 97
DPP 64 64S 163 55 101 42 85
DPP 64 64T 163 64 92 35 100
DPP 68 68S 173 55 92 39 85
DPP 68 68T 173 64 83 32 100
DPP 72 72S 183 48 91 43 89
DPP 72 72T 183 55 84 36 100
DPP 77 77T 195 55 75 33 86
DPP 80 80T 200 48 77 38 76
DPP 90 90S 230 45 66 35 69
DPP 90 90T 230 48 63 32 76
DPP 100 100T 250 40 60 36 61
DPP 110 110T 280 40 51 31 58
DPP 120 120S 300 31 52 39 53
DPP 120 120T 300 34 49 35 58
DPP 120 120HD 300 40 43 27 65
DPP 140 140S 350 31 40 32 49
DPP 140 140T 350 34 37 27 59
DPP 150 150S 380 31 36 29 52
DPP 150 150T 380 34 33 24 60
DPP 165 165S 420 27 34 31 44
DPP 165 165T 420 31 30 24 53
DPP 180 180T 460 27 29 26 42
DPP 200 200T 500 27 23 21 45

Remark: These are theoretical data for reference only.

Mesh Opening & Open Area only slight error according to actual data.
