90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001,ISO14001,FDA,SGS
Model Number JPP
Minimum Order Quantity 5m
Price 1.5-9.8$/m
Packaging Details Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt
Delivery Time 3-5 work days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 10000m/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materil Nylon Width 0.1m-3.7m
Weave Type Plain Elasticity Low
Mesh Count 18mesh-500mesh Roll Length 30-70 M/roll
Free Sample Accepted Usage Liquid Filter
Type Filter Elements Hole Shape Square
HS Code 5911200090
Leave a Message
Product Description

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh

SPRING nylon monofilament mesh, is well-suited for printing onto curved or rigid surfaces because of its flexibility and elasticity. In addition, its reliable mechanical resistance and good emulsion adhesion make it suitable for printing with abrasive paste or substrate.



Main specification as follow:

Opening size: From 30 micron to 2000 micron
Material: PA6, PA66, Polyester
Width range from: 0.6m-3.65m
Shape: Ribbons, rolls, Tubes, discs, pieces

Finishing:
1. Hot or cold cut mesh to different shapes
2. Heat-sealed Mesh Filter Bags
3. Welded Filter Tubes
4. Stamping Mesh Filter Elements


mesh filter bag
Usage:
SPRING food grade nylon tea filter bag can be mainly used as flour mesh, tea filter mesh, air and liquid filter mesh, medical filter mesh, filter belts, filter bags etc.


Faster tensioning without damage to the threads;
Improved fabric strength;
Faster tension stabilization;
Higher tension threshold and breaking point;
Less tension loss during the stretching process;
Faster turnaround time from the screen room to the pressroom;
Improved registration due to stable tension;



Material :manufactured by nylon monofilament yarns
Opening :the mesh with great precision exact and regular square holes
Chemicals :no unwanted chemicals,no any chemicals treatment in the production process
Safe Grade :very safe,very thin,food grade
Shape :can made by disc,tube,piece,roll any sizes and shape,max roll length1000m
Temperature :use temperature under 120℃
Dimensoinal :very good dimensional stability

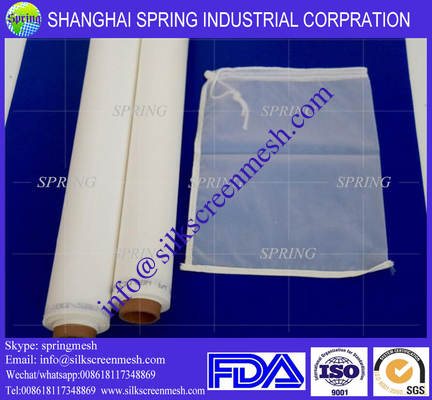

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 0 90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 1

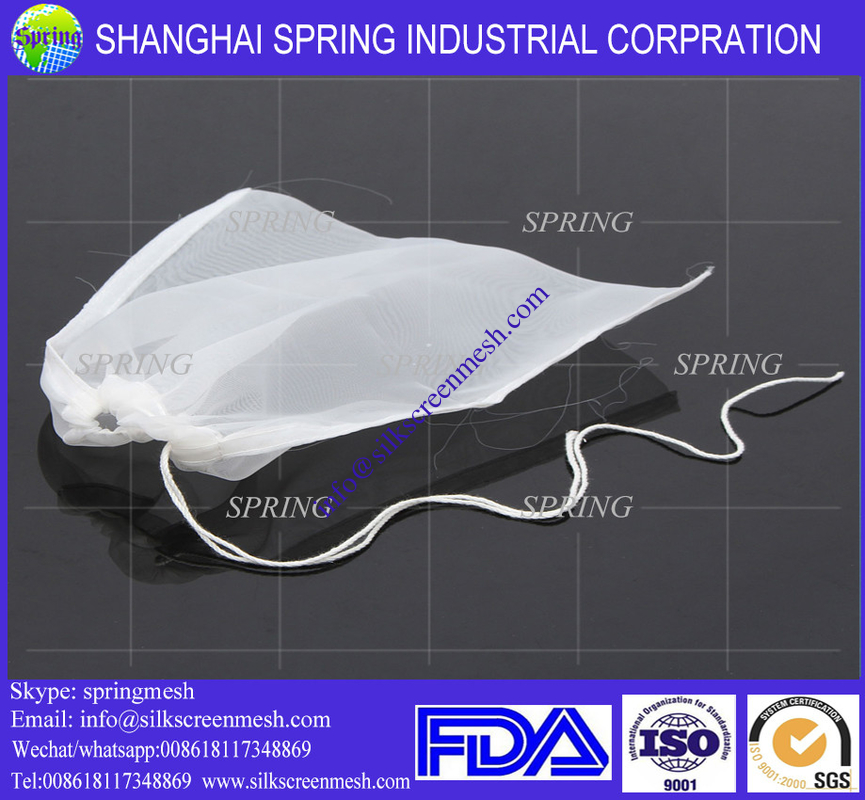

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 2 mesh filter bag

Technical Info:

Nylon filter fabric is recommend used in following applications:

Temperature for continuous work: 212℉(℃)

Chemical resistance: PH 7-14

Neutral or alkali

We can cut the mesh into rolls, disc, ribbons, tubes according to customers order.

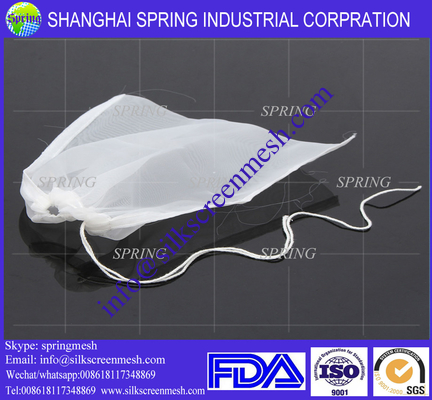

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 4  90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 5Monofilament filter mesh                                       Monofilament synthetic fibers

We have x-ray heating cutting machine           Monofilament synthetic fibers can be woven

which can nylon filter mesh into any shape       very precisely to create industrial textiles

and size by your request.                               with narrow pore distribution.


90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 6  90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 7
Main Applications for Nylon Mesh
Dry Filter bags
Milling
Air and liquid Filtration
Automotive
Food
Pharmaceutical
Injection Moulding
Filter Belts
Rotational Filters
Woven nylon mesh:
Nylon is a synthetic material which is the most used material in the market today.
It has a working temperature of up to 120°C.
It is fair with acids & oxidising agents, good with alkalis, and excellent with solvents.
Apertures range from 30 micron up to 1930 micron.
Woven nylon mesh features:.
1.100% Nylon Monofilament Material
2.Excellent Tear Resistance
3.Excellent Dimensional Stability
4.Higher Tension Strength & Break Point
5.Low Elongation

Quality Control
Shanghai SPRING dostrictly tested before the goods dispatched from our factory to ensure their quality.Make sure customers get perfect quality.

· Mesh Count inspect
· Thickness inspect
· Thread diameter& Hole size inspect
· Tensile Strength inspect
· Surface Tension test
Production Process
We buy yarn from Jintong, Switzerland and Japan, we inspect the yarn when they unloaded in our factory. (tolerance, tensile strength, physics test etc.).
After that, we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving according to orders.
Initial survey will be done after weaving.Then start heat setting treatment and physical properties inspection, before we get tentative finished rolls(60-500 meters big rolls).
In the end, we’ll cut the small rolls(20m-50m) according to customer orders after a final inspection.
Factory show
Shanghai SPRING Printing Mesh Manufacture Factory is one of the top manufacturers and exporters of screen printing mesh.Our company was connected with production of metal wire mesh since 1983 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1995, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D) and apparatus used in production process fully based on the high computer technology.

· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 11 R&D technical staffs,with more than 15 years experience.
· 90% repeat customers.
· Reasonable claim refund system.



90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 8

Our certification:

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 9

Packing & Delivery:

We have two kind of packing type:
1.Fold the mesh into plastic bag ,then in carton.Suitable for small quantity and have no requirement on the crease.
2.Pack the mesh with paper and plastic bag,then in carton.Suitable for large quantity and the mesh has better surface then folding type.

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh 10

Shanghai SPRING can weave all the specifications according to international standard. Other non-standard specification can negotiate according to customer's order. Most of our mesh are in stock.

90T-43um(230mesh) mesh filter bag /white silk screen mesh /filter mesh

Nylon Mesh
Type

Mesh Count

(/cm)

Mesh Count

(/inch)

Thread Diameter

(/um)

Mesh Opening

(um)

Open Area

(%)

Thickness

(um)

JPP 4 4 10 550 1950 61 1020
JPP 5 5 13 400 1600 64 760
JPP 5 5 13 500 1500 56 940
JPP 6 6 15 350 1317 62 680
JPP 6 6 15 400 1267 58 780
JPP 7 7 18 350 1079 57 675
JPP 8 8 20 300 950 58 585
JPP 8 8 20 350 900 52 685
JPP 9 9 24 250 861 60 465
JPP 10 10 25 300 700 49 576
JPP 12 12 30 250 583 49 470
JPP 12 12 30 300 533 41 585
JPP 14 14 35 200 514 52 375
JPP 16 16 40 200 425 46 380
JPP 18 18 45 200 356 41 385
JPP 20 20 50 150 350 49 375
JPP 20 20 50 200 300 36 385
JPP 24 24 60 150 267 41 285
JPP 28 28 70 120 237 44 215
JPP 30 30 76 120 213 41 225
JPP 32 32 80 100 213 46 170
JPP 36 36 90 100 178 41 180
JPP 40 40 100 100 150 36 190
JPP 43 43 110 80 153 43 135
JPP 48 48 120 80 128 38 145
JPP 56 56 142 60 119 44 96
JPP 59 59 150 60 109 42 102
JPP 64 64 163 60 96 38 108
JPP 72 72 183 50 89 41 88
JPP 80 80 203 50 75 36 92
JPP 90 90 230 43 68 38 70
JPP 100 100 254 43 57 32 72
JPP 110 110 280 43 48 28 76
JPP 120 120 305 43 40 23 78
JPP 130 130 330 43 34 19 80
JPP 140 140 355 38 33 22 75

Remark: These are theoretical data for reference only.

Mesh Opening & Open Area only slight error according to actual data.
