Polyester Screen Printing Mesh Fabric/ hot sales
| Place of Origin | China Shanghai |
|---|---|
| Brand Name | SPRING |
| Certification | ISO9001, FDA, ROSH, SGS |
| Model Number | DPP |
| Minimum Order Quantity | 1 Square meter |
| Price | US $0.4 - 1.4 / 1-50Meter |
| Packaging Details | Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt. |
| Delivery Time | 3-5 work days |
| Payment Terms | L/C, , T/T, Western Union, MoneyGram |
| Supply Ability | 10000 Meter/Meters per WeeK silk screen printing mesh |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 100% Polyester Monofilament | Usage | Screen Printing |
|---|---|---|---|
| Thickness | 100 μm 120μm 150μm | Length | 30-70m/roll |
| Width | 0.6m-3.7m | Mesh Count | 15-420mesh/inch |
| Weave Style | Plain Woven | Mesh Opening | 26um -1080um |
| Thread Dia | 31μm 350μm | Free Samples | Accepted |
| Our Advantages | More Than 30 Years Professional Factory Experience |
Product Description
Polyester Screen Printing Mesh Fabric
The basic principle of garment Printing On Mesh Fabric: Through the unique technology of screen-making, combined with photosensitive exposure characteristics of photoptic glue, make the pattern part of the Printed Mesh Fabric Conson open and the pattern part is closed. In printing, as a result of screen printing squeegee scraping effect, so that printing paint paste through the Silk Screen Fabric Mesh hole smooth infiltration into the fabric surface, printing materials printed on clothing, thus completing the printing process. Due to market factors, will lead to fabric color and fabric variety diversity.

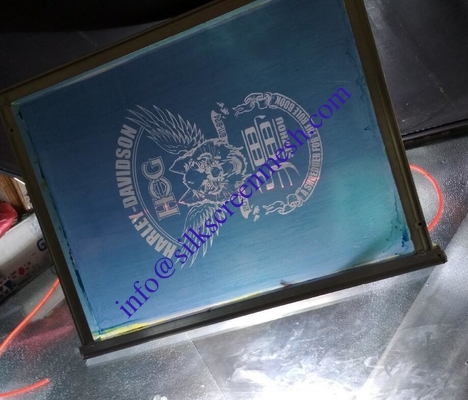

Place the screen on the Silk Screen Fabric for printing. The printing pulp poured into the printing box, through the screen printing squeegee force it from the mesh of the screen. Each color in a printing pattern needs a Screen Printing Fabric Mesh for each individual to print a different color.
Silk Screen Fabric suitable fabric types: pure textile, blended fabrics, mixed fabrics, woven fabrics.
Fabric Banner Printing Specifications:
The main specifications of 43T (110mesh),53T (135mesh),64T (160mesh),72T (180mesh),77T (195mesh),80T (200mesh),90T (230mesh),100T (250mesh),110T (280mesh),120T (300mesh), 140T (350mesh), 150T (380mesh), 165T (420mesh).
Polyester screen, it has high tensile, low elongation, good dimensional stability.
It's an economical material and widely used in various screen printing.
|
Polyester Screen Printing Mesh Fabric |
|||||
|
Mesh(T)/cm- wirediameter/μm |
mesh/inch | Opening (μm) | Open area(%) | thickness(μm) | Theoretical ink volume(cm3/㎡) |
| 13T-150 | 33 | 619 | 64 | 300 | 128 |
| 21T-150 | 55 | 326 | 46 | 260 | 118 |
| 24T-100 | 60 | 316 | 57 | 136 | 65 |
| 24T-120 | 60 | 296 | 51 | 162 | 83 |
| 28T-140 | 70 | 217 | 40 | 195 | 76 |
| 32T-55 | 81 | 257 | 67 | 103 | 67 |
| 32T-100 | 81 | 212 | 45 | 165 | 73 |
| 36T-90 | 92 | 183 | 44 | 150 | 65 |
| 39T-55 | 100 | 177 | 56 | 88 | 55 |
| 39T-80 | 100 | 176 | 48 | 125 | 60 |
| 43T-80 | 110 | 149 | 41 | 130 | 53 |
| 47T-55 | 120 | 152 | 61 | 88 | 48 |
| 48T-70 | 122 | 133 | 41 | 115 | 47 |
| 53T-55 | 135 | 133 | 50 | 86 | 42 |
| 54T-64 | 137 | 115 | 39 | 100 | 39 |
| 59T-55 | 150 | 114 | 45 | 95 | 43 |
| 61T-64 | 155 | 90 | 31 | 101 | 30 |
| 61T-70 | 155 | 94 | 33 | 120 | 40 |
| 64T-55 | 160 | 98 | 38 | 98 | 36 |
| 64T-64 | 160 | 85 | 30 | 115 | 34 |
| 68T-55 | 175 | 85 | 34 | 85 | 28 |
| 72T-48 | 182 | 90 | 36 | 78 | 33 |
| 72T-55 | 182 | 85 | 30 | 90 | 27 |
| 77T-48 | 195 | 77 | 35 | 80 | 28 |
| 77T-55 | 195 | 67 | 27 | 88 | 24 |
| 80T-48 | 200 | 72 | 33 | 74 | 25 |
| 90T-48 | 230 | 56 | 25 | 78 | 19 |
| 100T-40 | 255 | 58 | 33 | 63 | 21 |
| 120T-34 | 305 | 45 | 30 | 55 | 16 |
| 130T-34 | 330 | 40 | 27 | 55 | 15 |
| 140T-31 | 355 | 36 | 26 | 48 | 12 |
| 140T-34 | 355 | 31 | 20 | 53 | 10 |
| 150T-31 | 380 | 32 | 23 | 49 | 11 |
| 150T-34 | 380 | 23 | 13 | 55 | 6.5 |
| 165T-31 | 420 | 23 | 15 | 48 | 7 |
With the high quality material,our produces superior quality polyester bolting cloth for screen printing. We also have the most advanced testing instruments and technicians well trained to guarantee a reliable quality.
Our Factory
Shanghai SPRING Industrial Corporation as a professional manufacture of monofilament screen mesh, we have more than 30 years experience in this line since 1983. We have full size mesh from 18mesh to 500mesh with different width and colors can be provided. We have more than 150sets Sulzer Ruti P7100 and P7300 weaving machines to make sure the goods can be produced with good surface and high tension we use the best quality yarn from China also imported from Japan for high count mesh. The max width 390CM to make sure the width can satisfy the customers demand.
Technical Details:
Monofilament polyester mesh screen (low-elongation) is available with a wide range of mesh counts and has significant advantages compared with traditional polyester mesh.
Packaging and shipping:
1.30-70m/roll in PVC bag
2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen

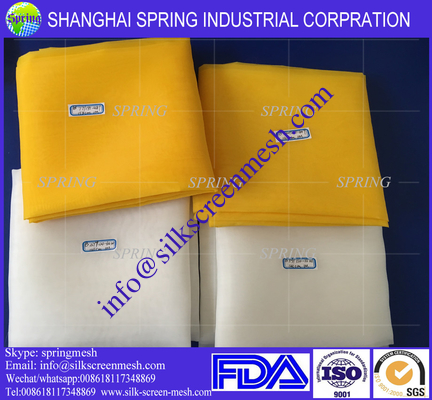

White or Yellow Polyester screen printing mesh?
White screen printing mesh is the more economical of the two, and is primarily seen in lower mesh counts used for less-detailed designs. Higher count mesh is usually dyed yellow because the color yellow acts as a canceling factor for UV light and prevents refraction along the mesh strands when burning your screens. This allows for a more focused and precise exposure, keeping your screens as crisp as possible.
