Factory direct selling polyester printing mesh,nylon mesh,flour mesh.
Place of Origin: | Shanghai China |
Brand Name: | SPRING |
Certification: | ISO9001 |
Model Number: | GG & XXX |
Minimum Order Quantity: | 30m |
---|---|
Price: | www.springscreenmesh.com |
Packaging Details: | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time: | 5000000m/month |
Supply Ability: | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
Name Filter: | Material Nylon | Specifications: | JPP4-240T |
---|---|---|---|
Mesh Count: | 10-600mesh/inch | Wire Diameter: | 30-550 Microns |
Mesh Opening: | 3-1950um | Thickness: | 60-1100 Microns |
Conventional Roll Width: | Width 1-3.65 Meters, Can Be Customized | Conventional Roll Length: | Length 30-70 Meters, Can Be Customized |
Color: | White |

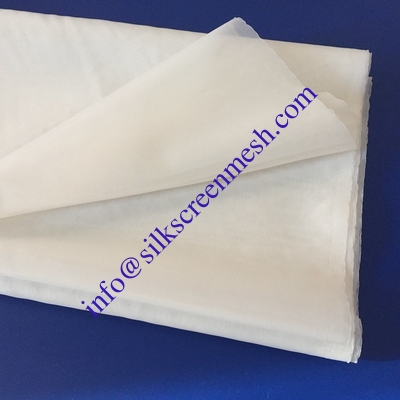

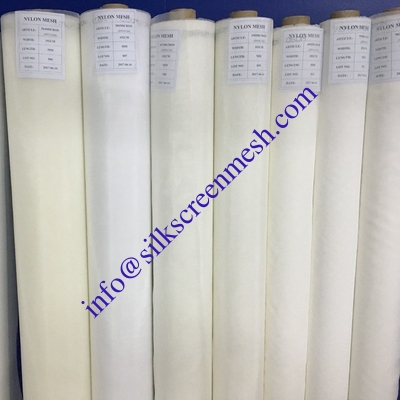

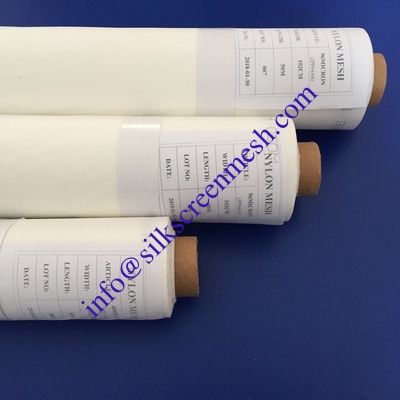

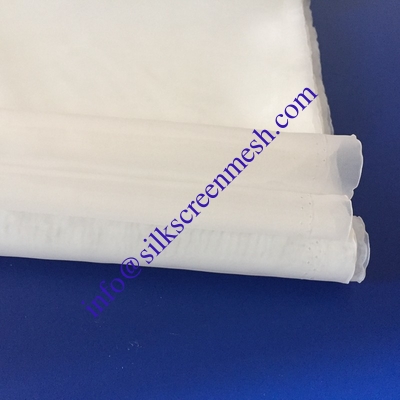

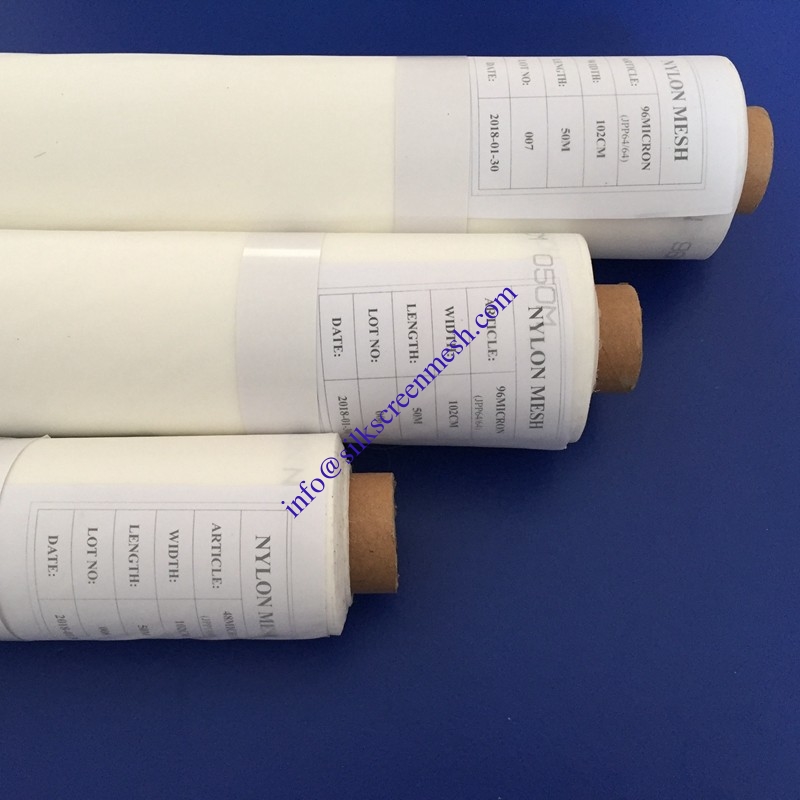

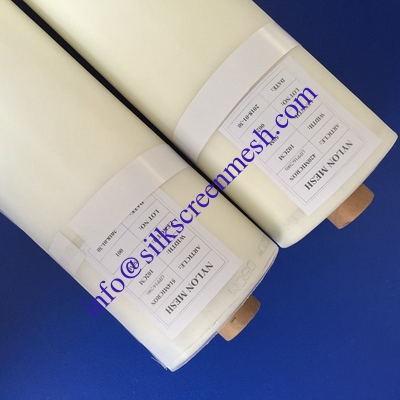

25 50 100 200 300 400 500 750 micron nylon filter mesh screen mesh
Specification:DPP4-240T
Mesh Count:10-600mesh/inch
Conventional roll width :width 1-3.65 meters, can be customized
Conventional roll length :length 30-70 meters, can be customized
Main uses: food processing and screening, high square sieve in flour mill, single warehouse and double warehouse flat screen, aluminum alloy sieve, mill sieve, powder mill sieve, vibrating screen, sieve bone, filter press filter cloth , starch filter cloth, etc.
Advantages: thickening and thickening, uniform and stable mesh, strong and efficient, material safety, complete specifications, high efficiency
Focus: production cost, drying level, separation level, production efficiency and food safety
Deep processing products: high square sieve, high square sieve mesh, centrifuge filter, etc.
Flour Milling Mesh
With food-grade yarn, our fabric woven special for flour sieving, high wear resistance, low resistance, strong impact resistance, can be repeatedly cleaned and used, the filtration efficiency is not affected by cleaning. The mesh opening is precise and uniform, and the screening is even and delicate. SGS food grade certification, widely used in flour filtration screening, plansifters, etc.
Flour Mesh
Type | Mesh Count (/cm) |
Mesh Count (/inch) |
Wire Diameter (um) |
Mesh Opening (um) |
Open Area (%) |
PA-10GG | 4.25 | 11 | 500 | 1920 | 64 |
PA-12GG | 4.5 | 11 | 500 | 1800 | 61 |
PA-14GG | 5 | 13 | 450 | 1560 | 61 |
PA-15GG | 5.5 | 14 | 400 | 1450 | 62 |
PA-16GG | 6 | 15 | 400 | 1320 | 56 |
PA-18GG | 6.5 | 17 | 400 | 1170 | 55 |
PA-19GG | 7 | 17.8 | 350 | 1080 | 57 |
PA-20GG | 7.5 | 19 | 325 | 1030 | 57 |
PA-22GG | 8 | 20 | 300 | 950 | 58 |
PA-23GG | 8.3 | 21 | 300 | 900 | 56 |
PA-24GG | 9 | 23 | 280 | 830 | 55 |
PA-26GG | 9.5 | 24 | 280 | 790 | 54 |
PA-27GG | 10.5 | 27 | 250 | 730 | 55 |
PA-28GG | 10.75 | 27 | 250 | 700 | 54 |
PA-30GG | 11 | 28 | 250 | 660 | 52 |
PA-31GG | 11.5 | 29 | 250 | 630 | 51 |
PA-32GG | 12 | 30 | 250 | 600 | 50 |
PA-34GG | 13 | 33 | 225 | 560 | 51 |
PA-36GG | 13.5 | 34 | 225 | 530 | 49 |
PA-38GG | 14 | 36 | 225 | 500 | 47 |
PA-40GG | 15 | 38 | 195 | 475 | 49 |
PA-42GG | 16 | 41 | 195 | 440 | 46 |
PA-44GG | 16.5 | 42 | 195 | 420 | 46 |
PA-45GG | 17 | 43 | 195 | 400 | 46 |
PA-47GG | 18 | 46 | 180 | 375 | 43 |
PA-48GG | 18 | 46 | 195 | 365 | 43 |
PA-50GG | 20 | 51 | 150 | 355 | 51 |
PA-52GG | 21 | 53 | 150 | 335 | 49 |
PA-54GG | 22 | 56 | 150 | 310 | 47 |
PA-58GG | 23 | 58 | 140 | 300 | 46 |
PA-60GG | 24 | 61 | 140 | 280 | 43 |
PA-62GG | 24 | 61 | 150 | 270 | 41 |
PA-64GG | 26 | 66 | 120 | 265 | 47 |
PA-66GG | 27 | 69 | 120 | 255 | 46 |
PA-68GG | 27.5 | 70 | 120 | 245 | 43 |
PA-70GG | 28 | 71 | 120 | 240 | 44 |
PA-72GG | 29 | 74 | 120 | 225 | 42 |
PA-74GG | 30 | 76 | 120 | 212 | 40 |
The above is theoretical data, for your reference only! |
Type | Mesh Count (/cm) |
Mesh Count (/inch) |
Wire Diameter (um) |
Mesh Opening (um) | Open Area (%) |
PA-3XXX | 23 | 58 | 140 | 300 | 46 |
PA-4XXX | 24 | 61 | 140 | 280 | 43 |
PA-5XXX | 27 | 69 | 120 | 255 | 46 |
PA-6XXX | 30 | 76 | 120 | 212 | 40 |
PA-7XXX | 31 | 79 | 120 | 200 | 39 |
PA-8XXX | 36 | 91 | 100 | 180 | 43 |
PA-8.5XXX | 38 | 97 | 100 | 160 | 37 |
PA-9XXX | 41 | 104 | 90 | 155 | 39 |
PA-9.5XXX | 43 | 109 | 90 | 140 | 36 |
PA-10XXX | 46 | 117 | 80 | 135 | 39 |
PA-10.5XXX | 49 | 124 | 80 | 125 | 38 |
PA-11XXX | 51 | 130 | 80 | 115 | 35 |
PA-12XXX | 55 | 140 | 70 | 115 | 37 |
PA-12.5XXX | 55 | 140 | 80 | 105 | 32 |
PA-13XXX | 57 | 145 | 70 | 100 | 32 |
PA-14XXX | 62 | 157 | 70 | 90 | 30 |
PA-14.5XXX | 66 | 168 | 61 | 90 | 35 |
PA-17XXX | 71 | 180 | 61 | 80 | 32 |
The above is theoretical data, for your reference only! |
