Food grade 10-74GG 3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn

Food grade 10-74GG 3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn

  • Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn
  • Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn
  • Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn
  • Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn
Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn
Product Details:
Place of Origin: Shanghai China
Brand Name: SPRING
Certification: ISO9001,ISO14001,FDA,SGS
Model Number: JPP
Payment & Shipping Terms:
Minimum Order Quantity: 30m
Price: 1.5-18$/m
Packaging Details: Waterproof plastic,Bubble bag,carton,Woven bag,Packing belt.210cm*25cm*25cm,185cm*33cm*33cm,55cm*45cm*45cm.
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000m/day
Contact Now
Detailed Product Description
Material:: Nylon Type: Initial Effect
Use: Flour Filtration Applicable Object: Flour
Opening Ratio: 20-70 (%) Weave Pattern: Plain Weave
Monofilament Diameter: 0.035-0.55 (mm)

Food grade 10-74GG 3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn

Product information

Name Flour screen
Material Nylon, polyester
Specifications XXX 3-17XXX
Wire diameter XXX 60-140 microns
Mesh XXX 81-300 μm
Specifications GG 10-74GG
Wire diameter GG 120-550 microns
Mesh GG 200-2000 micron
Conventional roll width 42'' 50'' 65'' 68'' 72'' 80'', customizable
Conventional roll length 30-70 meters



Products real shot

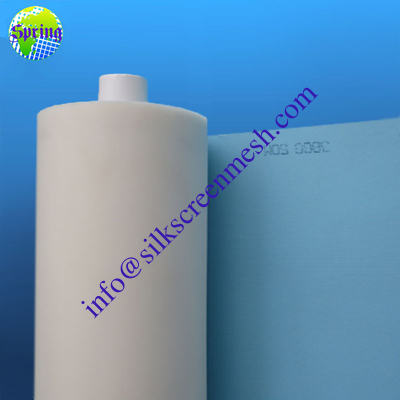

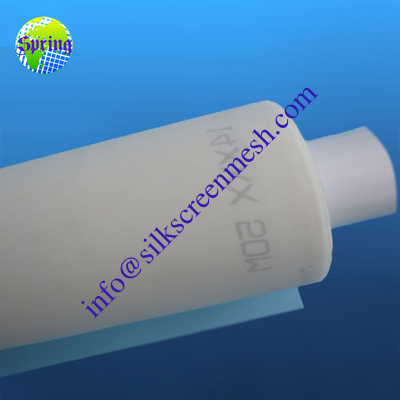

XXX series

Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 0Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 1

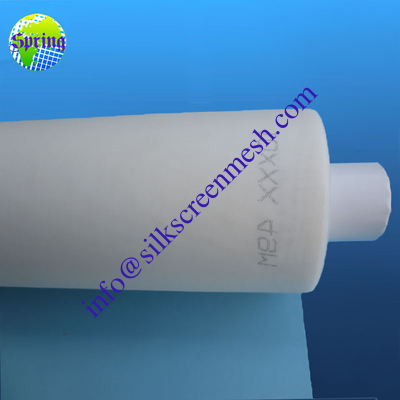

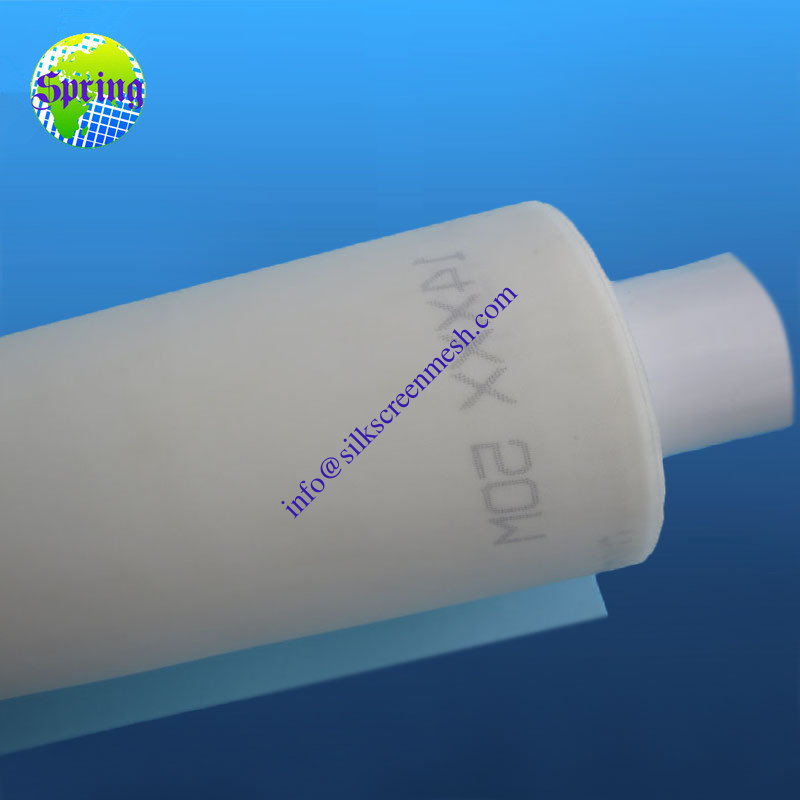

GG series

Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 2Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 3

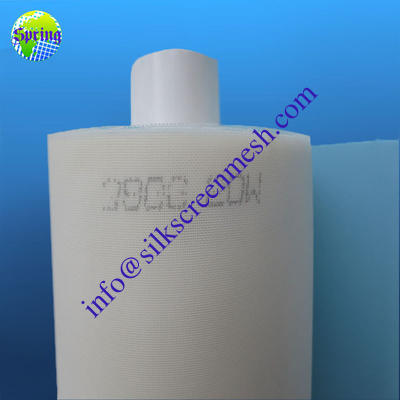

Deep processing series: cutting, cutting

Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 4Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 5Food grade 10-74GG  3-17XXX nylon flour filter high square sieve mesh flour filter mesh yarn 6

Product specifications



Type Mesh Count
(/cm)
Mesh Count
(/inch)
Wire Diameter
(um)
Mesh Opening
(um)
Open Area
(%)
PA-10GG 4.25 11 500 1920 64
PA-12GG 4.5 11 500 1800 61
PA-14GG 5 13 450 1560 61
PA-15GG 5.5 14 400 1450 62
PA-16GG 6 15 400 1320 56
PA-18GG 6.5 17 400 1170 55
PA-19GG 7 17.8 350 1080 57
PA-20GG 7.5 19 325 1030 57
PA-22GG 8 20 300 950 58
PA-23GG 8.3 21 300 900 56
PA-24GG 9 23 280 830 55
PA-26GG 9.5 24 280 790 54
PA-27GG 10.5 27 250 730 55
PA-28GG 10.75 27 250 700 54
PA-30GG 11 28 250 660 52
PA-31GG 11.5 29 250 630 51
PA-32GG 12 30 250 600 50
PA-34GG 13 33 225 560 51
PA-36GG 13.5 34 225 530 49
PA-38GG 14 36 225 500 47
PA-40GG 15 38 195 475 49
PA-42GG 16 41 195 440 46
PA-44GG 16.5 42 195 420 46
PA-45GG 17 43 195 400 46
PA-47GG 18 46 180 375 43
PA-48GG 18 46 195 365 43
PA-50GG 20 51 150 355 51
PA-52GG 21 53 150 335 49
PA-54GG 22 56 150 310 47
PA-58GG 23 58 140 300 46
PA-60GG 24 61 140 280 43
PA-62GG 24 61 150 270 41
PA-64GG 26 66 120 265 47
PA-66GG 27 69 120 255 46
PA-68GG 27.5 70 120 245 43
PA-70GG 28 71 120 240 44
PA-72GG 29 74 120 225 42
PA-74GG 30 76 120 212 40
The above is theoretical data, for your reference only!
Type Mesh Count
(/cm)
Mesh Count
(/inch)
Wire Diameter
(um)
Mesh Opening (um) Open Area
(%)
PA-3XXX 23 58 140 300 46
PA-4XXX 24 61 140 280 43
PA-5XXX 27 69 120 255 46
PA-6XXX 30 76 120 212 40
PA-7XXX 31 79 120 200 39
PA-8XXX 36 91 100 180 43
PA-8.5XXX 38 97 100 160 37
PA-9XXX 41 104 90 155 39
PA-9.5XXX 43 109 90 140 36
PA-10XXX 46 117 80 135 39
PA-10.5XXX 49 124 80 125 38
PA-11XXX 51 130 80 115 35
PA-12XXX 55 140 70 115 37
PA-12.5XXX 55 140 80 105 32
PA-13XXX 57 145 70 100 32
PA-14XXX 62 157 70 90 30
PA-14.5XXX 66 168 61 90 35
PA-17XXX 71 180 61 80 32
The above is theoretical data, for your reference only!



Type Mesh Count Wire Diameter Mesh opening Open Area
(/cm) (/inch) Warp(/um) Weft(/um) (um) (%)
PET-6XX 32/34 76/86 80+64*2 80 209 49
PET-7XX 33/36 84/91 80+64*2 80 199 47
PET-8XX 36/40 91/102 80+64*2 70 174 45
PET-9XX 43/48 109/22 70+48*2 64 150 45
PET-10XX 49/52 124/132 64+40*2 64 132 43
PET-11XX 53/60 135/152 64+40*2 48 117 44
PET-12XX 55/63 140/160 64+40*2 48 110 42
PET-13XX 58/68 147/173 64+40*2 48 100 39
PET-14XX 62/69 157/175 48+40*2 48 97 40
PET-15XX 65/74 165/188 48+40*2 48 90 38
The above is theoretical data, for your reference only!
