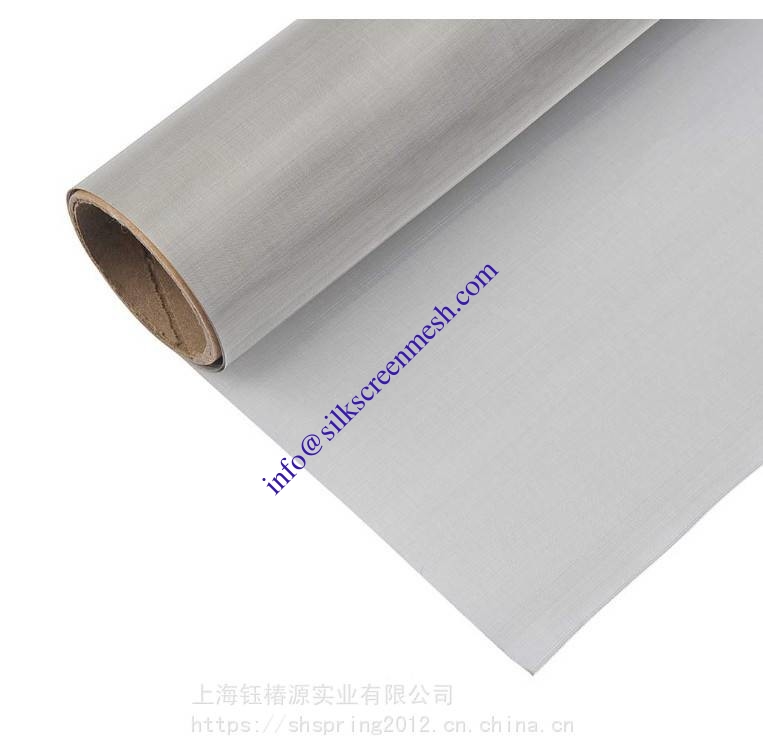

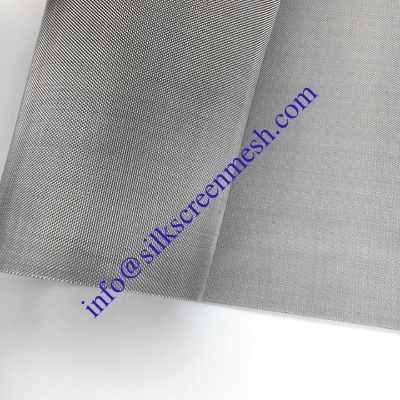

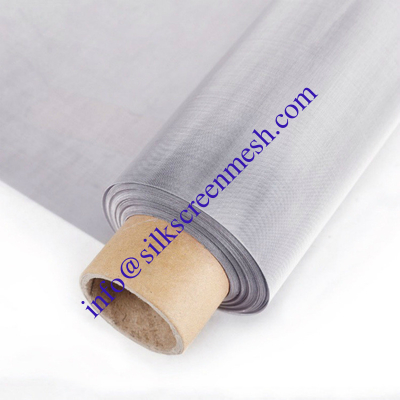

Gas-liquid filtration stainless steel screen 304 stainless steel mesh Stainless steel metal woven wire mesh
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 | Aperture | 0.25 (mm) |
|---|---|---|---|
| Wire Diameter | 0.09 (mm) | Weaving | Method |
| Filtering Accuracy | 30 | Maximum Differential Pressure | 300 |
| Operating Temperature | 600 | Use | Filtration |
Product Description
Characteristics
◆ Good acid resistance, alkali resistance and rust resistance;
◆ High strength, strong tensile, toughness and wear resistance, durable;
◆ High temperature oxidation resistance, 304 stainless steel screen nominal temperature tolerance is 800 degrees Celsius, 310S stainless steel screen nominal temperature tolerance up to 1150 degrees Celsius;
◆ Normal temperature processing, that is, easy plastic processing, diversifying the use possibilities of stainless steel screens;
◆ High finish, no surface treatment, easy maintenance.
Main species
Stainless steel wire mesh can be divided into 316 stainless steel mesh and 304 stainless steel mesh according to the material;
Advantages of 316 stainless steel mesh:
18Cr-12Ni-2.5Mo is particularly good in corrosion resistance, atmospheric corrosion resistance and high temperature strength due to the addition of Mo. It can be used under harsh conditions, compared with other chrome-nickel stainless steel in brine, sulphur water or halogen salts. It is less susceptible to corrosion. Corrosion resistance is better than 304 stainless steel mesh, with good corrosion resistance in the production process of pulp and paper. Moreover, the 316 stainless steel mesh is more resistant to the erosion of the marine and aggressive industrial atmosphere than the 304 stainless steel mesh.
Use of 316 stainless steel mesh:

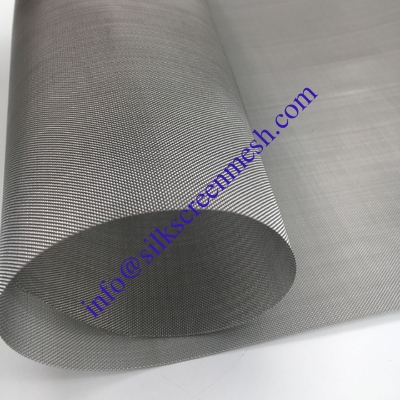

316 stainless steel mesh
316 stainless steel mesh
316 stainless steel mesh is mainly used for screening and filtration under acid and alkali environment conditions, and also in mining, chemical, food, pharmaceutical and other industries.
Advantages of 304 stainless steel mesh:
304 stainless steel mesh has excellent stainless corrosion resistance and good resistance to intergranular corrosion. In the experiment, it is concluded that the 304 stainless steel mesh has strong corrosion resistance in the nitric acid below the boiling temperature of ≤ 65%. It also has good corrosion resistance to alkaline solutions and most organic and inorganic acids.
Use of 304 stainless steel mesh:

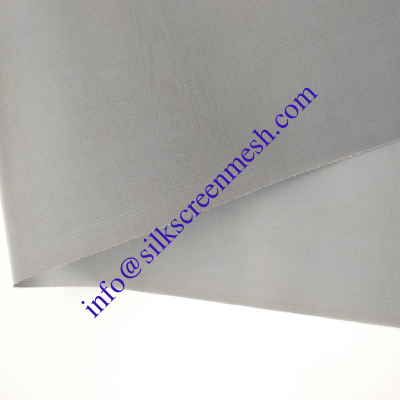

304 stainless steel mesh
304 stainless steel mesh
304 stainless steel mesh is mainly used for screening and filtration under acid and alkali environmental conditions, and also in mining, chemical, food, pharmaceutical and other industries.
| Filter number | Number of meshes (diameter x latitude) | Wire diameter ((diameter x latitude) (um)) |
Aperture (um) |
Weight per square meter (kg) |
| 32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
| 40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
| 48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
| 55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
| 76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
| 80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
| 95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
| 100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
| 120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
| 140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
| 160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.4 |
| 180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
| 200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
| 220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
| 240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
| 280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
| 280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
| 300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
| 315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
| 315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | - |
| 315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | - |
| 320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
| 354# | 90 x 550 | 0.12mm x 0.05 | - | - |
| 360# | 91 x 787 | 0.10mm x 0.07 | 25 | 1.24 |
| 400# | 101 x 900 | 0.10mm x 0.063 | 20 | 1.22 |
| 472# | 120 x 400 | 0.10mm x 0.075 | - | - |
| 500# | 127 x 1100 | 0.07mm x 0.05 | 17 | 0.81 |
| 630# | 160 x 1500 | 0.063mm x 0.04 | 15 | 0.62 |
| 650#(1) | 165 x 400 | 0.071mm x 0.06 | - | - |
| 650#(2) | 165 x 600 | 0.071mm x 0.05 | - | - |
| 650#(3) | 165 x 800 | 0.071mm x 0.05 | 25 | - |
| 650#(4) | 165 x 1100 | 0.071mm x 0.045 | - | - |
| 650#(5) | 165 x 1400 | 0.071mm x 0.04 | 16 | 0.76 |
| 685# | 174 x 1700 | 0.063mm x 0.032 | 13 | 0.61 |
| 787#(1) | 200 x 600 | 0.071mm x 0.06 | - | - |
| 787#(2) | 200 x 800 | 0.071mm x 0.06 | - | - |
| 787#(3) | 200 x 1400 | 0.071mm x 0.04 | 12 | 0.8 |
| 795# | 202 x 1760 | 0.05mm x 0.032 | 10 | 0.6 |
| 850# | 216 x 1860 | 0.045mm x 0.030 | 9 | - |
| 1000# | 254 x 2000 | 0.04mm x 0.028 | 8 | 0.5 |
| 1125# | 285 x 2235 | 0.036mm x 0.025 | 7 | - |
| 1228# | 312 x 2100 | 0.035mm x 0.025 | - | - |
| 1250# | 318 x 2235 | 0.036mm x 0.025 | - | - |
| 1280# | 325 x 2300 | 0.035mm x 0.025 | 5 | 0.45 |
| 1575# | 400 x 3100 | 0.035mm x 0.019 | 3 | - |
| Width: 1-1.6m | ||||
