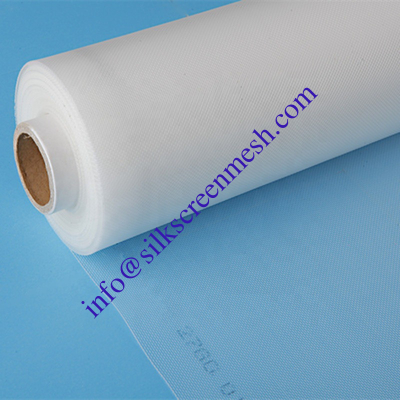

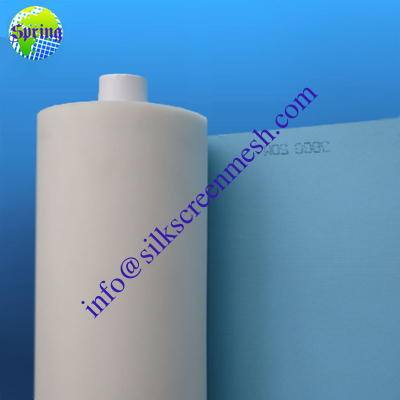

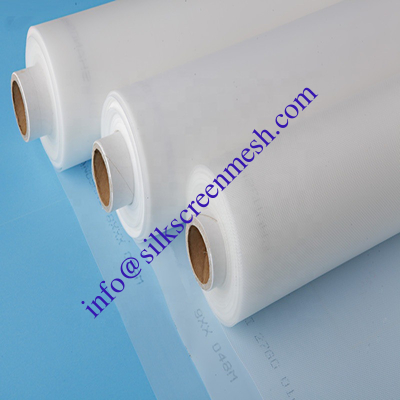

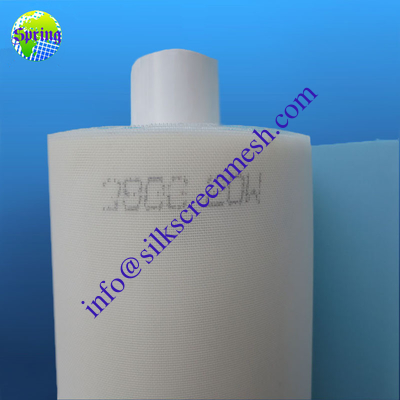

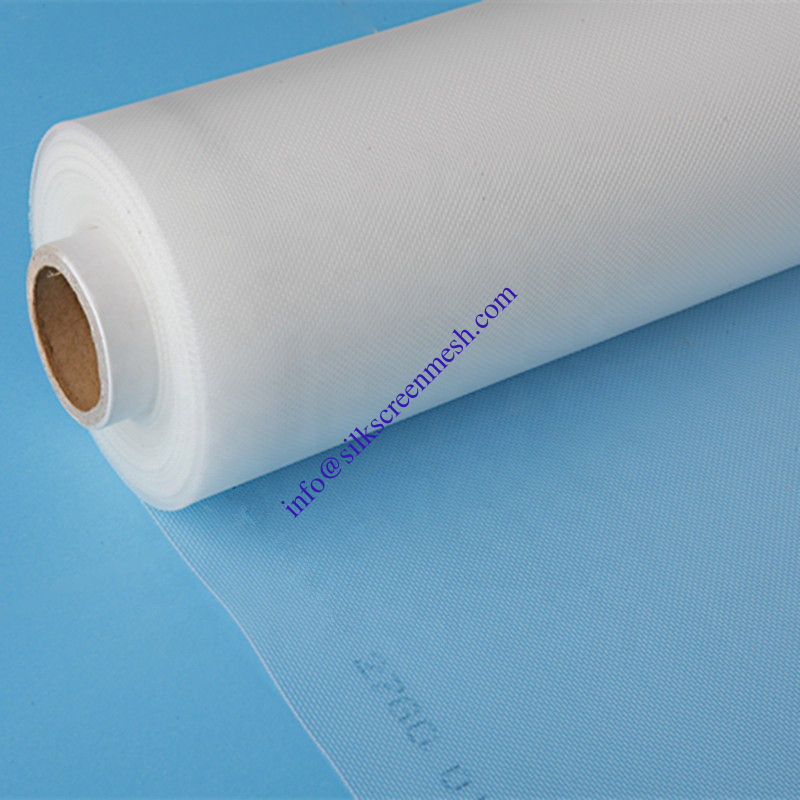

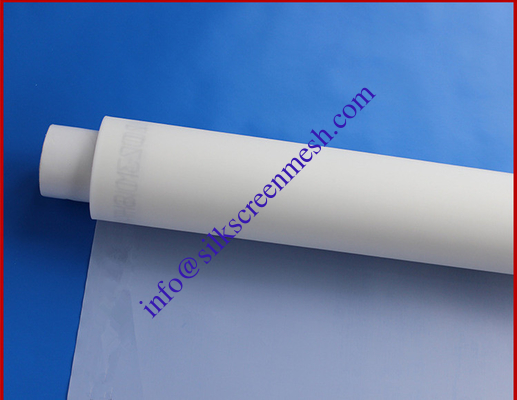

10-74GG nylon flour mesh, flour filter mesh, flour screen,3-17XXX food grade flour sieve
Place of Origin | shanghai China |
---|---|
Brand Name | SPRING |
Certification | ISO9001 |
Model Number | JPP |
Minimum Order Quantity | 30M |
Price | www.silkscreenmesh.com |
Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time | 2-5 Days |
Payment Terms | TT/LC/Western Union/paypal/others |
Supply Ability | 5500000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Material | Nylon | Weaving Method | Plain Weave |
---|---|---|---|
Performance | Acid Resistance, Low Temperature Resistance, High Temperature Resistance, Alkali Resistance | Scope Of Application | Flour Machine, Grain, Oil And Food, Screening Machine |
Wide | 42 '' 50 '' 65 '' 68 '' 72 '' 80 '' Customizable (m) | Monofilament Diameter | 0.1-0.55 (mm) |
Mesh | 3-17XXX, 10GG-74GG (mesh / Inch) | Applicable Object | Flour Sieve, Wheat |
Type | Efficient | Model | GG, XX, XXX |
Product Description
[Characteristics of Nylon Mesh]: Non-toxic, odorless, tasteless, high strength, large elongation, excellent elasticity. It has the characteristics of high toughness, good elasticity, weak acid resistance, oil resistance, alkali resistance, abrasion resistance, temperature resistance, etc. It also has good insulation properties and low lubrication coefficient. Its application range is very wide.
[Nylon mesh application]: flour filtration, liquid filtration, powder filtration, petroleum, mining, pharmaceutical, chemical plant, paint, ink, oil product filtration, alcohol filtration, paint filtration, dye filtration, resin, monosodium glutamate, fishery, impurities Filter, food and other industrial screens and filters are used in a wide range of applications.
GG series
XXX series
Further processed products
GG specifications
Type | Mesh Count (/cm) |
Mesh Count (/inch) |
Wire Diameter (um) |
Mesh Opening (um) |
Open Area (%) |
PA-10GG | 4.25 | 11 | 500 | 1920 | 64 |
PA-12GG | 4.5 | 11 | 500 | 1800 | 61 |
PA-14GG | 5 | 13 | 450 | 1560 | 61 |
PA-15GG | 5.5 | 14 | 400 | 1450 | 62 |
PA-16GG | 6 | 15 | 400 | 1320 | 56 |
PA-18GG | 6.5 | 17 | 400 | 1170 | 55 |
PA-19GG | 7 | 17.8 | 350 | 1080 | 57 |
PA-20GG | 7.5 | 19 | 325 | 1030 | 57 |
PA-22GG | 8 | 20 | 300 | 950 | 58 |
PA-23GG | 8.3 | 21 | 300 | 900 | 56 |
PA-24GG | 9 | 23 | 280 | 830 | 55 |
PA-26GG | 9.5 | 24 | 280 | 790 | 54 |
PA-27GG | 10.5 | 27 | 250 | 730 | 55 |
PA-28GG | 10.75 | 27 | 250 | 700 | 54 |
PA-30GG | 11 | 28 | 250 | 660 | 52 |
PA-31GG | 11.5 | 29 | 250 | 630 | 51 |
PA-32GG | 12 | 30 | 250 | 600 | 50 |
PA-34GG | 13 | 33 | 225 | 560 | 51 |
PA-36GG | 13.5 | 34 | 225 | 530 | 49 |
PA-38GG | 14 | 36 | 225 | 500 | 47 |
PA-40GG | 15 | 38 | 195 | 475 | 49 |
PA-42GG | 16 | 41 | 195 | 440 | 46 |
PA-44GG | 16.5 | 42 | 195 | 420 | 46 |
PA-45GG | 17 | 43 | 195 | 400 | 46 |
PA-47GG | 18 | 46 | 180 | 375 | 43 |
PA-48GG | 18 | 46 | 195 | 365 | 43 |
PA-50GG | 20 | 51 | 150 | 355 | 51 |
PA-52GG | 21 | 53 | 150 | 335 | 49 |
PA-54GG | 22 | 56 | 150 | 310 | 47 |
PA-58GG | 23 | 58 | 140 | 300 | 46 |
PA-60GG | 24 | 61 | 140 | 280 | 43 |
PA-62GG | 24 | 61 | 150 | 270 | 41 |
PA-64GG | 26 | 66 | 120 | 265 | 47 |
PA-66GG | 27 | 69 | 120 | 255 | 46 |
PA-68GG | 27.5 | 70 | 120 | 245 | 43 |
PA-70GG | 28 | 71 | 120 | 240 | 44 |
PA-72GG | 29 | 74 | 120 | 225 | 42 |
PA-74GG | 30 | 76 | 120 | 212 | 40 |
XXX specifications
Type | Mesh Count (/cm) |
Mesh Count (/inch) |
Wire Diameter (um) |
Mesh Opening (um) | Open Area (%) |
PA-3XXX | 23 | 58 | 140 | 300 | 46 |
PA-4XXX | 24 | 61 | 140 | 280 | 43 |
PA-5XXX | 27 | 69 | 120 | 255 | 46 |
PA-6XXX | 30 | 76 | 120 | 212 | 40 |
PA-7XXX | 31 | 79 | 120 | 200 | 39 |
PA-8XXX | 36 | 91 | 100 | 180 | 43 |
PA-8.5XXX | 38 | 97 | 100 | 160 | 37 |
PA-9XXX | 41 | 104 | 90 | 155 | 39 |
PA-9.5XXX | 43 | 109 | 90 | 140 | 36 |
PA-10XXX | 46 | 117 | 80 | 135 | 39 |
PA-10.5XXX | 49 | 124 | 80 | 125 | 38 |
PA-11XXX | 51 | 130 | 80 | 115 | 35 |
PA-12XXX | 55 | 140 | 70 | 115 | 37 |
PA-12.5XXX | 55 | 140 | 80 | 105 | 32 |
PA-13XXX | 57 | 145 | 70 | 100 | 32 |
PA-14XXX | 62 | 157 | 70 | 90 | 30 |
PA-14.5XXX | 66 | 168 | 61 | 90 | 35 |
PA-17XXX | 71 | 180 | 61 | 80 | 32 |
XX specifications
Type | Mesh Count | Wire Diameter | Mesh opening | Open Area | ||
(/cm) | (/inch) | Warp(/um) | Weft(/um) | (um) | (%) | |
PET-6XX | 32/34 | 76/86 | 80+64*2 | 80 | 209 | 49 |
PET-7XX | 33/36 | 84/91 | 80+64*2 | 80 | 199 | 47 |
PET-8XX | 36/40 | 91/102 | 80+64*2 | 70 | 174 | 45 |
PET-9XX | 43/48 | 109/22 | 70+48*2 | 64 | 150 | 45 |
PET-10XX | 49/52 | 124/132 | 64+40*2 | 64 | 132 | 43 |
PET-11XX | 53/60 | 135/152 | 64+40*2 | 48 | 117 | 44 |
PET-12XX | 55/63 | 140/160 | 64+40*2 | 48 | 110 | 42 |
PET-13XX | 58/68 | 147/173 | 64+40*2 | 48 | 100 | 39 |
PET-14XX | 62/69 | 157/175 | 48+40*2 | 48 | 97 | 40 |
PET-15XX | 65/74 | 165/188 | 48+40*2 | 48 | 90 | 38 |
