polyeter filter mesh screen china export

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001
Model Number JPP
Minimum Order Quantity 30m
Price www.springscreenmesh.com
Packaging Details Paper tube, plastic bag, carton box, sailcloth
Delivery Time 2-5 Days
Payment Terms TT/LC/Western Union/paypal/others
Supply Ability 5500000m/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Filter Felt Usage Liquid Filter
Material Nylon
Leave a Message
Product Description

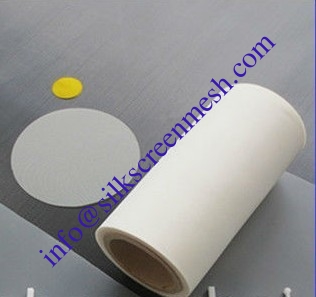

Filter mesh screen
1.Introduction:
  Filter Mesh for Water Filtering 70um,100um,150um,200um
(bolting mesh, DMP Screen printing mesh, DMP printing mesh, DPP printing mesh)
2. Specifications:
1)Material:100% polyester (Nylon available upon request)
2)Weaving: Plain weave (Twill weave available upon request)
3)Specs:8T~165T mesh/cm  (20mesh/inch~420mesh/inch)
4)Max. Width:365cm (143")
5)Color: white and yellow (available upon request)
We can provide products in special specifications according to your demand.
3.Features & Advantages:
1)High durability and best tensility: all threads are the best domestic or imported.
2)Nice appearance, standard size: all are imported worldly advanced production lines from Switzerland.
4. Application:
Filter scope:  Widely used in filtering for eaxmple  , water filtering in food class, blood filtering in medical class
 Flour milling filtering in food class, Powder Coating filtering in industry:
 FDA  SGS ISO certificate
Specifications widely uesd in powder coating filtering 70um,100um ,150um,200um,250um,300um,400um,600um,800um micro filter cloth.
Printing scope:
 textile printing and dyeing, printing plate, electronic printing, ceramics, glass printing and other industries.

Nylon/PolyesterFilter  Mesh

Model

Specification   (/cm)

Mesh   count (mesh/inch)

Thread   Diameter     (um)

Mesh   opening(um)

Open   Area(%)

Thickness(um)

Theoretic   Ink Volume (cm3/m2)

PET36/169

36

90

100

169

39

170

66

PET39/168

39

99

80

168

45

136

62

PET39/149

39

99

100

149

35

170

60

PET43/145

43

110

80

145

41

136

56

PET47/135

47

120

71

135

42

121

51

PET51/119

51

130

71

119

39

121

47

PET53/112

53

135

71

112

37

121

45

PET100/51

100

250

40

51

30

85

26

PET110/48

110

280

34

48

33

58

19

PET110/43

110

280

40

43

26

68

18

PET120/44

120

305

31

44

33

53

18

PET120/42

120

300

34

42

29

58

17

PET120/37

120

300

40

37

18

68

13

PET130/31

130

330

40

31

17

68

12

PET130/36

130

330

34

36

26

58

15

PET140/34

140

350

31

34

25

53

13

PET140/32

140

350

34

32

19

58

11

PET150/34

150

380

27

34

30

46

14

PET150/31

150

380

30

31

23

51

12

PET150/28

150

380

34

28

16

58

9

PET165/29

165

420

27

29

22

46

10

PET165/25

165

420

31

25

16

53

8

Remark:The above   are theoretic data for reference only.Thickness error range±5% ;Mesh   Opening & Open Area & Theoretic Ink Volume only slight error   according to actual data.
