filtering mesh
Place of Origin | Shanghai China |
---|---|
Brand Name | SPRING |
Certification | ISO9001 |
Model Number | JPP |
Minimum Order Quantity | 30m |
Price | US $ 0.25 - 1.5 / m |
Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time | 2-5 Days |
Payment Terms | TT/LC/Western Union/paypal/others |
Supply Ability | 1000000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFilter Rating | 75%-99% | Thickness | 0.05mm |
---|---|---|---|
Length | 30m-70m | Width | 0.6-3.65m |
Usage | Liquid Filter | Type | Filter Disc |
Material | Nylon | Hole Shape | Square |
Specifications
1.reliable mechanical resistance, high elasticity;
2.corrosion resistance
3.low density, light weight
4.wear resistance

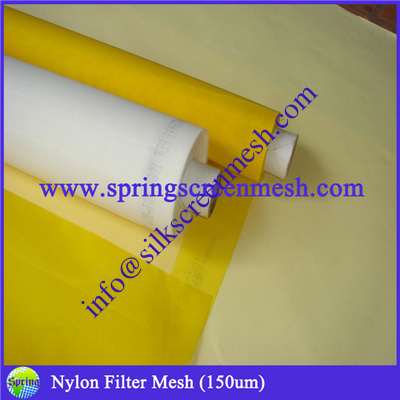

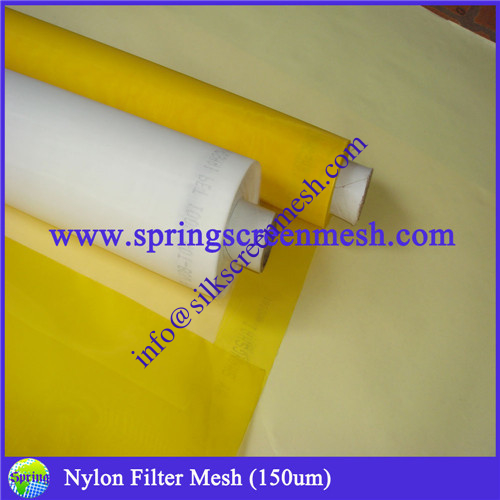

Nylon Filter Mesh
Features:
The medical 15 micron nylon liquid medicine filter net developed and manufactured by our company independently is the filtering material of disposable transfusion set,mainly used to filter the indissoluble particals which diameter is bigger than the nominal mesh opening in the liquid medicine.This products fills the gap of the filed in China.All properities have reached the national standard by inspection of authorities.
• High filtering rate:the filtering rate of 20μm±1μm indissoluble partical in the liquid medicine is 85%-99%(Exceed 80% of national standard)
• High volecity of flow:the NaCl solution (ρ(NaCl)=9g/l) should not less than 1400 ml within 10min under 1m static pressure head.
• Stable velocity of flow:20±1 drops/min,160ml/3h.
Chemical properties:
• Ultraviolet absorbency(250-320mm):≤0.1
• Fluorescent substance:non fluorescent substance
• Evaporation residue(mg):non evaporation residue
Biologic properties:
• Heat source:the interior toxicity in bacteria≤0.5Eu/ml
• Hematolysis:hematolysis rate≤0.8%
• Acute general toxicity:no reaction of acute general toxicity
• Intracutaneous irritation: no reaction of intracutaneous irritation
• Sensitization of skin: no reaction of sensitization of skin
Main Parameters:
material |
nylon |
polyester |
silk |
tensity strength (kg/mm2) |
41-67 |
45-75 |
36-45 |
elongation (%) |
20-35 |
15-30 |
15-25 |
resiliency (3%) |
95-100% |
90-95% |
54-55% |
temperature (Celsius) |
100 |
140 |
100 |
water absorption (relative humidity 65%,20 ) |
3.8% |
0.4% |
11% |
resistance to corrosion |
good |
good |
great |
mass specific resistance (/cmg) |
4.1*10e |
2*15e |
great |
