Flour milling mesh /XX & XXX & GG Flour Mesh

Place of Origin Shanghai China
Brand Name SPRING
Certification ISO9001,ISO14001,FDA,SGS
Model Number PA66
Minimum Order Quantity 30M
Price 0.5-9
Packaging Details paper tube, label card, plastic bag, carton box, waterproof film
Delivery Time 2-5days according to the order
Payment Terms T/T, L/C, West Union, Paypal, etc
Supply Ability 500000m per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materil Nylon Color White
Width 0.1m-3.7m Weave Type Plain
Roll Length 30-60 M/roll Free Sample Accepted
HS Code 5911200090 Filter Rating 17%-49%
Usage Flour Filter Thickness 46-620um
Hole Shape Square Delivery By Air Or By Sea
Leave a Message
Product Description

Product Description

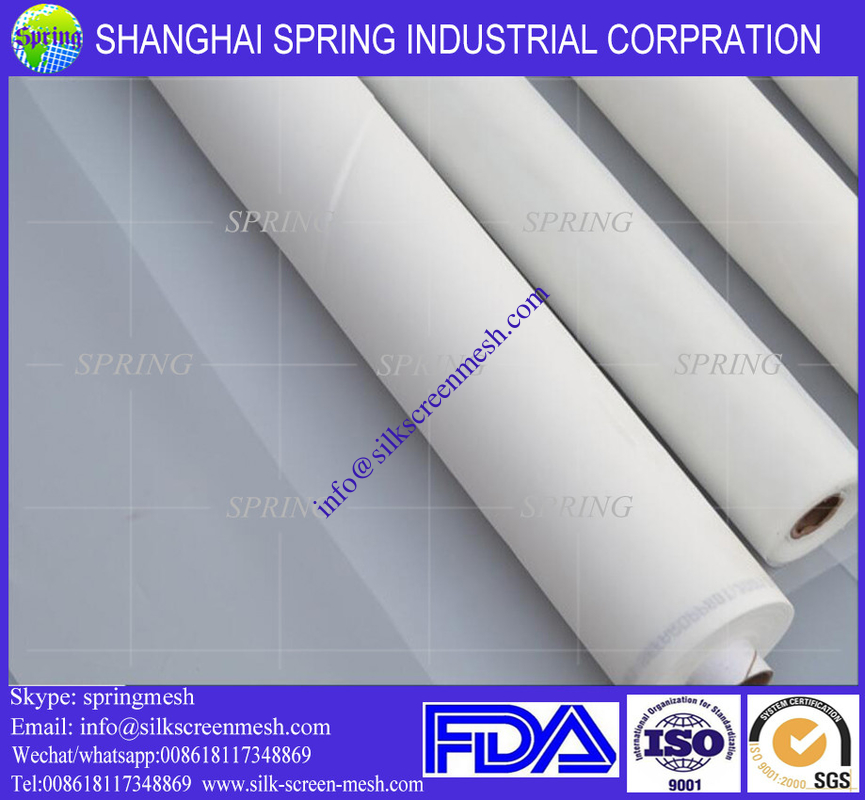

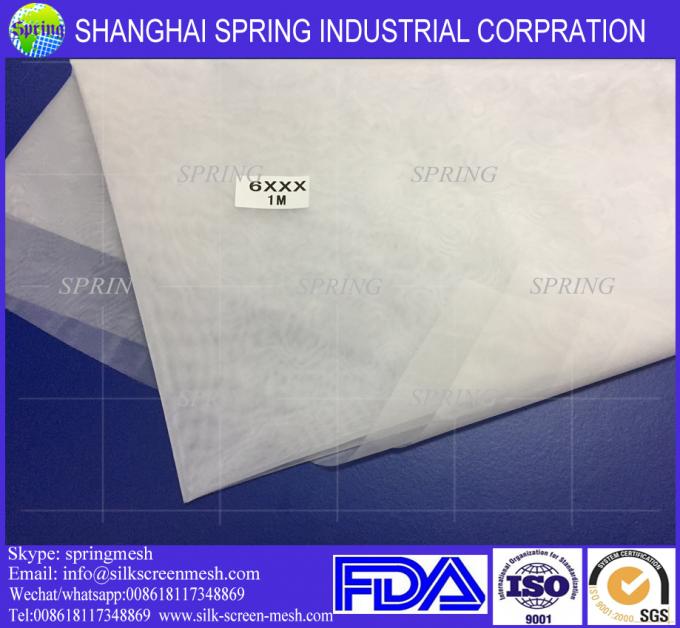

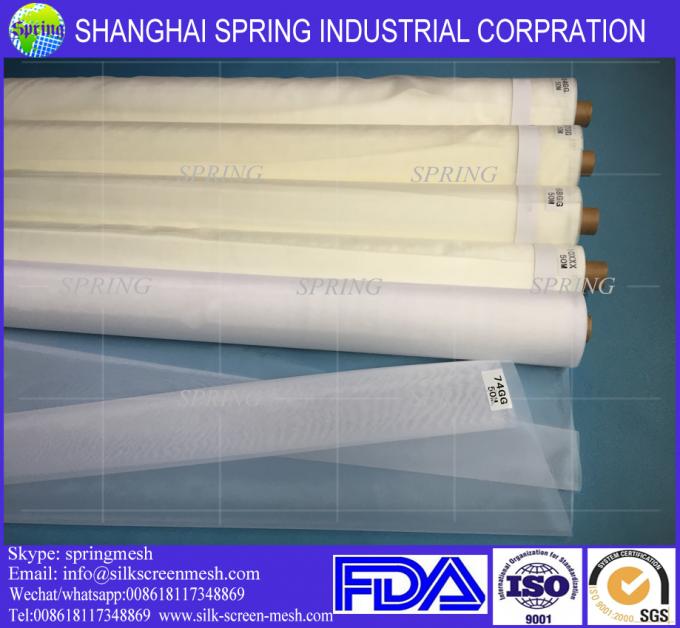

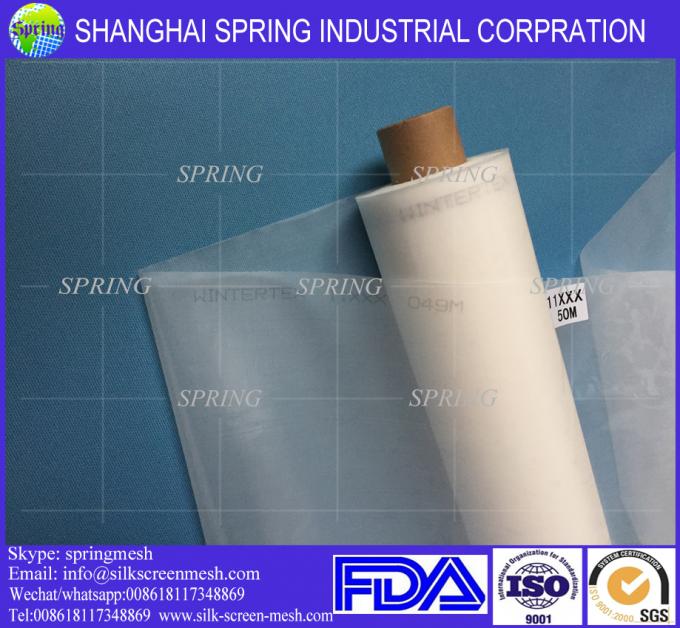

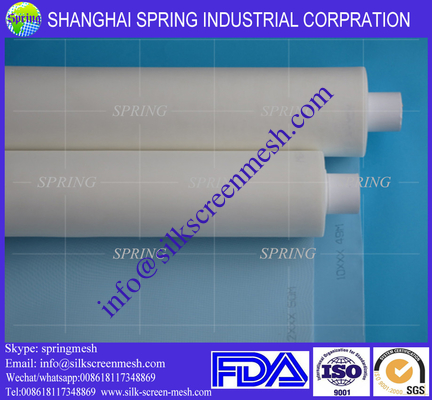

Flour milling mesh /XX & XXX & GG Flour Mesh

SPRING nylon flour mesh is very popular to the milling factories from US, Europe, Southeast areas and South America areas. SPRING can provide you all the specifications and width under good quality and low price. All the Nylon flour mesh XXX series can meet FDA standards.

Flour milling mesh /XX & XXX & GG Flour Mesh 0



Flour milling mesh /XX & XXX & GG Flour Mesh 1

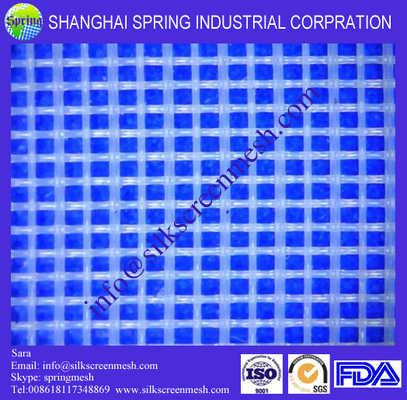

Detailed Images

Specification:

1) Series: GG, XX, XXX, FM, PDM, etc.

2) Material: PA6 and PA66

3) Width: 100CM, 115CM, 127Cm, 158CM,260CM,280CM,305CM,330CM,370CM etc

Flour milling mesh /XX & XXX & GG Flour Mesh 2
Applications:

Nylon flour mesh is avaliable in standard and food grade for food, chemicals, medical and automotive paint applications.

Flour milling mesh /XX & XXX & GG Flour Mesh 3

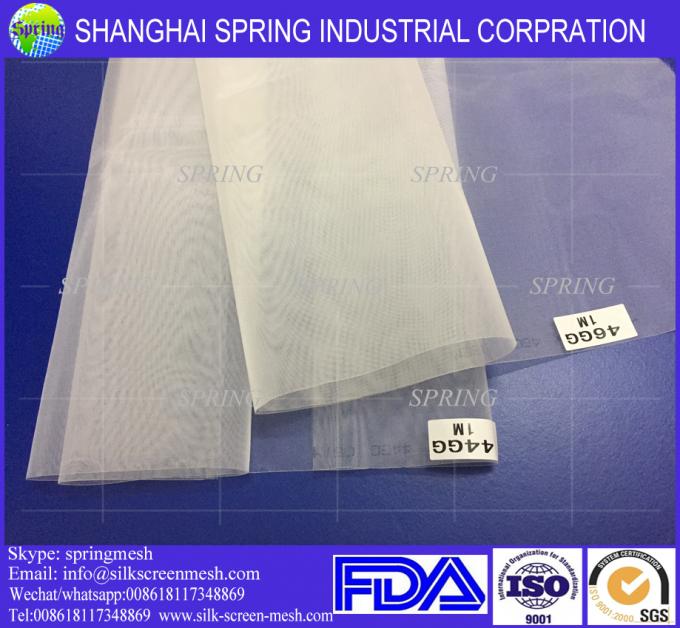

PA/ PET- GG
It mainly used in coarse sieve and peeling. It' s no doubt that nylon GG can replace the metal steel mesh with better elasticity, the abrasion resistance of nylon is better than polyester, and its self-restorability is also much better than steel mesh.

Flour milling mesh /XX & XXX & GG Flour Mesh 4

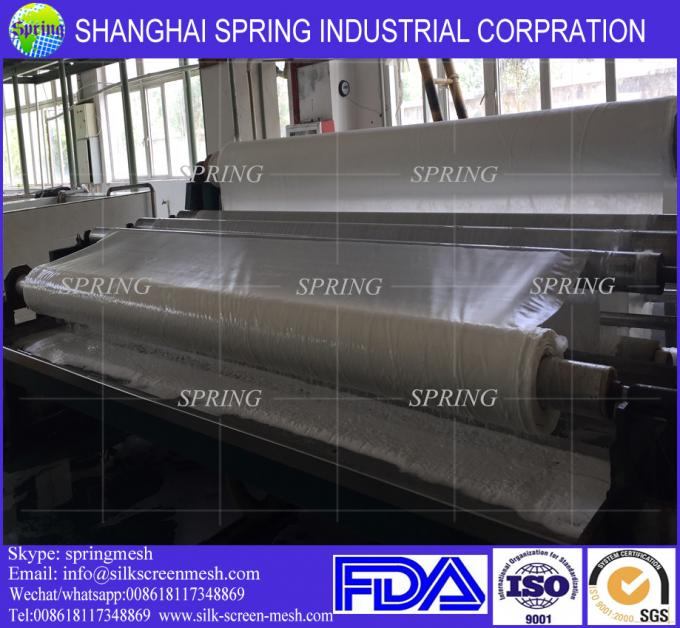

Factory Show

Flour milling mesh /XX & XXX & GG Flour Mesh 5

Package and Shipping

1): Folding the mesh with pvc bag and then put into carton. Suit for little order quantity.

2): Rolling the mesh with paper tube and then put into carton. Suit for large order quantity.Suitable for large quantity and the mesh has better surface than folding type.Usually a carton can load 50-70kg.

Our Service

Our capability

We have 3 factories, products range has covered all the common wire mesh products in the markets, offering you one-stop shopping experience, and production time is shorter than most factories.

Flour milling mesh /XX & XXX & GG Flour Mesh

Flour Milling Mesh
Type

Mesh Count

(/cm)

Mesh Count

(/inch)

Thread Diameter

(/um)

Mesh Opening

(um)

Open Area

(%)

Thickness

(um)

PA-12GG 4.5 11.4 400 1822 67 760
PA-14GG 5 12.7 400 1600 64 770
PA-15GG 5.5 14 400 1418 61 780
PA-16GG 6 15.2 350 1317 62 665
PA-18GG 6.5 16.5 350 1188 59 670
PA-19GG 7 17.8 350 1079 57 675
PA-20GG 7.5 19 300 1033 60 560
PA-22GG 8 20.3 300 950 58 560
PA-24GG 8.5 21.6 300 876 56 565
PA-26GG 9 22.9 300 811 54 570
PA-27GG 10 25.4 250 750 56 475
PA-28GG 10.5 26.7 250 702 54 475
PA-30GG 11 28 250 659 53 480
PA-31GG 11.5 29.2 250 620 51 485
PA-32GG 11.9 30.2 250 590 49 490
PA-34GG 12 30.5 250 583 49 490
PA-36GG 12.5 31.8 250 550 47 490
PA-38GG 14 35.6 200 514 52 360
PA-40GG 14.5 36.8 200 489 50 365
PA-42GG 15 38.1 200 466 49 365
PA-44GG 16 40.6 200 425 46 370
PA-45GG 16.8 42.7 180 400 47 375
PA-47GG 17.5 44.5 180 375 47 375
PA-50GG 18 45.7 200 355 41 380
PA-52GG 20.5 52.1 150 338 48 270
PA-54GG 21.5 54.6 150 315 46 275
PA-58GG 22 55.9 150 304 45 275
PA-60GG 23 58.4 150 285 43 280
PA-62GG 23.5 59.8 150 275 42 285
PA-64GG 24 61 150 267 41 285
PA-66GG 28.5 72.4 100 251 51 163
PA-68GG 29 73.7 100 245 50 165
PA-70GG 29.5 74.9 100 239 48 166
PA-72GG 30.5 77.5 100 227 47 168
PA-74GG 32 81.3 100 213 46 170
