Nylon Flour Mesh Supplier
| Place of Origin | Shanghai China |
|---|---|
| Brand Name | SPRING |
| Certification | ISO9001 |
| Model Number | XX & XXX & GG |
| Minimum Order Quantity | 30m |
| Price | www.springscreenmesh.com |
| Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
| Delivery Time | 3-5 days |
| Payment Terms | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
| Supply Ability | 5000000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Filter Rating | 57-96% | Thickness | 0.1mm |
|---|---|---|---|
| Length | 30-70m | Width | 0.6-1.65m |
| Usage | Solid Filter | Type | Filter Elements |
| Material | Nylon | Hole Shape | Square |
Product Description

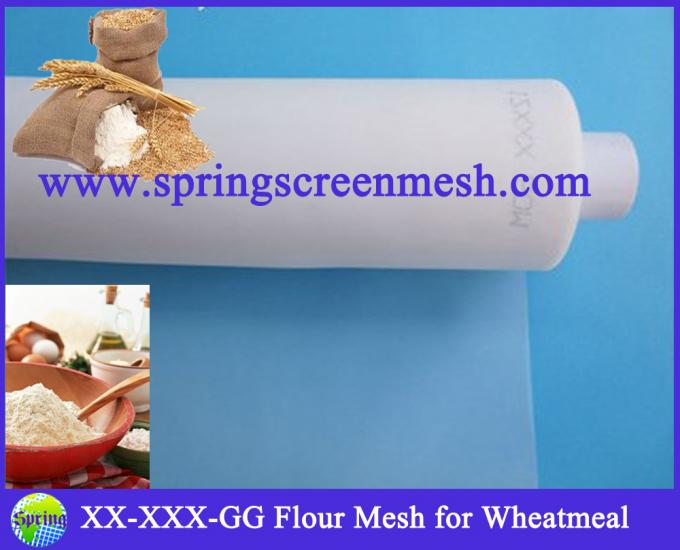

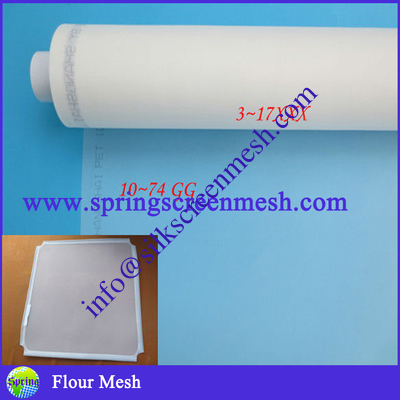

Nylon Flour Mesh
Nylon flour mesh used in food filtration and other industry filter.
For example:GG and xxx series flour mesh.
Nylon Flour Mesh Features & Applications :
Filtration rates is from 30% to 85%. Width: 65cm-360cm
Length is from 30-70 meters /roll.
Specifications are very exact ,long service life.
The flour mesh has been brushed, so it is more flexible and thicker,the dedusting efficiency can reach 95%.
Nylon Flour Mesh Introduction:
Our XX, XXX and GG Series Flour Mesh are with high extraction, and quality can meet to FDA standard, can be used for Ultra fine flour milling. Including nylon and polyester materials, standard width127cm/145cm/165cm, also can be made as Your request.
XX Series: For soft wheat and rye
XXX Series: For medium to hard wheat and high capacity sifters
GG Series: Mainly used for gritting gauze for coarse and scalping sieves.
Contact Us:
Sales Maganer: Sara
E-mail: info@silkscreenmesh.com
Skype: springmesh
MSN: springmesh@live.com
Yahoo: springmesh@yahoo.com
Gmail: springscreenmesh@gmail.com
Website: www.springscreenmesh.com
Mob: 86-15721376592
Specifications & Details :
Nylon Flour Mesh Specifications XX Series
|
Specification |
Mesh Opening(um) |
Thread Diameter(um) |
Tram Silk (um) |
Warp/weft (cm) |
Open Area(%) |
|
|
3xx |
300 |
100+2*60 |
100 |
24.0/25.0 |
54 |
|
|
4xx |
280 |
100+2*60 |
100 |
25.5/26.5 |
53 |
|
|
5xx |
250 |
100+2*60 |
90 |
27.5/29 |
51 |
|
|
6xx |
214 |
90+2*60 |
90 |
32/34 |
49 |
|
|
7xx |
199 |
80+2*60 |
80 |
33/36 |
48 |
|
|
8xx |
181 |
80+2*60 |
70 |
36/40 |
46 |
|
|
8.5xx |
160 |
70+2*60 |
70 |
40/43.5 |
44 |
|
|
9xx |
146 |
70+2*60 |
64 |
43/48 |
44 |
|
|
9.5xx |
140 |
60+2*60 |
60 |
43.0/50.0 |
43 |
|
|
10xx |
130 |
60+2*50 |
64 |
49/52 |
44 |
|
|
10.5xx |
125 |
60+2*50 |
60 |
48.5/54.0 |
40 |
|
|
11xx |
120 |
60+2*50 |
48 |
53/60 |
42 |
|
|
12xx |
112 |
60+2*50 |
48 |
55/63 |
40 |
|
|
12.5xx |
106 |
60+2*43 |
48 |
56.0/64.0 |
40 |
|
|
13xx |
100 |
60+2*50 |
48 |
58/68 |
58 |
|
|
14.5xx |
90 |
50+2*43 |
50 |
62.5/71.5 |
37 |
|
|
15xx |
88 |
50+2*43 |
48 |
65/74 |
34 |
|
|
17xx |
80 |
50+2*43 |
43 |
68.0/81.0 |
35 |
|
|
20xx |
75 |
50+2*43 |
43 |
70.0/84.7 |
34 |
|
|
21xx |
71 |
50+2*43 |
43 |
74.0/87.7 |
33 |
|
|
25xx |
63 |
43+2*43 |
43 |
78.0/94.0 |
30 |
|
|
Remark:The above data is theoretical and for your reference only. |
||||||
Nylon Flour Mesh Specifications XXX Series
|
Specification |
Mesh Opening(um) |
Thread Diameter (um) |
Thickness |
Mesh Count |
Open Area(%) |
|
|
3xxx |
301 |
140 |
22.7 |
57.6 |
47 |
|
|
4xxx |
280 |
140 |
23.8 |
60.5 |
44 |
|
|
5xxx |
257 |
120 |
26.5 |
67.3 |
47 |
|
|
6xxx |
213 |
120 |
30 |
76.2 |
41 |
|
|
7xxx |
203 |
120 |
31 |
78.7 |
39 |
|
|
8xxx |
182 |
100 |
35.5 |
90.2 |
42 |
|
|
8.5xxx |
163 |
100 |
38 |
96.5 |
38 |
|
|
9xxx |
154 |
90 |
41 |
104.1 |
40 |
|
|
9.5xxx |
143 |
90 |
43 |
109.2 |
38 |
|
|
10xxx |
133 |
80 |
47 |
119.4 |
39 |
|
|
10.5xxx |
124 |
80 |
49 |
124.5 |
37 |
|
|
11xxx |
120 |
80 |
50 |
127.0 |
36 |
|
|
12xxx |
112 |
70 |
55 |
139.7 |
38 |
|
|
12.5xxx |
105 |
70 |
57 |
144.8 |
36 |
|
|
13xxx |
99 |
70 |
59 |
149.9 |
34 |
|
|
14xxx |
97 |
70 |
60 |
152.4 |
34 |
|
|
15xxx |
92 |
60 |
66 |
167.6 |
36 |
|
|
15.5xxx |
89 |
60 |
67 |
170.2 |
36 |
|
|
16xxx |
95 |
50 |
69 |
175.3 |
43 |
|
|
17xxx |
91 |
50 |
71 |
180.3 |
42 |
|
|
Remark:The above data is theoretical and for your reference only. |
||||||
Nylon Flour Mesh Specifications GG
|
Specification |
Mesh Opening |
Thread Diameter (um) |
Base (cm) |
Mesh count (/inch) |
Open Area(%) |
Square Meter /g |
|
|
10GG |
2000 |
550 |
3.9 |
9.9 |
61.5 |
237.3 |
|
|
12GG |
1800 |
450 |
4.4 |
11.2 |
64 |
180 |
|
|
14GG |
1600 |
400 |
5 |
12.7 |
64 |
177.8 |
|
|
15GG |
1400 |
400 |
5.6 |
14.2 |
60.5 |
197.5 |
|
|
16GG |
1300 |
350 |
6.1 |
15.5 |
62.1 |
165 |
|
|
18GG |
1188 |
350 |
6.5 |
16.5 |
59.7 |
177 |
|
|
19GG |
1080 |
350 |
7 |
17.8 |
57 |
190.4 |
|
|
20GG |
1000 |
300 |
7.7 |
19.6 |
59.2 |
153.8 |
|
|
22GG |
950 |
300 |
8 |
20.3 |
57.8 |
160 |
|
|
24GG |
850 |
300 |
8.7 |
22.1 |
54.6 |
173.9 |
|
|
26GG |
800 |
300 |
9.1 |
23.1 |
52.9 |
181.8 |
|
|
27GG |
750 |
250 |
10 |
25.4 |
56.3 |
138.9 |
|
|
28GG |
710 |
250 |
10.4 |
26.4 |
54.7 |
144.7 |
|
|
30GG |
670 |
250 |
10.9 |
27.7 |
53 |
151 |
|
|
31GG |
610 |
250 |
11.6 |
29.5 |
50.3 |
161.5 |
|
|
32GG |
600 |
250 |
11.8 |
30.0 |
49.8 |
163.4 |
|
|
34GG |
560 |
220 |
12.8 |
32.5 |
51.5 |
137.9 |
|
|
36GG |
530 |
220 |
13.3 |
33.8 |
49.9 |
143.4 |
|
|
38GG |
500 |
220 |
13.9 |
35.3 |
48.2 |
149.4 |
|
|
40GG |
475 |
200 |
14.8 |
37.6 |
49.5 |
131.7 |
|
|
42GG |
450 |
200 |
15.4 |
39.1 |
47.9 |
136.8 |
|
|
44GG |
425 |
200 |
16 |
40.6 |
46.2 |
142.2 |
|
|
45GG |
400 |
180 |
17.2 |
43.7 |
47.6 |
124.1 |
|
|
47GG |
375 |
180 |
18 |
45.7 |
45.7 |
129.7 |
|
|
50GG |
355 |
150 |
19.8 |
50.3 |
49.4 |
99 |
|
|
52GG |
335 |
150 |
20.6 |
52.3 |
47.7 |
103.1 |
|
|
54GG |
315 |
150 |
21.5 |
54.6 |
45.9 |
107.5 |
|
|
56GG |
308 |
150 |
21.8 |
55.4 |
45.2 |
109.2 |
|
|
58GG |
300 |
150 |
22.2 |
56.4 |
44.4 |
111.1 |
|
|
60GG |
280 |
150 |
23.3 |
59.2 |
42.4 |
116.3 |
|
|
62GG |
275 |
150 |
23.5 |
59.7 |
41.9 |
117.6 |
|
|
64GG |
265 |
150 |
24.1 |
61.2 |
40.8 |
120.5 |
|
|
66GG |
250 |
120 |
27 |
68.6 |
45.7 |
86.5 |
|
|
68GG |
243 |
120 |
27.5 |
69.9 |
44.8 |
88.2 |
|
|
70GG |
236 |
120 |
28.1 |
71.4 |
43.9 |
89.9 |
|
|
72GG |
224 |
120 |
29.1 |
73.9 |
42.4 |
93 |
|
|
74GG |
212 |
120 |
30.1 |
76.5 |
40.8 |
96.4 |
|
|
Remark:The above data is theoretical and for your reference only. |
|||||||
