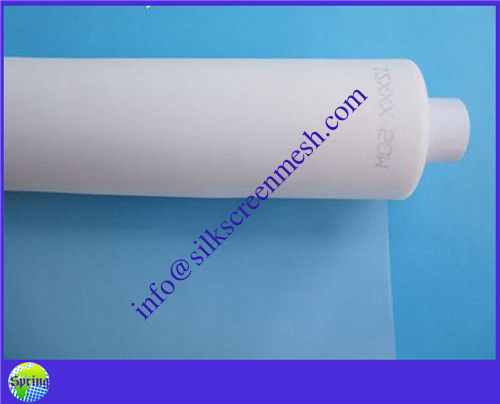

Nylon Flour Sifter Mesh
Place of Origin | Shanghai China |
---|---|
Brand Name | SPRING |
Certification | ISO9001 |
Model Number | GG & XXX |
Minimum Order Quantity | 30m |
Price | www.springscreenmesh.com |
Packaging Details | Paper tube, plastic bag, carton box, sailcloth |
Delivery Time | 3-5 Days |
Payment Terms | L/C, T/T, D/P, Western Union, Paypal, Money Gram |
Supply Ability | 5000000m/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFilter Rating | 75%-95% | Thickness | 0.1mm |
---|---|---|---|
Length | 30m-70m | Width | 0.6-3.65m |
Usage | Solid Filter | Type | Filter Disc |
Material | Nylon | Hole Shape | Square |
Nylon Flour Sifter Mesh
http://www.springscreenmesh.com
Flour Mesh Sieve has been the important auxiliary material of flour mills, although the proportion of investment in the flour mills is very small, but plays a critical role, because the flour is ultimately through the screening, pulverizing process through its grading, screening of powder road balance. Choose good screen, actual is flour mills is one of the key technical indicators. Therefore considered by more and more coal pulverizing workers is to ensure that the flour quality balance, an important factor of stability.
Nylon Flour Sifter Mesh Specifications:
*Material: 100% nylon (polyester available if needed)
*Weaving: Plain weave (Twill weave available if needed)
*6XXX-17XXX; 10GG-74GG
*Max. Width: 365cm (143 inch)
*Color: White
We can provide products in special specifications according to your demand.
Nylon Flour Sifter Mesh Features & advantages:
XX & XXX Series:
With high extraction, and quality can meet to FDA standard.Mesh opening can reach 80micron,can be used for ultra fine flour milling.
Including nylon,polyester and stainless materials,standard width127cm/145cm/165cm,also can be made as your request.
GG Series of Flour Milling Mesh:
Plain weave,mono filament and double filament.Material including polyester and nylon(PA6 and PA66).Widely used in milling industry,such as flour milling, corn milling, and other grains milling.
Nylon Flour Sifter Mesh Application:
Flour Mesh Sieve as one of our mainly products, it is widely used for flour milling machine make a process of grinding and separating, done by roller-mills, sifters and purifiers. Such as flour, com, grain sifter, etc.
Contact Us:
Sales Maganer: Sara
E-mail: info@silkscreenmesh.com
Skype: springmesh
MSN: springmesh@live.com
Yahoo: springmesh@yahoo.com
Gmail: springscreenmesh@gmail.com
Website: www.springscreenmesh.com
Mob: 86-15721376592
Spec. |
Mesh/inch |
Mesh/cm |
Wire Dia.(um) |
Mesh Opening |
Opening Area |
10GG |
10.0 |
3.9 |
550 |
2000 |
61.5 |
12GG |
11.3 |
4.4 |
450 |
1800 |
64.0 |
14GG |
12.7 |
5.0 |
400 |
1600 |
64.0 |
15GG |
14.1 |
5.6 |
400 |
1400 |
60.5 |
16GG |
15.4 |
6.1 |
350 |
1300 |
62.1 |
18GG |
16.5 |
6.5 |
350 |
1188 |
59.7 |
19GG |
17.8 |
7.0 |
350 |
1080 |
57.0 |
20GG |
19.5 |
7.7 |
300 |
1000 |
59.2 |
22GG |
20.3 |
8.0 |
300 |
950 |
57.8 |
24GG |
22.1 |
8.7 |
300 |
850 |
54.6 |
26GG |
23.1 |
9.1 |
300 |
800 |
52.9 |
27GG |
25.4 |
10.0 |
250 |
750 |
56.3 |
28GG |
26.5 |
10.4 |
250 |
710 |
54.7 |
30GG |
27.6 |
10.9 |
250 |
670 |
53.0 |
31GG |
29.5 |
11.6 |
250 |
610 |
50.3 |
32GG |
29.9 |
11.8 |
250 |
600 |
49.8 |
34GG |
32.6 |
12.8 |
220 |
560 |
51.5 |
36GG |
33.9 |
13.3 |
220 |
530 |
49.9 |
38GG |
35.3 |
13.9 |
220 |
500 |
48.2 |
40GG |
37.6 |
14.8 |
200 |
475 |
49.5 |
42GG |
39.1 |
15.4 |
200 |
450 |
47.9 |
44GG |
40.6 |
16.0 |
200 |
425 |
46.2 |
45GG |
43.8 |
17.2 |
180 |
400 |
47.6 |
47GG |
45.8 |
18.0 |
180 |
375 |
45.7 |
50GG |
50.3 |
19.8 |
150 |
355 |
49.4 |
52GG |
52.4 |
20.6 |
150 |
335 |
47.7 |
54GG |
54.6 |
21.5 |
150 |
315 |
45.9 |
56GG |
55.5 |
21.8 |
150 |
308 |
45.2 |
58GG |
56.4 |
22.2 |
150 |
300 |
44.4 |
60GG |
59.1 |
23.3 |
150 |
280 |
42.4 |
62GG |
59.8 |
23.5 |
150 |
275 |
41.9 |
64GG |
61.2 |
24.1 |
150 |
265 |
40.8 |
66GG |
68.6 |
27.0 |
120 |
250 |
45.7 |
68GG |
70.0 |
27.5 |
120 |
243 |
44.8 |
70GG |
71.3 |
28.1 |
120 |
236 |
43.9 |
72GG |
73.8 |
29.1 |
120 |
224 |
42.4 |
74GG |
76.5 |
30.1 |
120 |
212 |
40.8 |
6xxx |
76.2 |
30 |
120 |
213 |
40.96 |
7xxx |
78.7 |
31 |
120 |
203 |
39.44 |
8xxx |
90.2 |
35.5 |
100 |
182 |
41.6 |
8.5xxx |
96.5 |
38 |
100 |
163 |
38.44 |
9xxx |
104.1 |
41 |
90 |
154 |
39.82 |
9.5xxx |
109.2 |
43 |
90 |
143 |
37.58 |
10xxx |
119.4 |
47 |
80 |
133 |
38.94 |
10.5xxx |
124.5 |
49 |
80 |
124 |
36.97 |
11xxx |
127.0 |
50 |
80 |
120 |
36 |
12xxx |
139.7 |
55 |
70 |
112 |
37.82 |
12.5xxx |
144.8 |
57 |
70 |
105 |
36.12 |
13xxx |
149.9 |
59 |
70 |
99 |
34.46 |
14xxx |
152.4 |
60 |
70 |
97 |
33.64 |
15xxx |
167.6 |
66 |
60 |
92 |
36.48 |
16xxx |
175.3 |
69 |
60 |
85 |
34.34 |
17xxx |
180.3 |
71 |
60 |
81 |
32.95 |
